Brand: Bijur Delimon

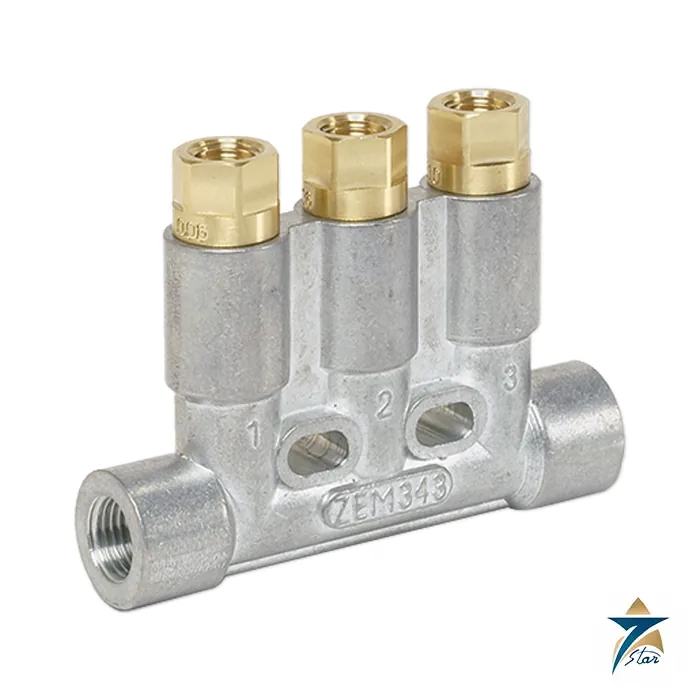

Bijur Delimon ZEM Positive Displacement Injector
Description
Pre-set metered output for each lubrication point
The ZEM series are classic positive displacement injectors (PDI) that deliver precise, controlled lubricant quantities. Each injector is pre-set volumetrically so each point gets the proper amount, avoiding over or under lubrication. As pressure builds in the manifold the piston moves forward and discharges its set volume; when pressure is relieved, a compression spring returns the piston and recharges the injector.
They handle oil and soft greases, offer many output volumes, and a modular design allows different outputs within one manifold. ZEM injectors can be used together with other ZEM series in the same system, and optional push-to-connect fittings cut installation labor.
Technical specifications
| Parameter | Specification |
|---|---|
| Oil viscosity range | 20 to 1500 cSt at operating temperature |
| Lubricant | Soft grease NLGI 000 and 00; oil |
| Operating pressure | Minimum 15 bar (220 psi); maximum 45 bar (650 psi); recommended 21 bar (300 psi) |
| Relieving pressure | 0.7 bar (11 psi) |
| Seals | Viton |
| Outputs, series 32, 33, 34 | 0.01, 0.03, 0.06, 0.1, 0.16 cc |
| Outputs, series 35 | 0.06, 0.1, 0.2, 0.3, 0.4, 0.6 cc |
| Outputs, series 39 | 0.2, 0.3, 0.4, 0.6, 1.0, 1.5 cc |
| Outlet type | C: M8x1 compression for 4 mm tube; P: push-to-connect for 4 mm tube |
| Outlets per injector | 1 (series 32, 33, 35, 39); 2 or 3 (series 34, 35, 39); 5 (series 34, 35) |
Building the part number
ZEM followed by injector series (32, 33, 34, 35 or 39), number of outlets, outlet type (C or P) and a discharge-volume letter for each outlet (A 0.01 cc, B 0.03, C 0.06, D 0.10, E 0.16, F 0.20, S 0.30, G 0.40, H 0.60, I 1.00, J 1.50, X 0.00). The datasheet example ZEM353PDFH is a three-outlet series 35 injector with push-to-connect outlets of 0.1, 0.2 and 0.6 cc. Series 32 and 33 need manifolds or tee fittings, sold separately (tee 22564 and 73462-3443 per the datasheet).
Related Bijur Delimon products in the same range are compared below.
| Product | Type | Key range |
|---|---|---|
| SureFire II | Electric gear pump, 2 to 30 litre | PDI 450 psi / SLR 75 psi |
| MultiPort II | Electric multi-element pump, 3 or 7 litre grease | Up to 250 bar |
| Dynamis Maxx | Mobile electric piston pump, 4 or 8 litre | 160 or 300 bar relief |
| Airmatic | Pneumatic oil pump, 1, 4 or 12 litre | 2 to 10 cc per stroke |
| SureMatic | Pneumatic grease or oil pump, 1 to 5 litre | Up to 100 bar (grease) |
| PVB | Progressive divider valve | 0.20 cc per outlet |
| ZEM | Positive displacement injector | 0.01 to 1.5 cc |
| SMAC-MAX | Multi-mode controller | 110 or 220 VAC |
System requirements
The pump must build 15 bar at the injector for it to fire, and a pressure relief valve must quickly drop line pressure to 0.3 to 0.7 bar between cycles so injectors fully recharge. Compression or push-to-connect outlet fittings are available on all ZEM injectors. PDI-capable pumps in the range include the SureFire II (PDI version) and Airmatic (mode B); see pumps and lubrication equipment. A replacement caps removal and installation instruction (Technical Sheet) is published separately.
Documents and quotation
The manufacturer datasheet (ZEM Injector Datasheet 35135 R6 07/17) is attached to this page as a download. For a quotation, send the lubricant and viscosity or NLGI grade, the number and type of lubrication points, the system type (progressive, injector or single-line), the supply voltage or air pressure, the ambient temperature range and any option letters from the ordering chart. Please confirm the full part number and options against the current manufacturer datasheet before ordering; the data on this page is taken from the datasheet revision named above.
Datasheets & Documents
- Datasheet Bijur Delimon ZEM Injector Datasheet, Series 32, 33, 34, 35, 39 (35135 R6 07/17) Download
Reviews (0)
About brand
Bijur Delimon is a manufacturer of centralized lubrication pumps and systems, headquartered in Raleigh, North Carolina, USA, and part of Timken.
Seven Star LLC is an independent supplier in Muscat. We list Bijur Delimon pumps, divider valves and controllers for machinery and mobile equipment in Oman and the GCC.
Bijur Delimon product series
Pumps include the SureFire II electric lubrication pump, the MultiPort II and Dynamis Maxx mobile progressive grease lubricators, the Airmatic pneumatic oil lubricator and the SureMatic air-operated grease and oil lubricator.
Distribution and control includes the PVB progressive divider valve with 6 to 20 outlets, the ZEM positive displacement injector and the SMAC-MAX multi-mode lubrication controller.
Single-line systems feed oil to points through metering units, while progressive systems such as the PVB divider valves supply grease to many points in sequence and can be monitored. Mobile lubricators like the MultiPort II and Dynamis Maxx are built for vehicles and mobile machines.
Where Bijur Delimon systems are used
Machine tools, presses, conveyors, crushers, mining and construction machines, trucks and other equipment with many lubrication points.
Ordering Bijur Delimon systems: what we need
Send the model, the lubricant (oil or grease and NLGI grade), number of points, supply voltage or air supply, and the reservoir size.
Browse Bijur Delimon products by category: Pumps, Lubrication & Bearing Maintenance.
Related products
Frequently Asked Questions
What are ZEM injectors?
Positive displacement injectors that discharge a fixed pre-set volume per cycle and recharge when pressure is relieved.
What outputs are available?
From 0.01 cc (series 32 to 34) up to 1.5 cc (series 39).
What pressure do they need?
At least 15 bar to actuate; maximum 45 bar; recommended 21 bar.
Can they handle grease?
Soft grease NLGI 000 and 00, and oil from 20 to 1500 cSt.
How many outlets are possible?
One, two, three or five depending on the series.
