Additel ADT762 Automated Hydraulic Pressure Calibrator

Hydraulic calibration to 15,000 psi without a hand pump

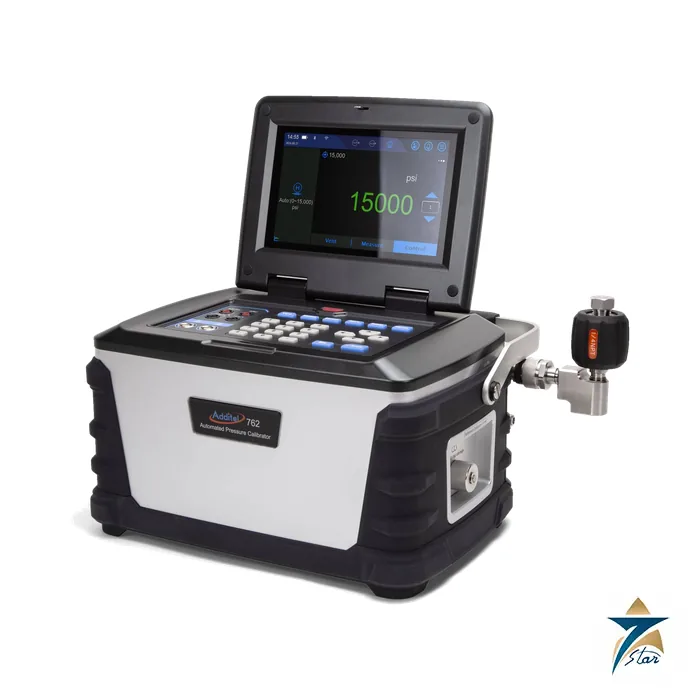

The Additel ADT762 is a fully automated hydraulic calibrator. You set a pressure from the 7 inch touchscreen and the built-in electric pump, controller and reservoir bring the system to the set point and hold it to 0.005% FS control stability, from 100 to 15,000 psi for more than five minutes. It targets the high-pressure work that normally needs a screw press, a reference gauge and a lot of patience: transmitters, switches, dial and digital gauges and sensors, including HART and PROFIBUS devices.

Because the pump, filter, reservoir, documentation and HART tools are all inside one 12.8 kg case, one technician can run an automated test on a pressure transmitter, save the as-found and as-left data and print a report afterwards.

Notable functions

• Dual-range accuracy: the instrument switches between two stored calibrations as the pressure rises, in automatic or manual mode.
• Built-in auto-purge routine that removes air from the hydraulic circuit at the touch of a button.
• Documented task feature for up to 1,000 tasks, with automatic error analysis and test reports.
• Dual-mode HART communication, automatic calibration mode or manual mode, plus a full HART communicator.
• Wi-Fi, LAN, Bluetooth, USB and Ethernet, with ACal, Additel Land and the Link mobile app.

Technical specification

Ordering the correct variant

The code is ADT762-01-GP15K-PSI-N. The accuracy field is 01 (0.01% FS) or 02 (0.02% FS), the range is GP10K or GP15K, the range type is PSI or BAR and the female pressure port is N (1/4 NPT), N2 (1/2 NPT), B (1/4 BSP), B2 (1/2 BSP) or M (M20 x 1.5). Choose GP10K if nothing above 10,000 psi is tested, because its two calibrations (3,000 and 10,000 psi) give better low-end accuracy than the 6,000 / 15,000 psi pair. Large external volumes degrade performance, so keep the connected load at the recommended 50 ml or less.

Setup, purging and care

The manual fills the reservoir through a removable cover: fill the working medium between the Min and Max marks, refit the cover and select the In Use position. Refilling through the injection port with the small metal funnel can only be done before power-on or after shutdown, and the level must not exceed the Max mark. Seal the pressure outlet before running auto-tune. A 500 ml bottle of sebacate oil is included and a one litre bottle 9201 is optional; run the built-in auto-purge routine to remove air. Hoses and filters should be replaced after about 10 years or at the first sign of wear.

Typical customers in Oman and the GCC

High-pressure calibration is needed for wellhead and pipeline transmitters, hydraulic test benches, valve actuator testing, subsea and drilling instrumentation. A portable hydraulic calibrator saves the trip to a central lab: the unit can be taken to a compressor station or workshop and run as a stand-alone reference with NIST-traceable data.

Selection and installation notes

Calibration equipment should be set up before it is relied on. Check the range and connections against the devices you will test, allow the instrument to warm up and stabilise, keep the fittings and tubing clean and use the correct adapters and seals. Keep the calibration certificate on file, plan the re-calibration interval according to your quality system, charge and store the battery as the manual describes and protect the case from impact when it is carried to site.

Hydraulic systems need a suitable clean fluid and careful venting, so check that the test fluid is compatible with the devices under test and with the wetted parts of the calibrator.

Information needed for a quotation

Send the full model code, the quantity, the delivery location in Oman or the GCC, the intended use and any accessories needed, so that the complete package can be quoted together.

Documents and supply information

The manufacturer data sheet is attached to this page and should be read together with the project specification and the site risk assessment before a purchase is confirmed. Ratings, standards and dimensions are quoted as printed on that sheet. Lead time, stock position and certificates available with the shipment are confirmed in the quotation, and we supply to Oman and the wider GCC region for industrial, utility and building services projects.

Accessories and related items

• Included: test leads 9022, USB cable, 9725 Li-ion battery, 9818 power adapter, funnel, high-pressure hose, small accessory case, transport cap, carrying case 9907-762, sebacate oil, O-rings and an ISO 17025 certificate.
• Optional: ADT107-X-KIT dual-port manifold for 15,000 psi, ADT161 modules, replacement accumulator 9241 and sebacate oil 9201.

Datasheet and quotation

The datasheet is attached. Please send the pressure range, accuracy and thread you need and our team will prepare a quotation; related tools are under portable test and measurement. Confirm the model code before ordering.
