ABB ACS480-04-12A7-4 General Purpose Drive 5.5 kW 12.6 A
Description
Where the ACS480-04-12A7-4 is used

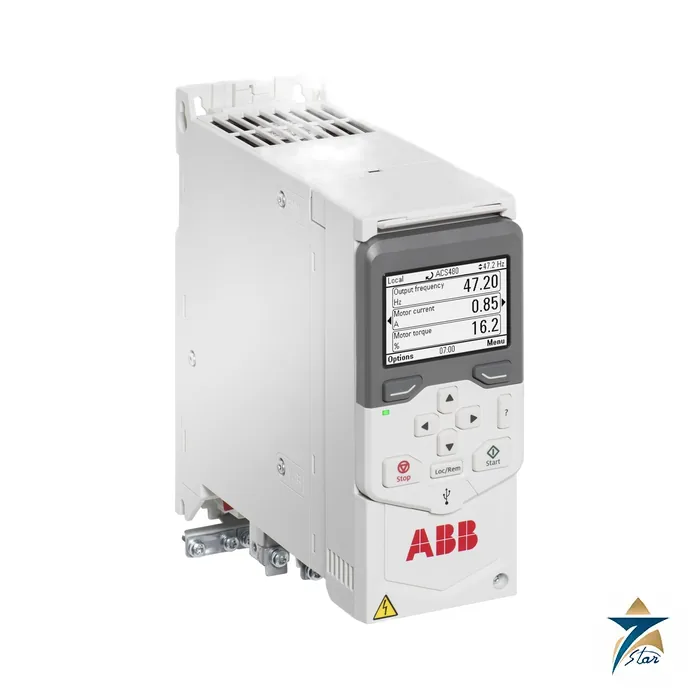

ACS480-04-12A7-4 is an ABB ACS480 general purpose drive in module construction for three-phase 380 to 480 V supplies. The hardware manual lists 5.5 kW at 12.6 A nominal output on frame R2, a body 97 mm wide, 223 mm high and 208 mm deep that weighs 2.2 kg in IP20 form. At 5.5 kW it is the only 400 V rating on frame R2.
Basic equipment covers an embedded Modbus RTU fieldbus, a built-in brake chopper, an internal EMC filter for category C2 and Safe Torque Off. Related products sit in AC drives; the wall-mounted sister platform is on the ABB ACS580 page.
Technical specifications
| Parameter | Specification |
|---|---|
| Order type | ACS480-04-12A7-4 |
| Family and mounting | ACS480 general purpose, 04 = module |
| Mains voltage class | Three-phase 400 V class, code 4 |
| Frame | R2 |
| No-overload rating | 5.5 kW, 12.6 A |
| Light duty | 5.5 kW, 12 A |
| Heavy duty | 4 kW, 9.4 A |
| Peak current | 16.9 A |
| Mains current without and with choke | 16.5 A / 12.6 A |
| IEC gG fuse | 25 A, OFAF000H25 |
| IEC gR fuse | 50 A, 170M2697 |
| MCB option | S 203P-B 25 |
| Losses, cooling air, noise | 165 W / 63 m3/h / 59 dB(A) |
| Switching frequency derating (8 / 12 kHz) | 0.68 / 0.51 |
| IP20 height, width, depth | 223 x 97 x 208 mm |
| Mass in IP20 | 2.2 kg |
Choosing between nominal, light and heavy duty
Match 12 A (light duty, 5.5 kW) or 9.4 A (heavy duty, 4 kW) to the motor. The nominal figure is 12.6 A for 5.5 kW and the peak is 16.9 A. Mains current: 16.5 A without a choke, 12.6 A with one.
The hardware manual recommends 25 A gG fuses (OFAF000H25) or 50 A gR fuses (170M2697), or the S 203P-B 25 breaker. Expect 165 W of losses at 90% of motor nominal frequency and full current, 63 m3/h of cooling air and 59 dB(A).
Switching frequency derating factors are 0.68 at 8 kHz and 0.51 at 12 kHz, with none at 4 kHz. Between +50 and +60 degrees C the current decreases by 1% for each extra degree, and above 1000 m altitude by 1% per 100 m.
Physical data: frame R2, 97 x 223 x 208 mm, 2.2 kg, free space 75 mm above and below. UL Type 1 kit adds hood and connection box (293 mm, 2.7 kg). Cable guidance: 100 m maximum for operation, and for EMC 20 m for category C3 and 10 m for C2 with the internal filter, or 40 m for C1, C2 and C3 with the optional external filter.
Decoding the ordering code
The designation splits into series ACS480, construction 04 (module), rating 12A7 and voltage code 4. The plain code gives the standard unit; plus codes ABB lists include J424 for a blank panel cover, K451 for FDNA-01 DeviceNet, K454 for FPBA-01 PROFIBUS DP and K457 for FCAN-01 CANopen.
Other manual data: a choice of an IEC type or a UL (NEC) type for North America, an input frequency of 47 to 63 Hz, an output frequency of 0 to 500 Hz and switching frequencies of 2, 4, 8 or 12 kHz.
Datasheet and ordering notes
Request the ACS480-04-12A7-4 from Seven Star LLC with your motor data, voltage and communication requirements. Technical values here are taken from ABB document 3AXD50000047392 (ACS480 hardware manual, revision F).
Confirm before ordering: type code and plus options, motor rated current, EMC and enclosure needs, and temperature and altitude at site.
