Swagelok SS-4CA-3 Adjustable Poppet Check Valve, 3-50 psig
Description
Check valve with a field-adjustable cracking pressure

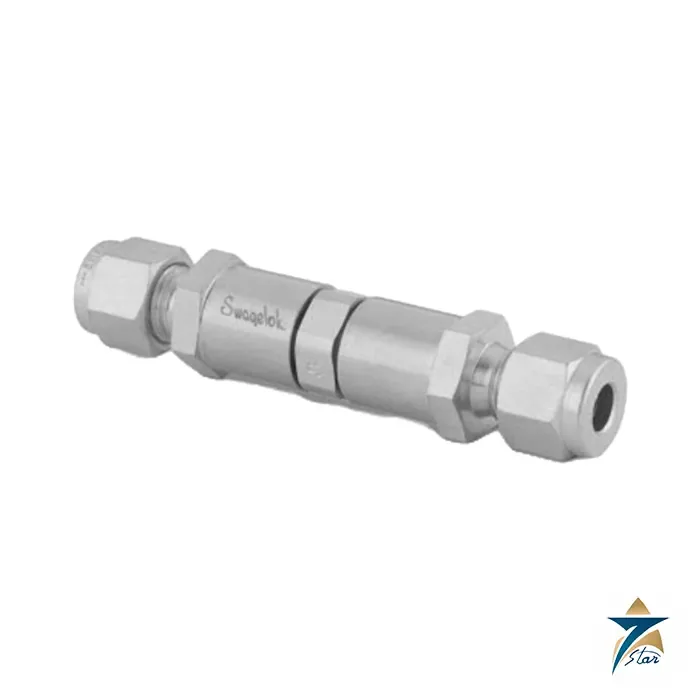

The Swagelok SS-4CA-3 is a CA series poppet check valve in 316 stainless steel with 1/4 in. Swagelok tube fittings. Unlike the fixed-pressure C series, its cracking pressure is set with an adjusting screw over a range of 3 to 50 psig (0.21 to 3.5 bar), and a locking screw holds the setting. That makes one valve usable where the required back-flow protection differs from line to line or has to be tuned during commissioning.
The CA series is built from an inlet body, an insert and a centre body that contain the poppet and an adjustable spring, with PTFE-coated stainless steel gaskets at the inlet and outlet and a fully contained O-ring seal. Swagelok tests every adjustable valve at a low-pressure and a high-pressure setting before shipment, with a maximum seat leak rate of 1 std cm³/min nitrogen.
Technical specifications
| Parameter | Specification |
|---|---|
| Part number | SS-4CA-3 |
| Series | CA series, adjustable cracking pressure |
| Body material | 316 stainless steel |
| End connections | 1/4 in. Swagelok tube fitting at both ends |
| Cracking pressure range | 3 to 50 psig (0.21 to 3.5 bar) |
| Maximum flow coefficient (Cv) | 0.37 |
| Working pressure | 3000 psig (206 bar) at 100 °F (37 °C) |
| O-ring material | Fluorocarbon FKM (standard) |
| Length | 3.23 in. (82.0 mm) with nuts finger-tight |
| Cleaning and packaging | Standard cleaning and packaging (SC-10) |
Range designators in the CA series
| Designator | Cracking pressure range |
|---|---|
| -3 | 3 to 50 psi (0.21 to 3.5 bar) |
| -50 | 50 to 150 psi (3.5 to 10.4 bar) |
| -150 | 150 to 350 psi (10.4 to 24.2 bar) |
| -350 | 350 to 600 psi (24.2 to 41.4 bar) |
The designator is added to the basic number, so SS-4CA-50 uses a stiffer spring for the 50 to 150 psi range. Swagelok also offers 6 mm and 8 mm metric tube fitting versions, male NPT and VCR end connections, and the compact CPA series in brass or stainless steel. The sizing curves for air and water in the catalog show how the pressure drop changes with flow at each spring rating.
Selection and documents
Choose the spring range so that the cracking pressure sits comfortably above any expected back pressure and below the minimum available inlet pressure. Check valves control direction only and are never a substitute for a code safety relief device. For fixed-pressure service up to 6000 psig see the CH series check valve. The attached Swagelok catalog MS-01-176 includes ratings, flow data and ordering information. For a quotation, give the full part number, end connections and seal material. Related products are listed under Fittings and Valves.
