Cla-Val Series 580 Silent Wafer Check Valve
Description
A spring-loaded wafer check that closes before flow reverses

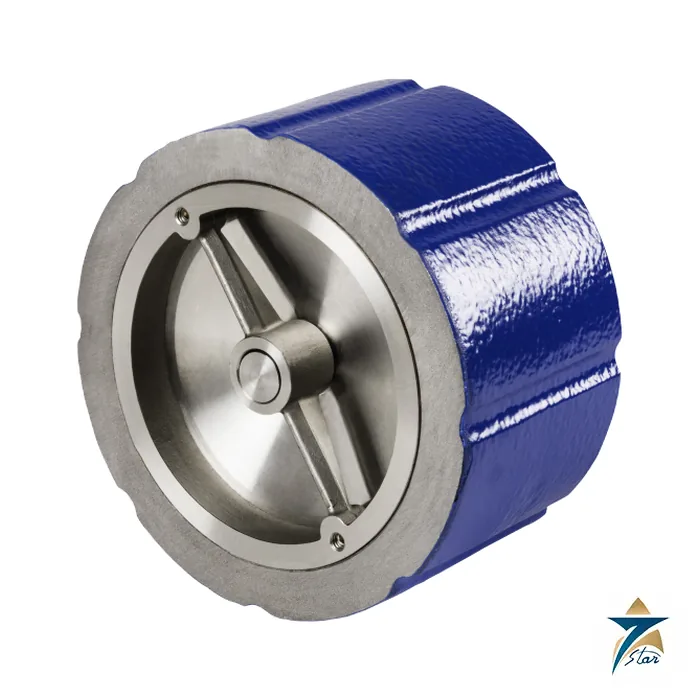

The Cla-Val Series 580 silent wafer check valve has a spring-loaded poppet that allows the valve to close before flow reversal occurs, giving a silent, non-slam closure. It can be installed vertically or horizontally, flow up or flow down, and its short lay length saves space. It is available in sizes 1 to 10 inch with 125/150 or 250/300 pressure class.
The body is epoxy-coated ductile iron with stainless steel trim and watertight metal-to-metal seating. Buna-N resilient seats are optional for special applications.
Technical specifications
| Parameter | Specification |
|---|---|
| Model | Cla-Val Series 580 silent wafer check valve |
| Sizes | 1, 1-1/4, 1-1/2, 2, 2-1/2, 3, 4, 5, 6, 8, 10 in (25 to 250 mm) |
| Pressure class | 125/150 (rated to 250 psi); 250/300 (rated to 400 psi) |
| Body | Ductile iron ASTM A536 65-45-12, epoxy coated inside and outside |
| Seat, disc, plug | 304 stainless steel ASTM A276; Buna-N resilient seat optional |
| Spring | 316 stainless steel ASTM A276, stone tumbled and stress relieved |
| Orientation | Horizontal or vertical, flow up or down |
| Approvals as printed | FM approved 125/150 class, 4 to 10 in; meets federal lead content limits (1 to 10 in) |
| Outside diameter (mm), 1 to 6 in | 69.9 (1 in), 108.0 (2 in), 146.1 (3 in), 177.8 (4 in), 212.7 (5 in), 247.7 (6 in) |
Approvals, pressure classes and materials
Approvals printed in the datasheet are Factory Mutual approval for 125/150 class valves of 4 to 10 inch (except those with Buna-N resilient seats), and compliance with the federal lead content limits for drinking water for 125/150 and 250/300 class valves of 1 to 10 inch. The 125/150 class is rated to 250 psi and the 250/300 class to 400 psi.
Materials follow ASTM: ductile iron body 536 65-45-12, 304 stainless steel seat, disc and plug, a 316 stainless steel spring that is stone tumbled and stress relieved, and a replaceable seat and disc. The disc is center guided at both ends with an integral shaft. The flow area through the body is equal to or greater than the cross-section of the equivalent pipe, and the datasheet gives head loss curves for 1 to 8 inch.
Applications and selection
Cla-Val lists fire pump applications, vertical turbine pumps, booster pump stations in high-rise buildings and house pump applications, and states that the valve suits any service where a quick, quiet closure is wanted. The poppet is spring loaded and guided at both ends, so closing does not rely on gravity, which is why the valve can sit vertically with flow up or down. The seat and disc are replaceable in the field, so a worn valve can be refurbished without replacing the body. For service with solids or where a lug body or a different seat is wanted, ask for a material and seat check before ordering.
The wafer is placed between ANSI flanges; the datasheet gives dimensions A to D for 1 to 6 inch in one table and a separate table for 8 and 10 inch. For example, a 4 inch valve has an outside diameter of 7.00 inch and a 6 inch valve 9.75 inch. For a two-door design in sizes up to 36 inch see the Cla-Val Series 582.
Documents and quotation
The engineering data sheet E-580 is attached. State the size, pressure class, seat type (metal or Buna-N), installation orientation and the pump flow with the RFQ. More valves from this manufacturer are listed under Fittings & Valves.
Datasheets & Documents
- Datasheet Cla-Val Series 580 Silent Wafer Check Valve Engineering Data Sheet E-580 (R-07/2026, manufacturer) Download
