Sierra QuadraTherm 780i In-Line Thermal Mass Flow Meter

Name: Sierra QuadraTherm 780i Thermal Mass Flow Meter – Datasheet
Brand: Sierra Instruments
SKU: 780i

Description

An in-line thermal mass flow meter with built-in flow conditioning for air, natural gas and gas mixtures

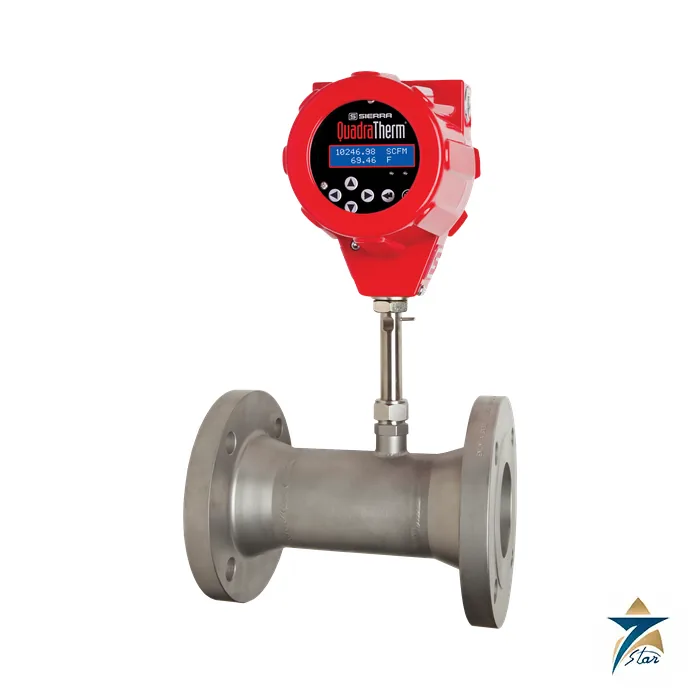

The Sierra QuadraTherm 780i is the in-line version of the QuadraTherm thermal mass flow meter family, supplied in a 316 stainless steel flow body with an integral flow conditioner. It measures mass flow, temperature and, with the VTP option, pressure. Sierra states an accuracy of plus or minus 0.5% of reading above 50% of full-scale flow for the in-line version, 100:1 turndown and a velocity range of 0 to 60,000 sfpm (305 smps). The four-sensor design uses three platinum temperature sensors and one DrySense mass velocity sensor, and the Raptor 2 operating system applies a heat-transfer model to remove effects such as stem conduction and natural convection.

Technical specifications

Parameter	Specification
Parent models	780i-VT (mass flow and temperature); 780i-VTP (adds pressure measurement, extra 4-20 mA output, sensor up to 500 psia / 34.5 bara)
Gases	Inert and non-condensing clean gases; flammable gases including methane, propane, hydrogen, digester gas, natural gas; corrosive gases compatible with 316 SS, 316L SS and Pt/Ir
Mass flow accuracy (in-line)	Plus or minus 0.5% of reading above 50% of full scale; plus or minus 0.5% of reading plus 0.5% of full scale below 50%
Repeatability and response	Flow plus or minus 0.15% of full scale; 3 seconds to 63% of final value; turndown 100:1
Temperature and pressure accuracy	Gas temperature plus or minus 1 degree C; gas pressure plus or minus 1.0% of full scale
Gas temperature range	-40 to 200 degrees C (-40 to 392 degrees F)
Pressure limits	NPT: 500 psia (34.5 bara) NAA only, 300 psig (20.7 barg) for cFMus or ATEX/IECEx; ANSI 150 flanges per class rating, 230 psig at -20 to 100 degrees F
Wetted materials	316 SS, 316L SS and Pt/Ir velocity sensor; Viton for the VTP pressure option
Process connections	NPT 1/2 to 8 inch; ANSI class 150 flange 1/2 to 8 inch; DN25 to DN200 PN16 and DN25 to DN80 PN40 flanges, as listed in the ordering table
Outputs	4-20 mA flow, 4-20 mA temperature, 4-20 mA pressure (optional), alarm contact SPST/opto relays, totalised pulse output
Communications	Modbus RTU or HART (optional), RS-232 or USB with PC software
Power	100 to 240 VAC (0.4 A RMS at 230 VAC) or 24 VDC plus or minus 10% (1.04 A)
Display and enclosure	2 x 16 backlit LCD, 6-button keypad; NEMA 4X (IP66) hazardous-area enclosure; remote-probe version with junction box (E4)
Approvals as printed	cFMus: Class I Div 1 Groups B, C, D T3C, Type 4X; ATEX and IECEx: II 2 G Ex db IIC T3 Gb, II 2 D Ex tb IIIC T200 degrees C Db; Ta -20 to 60 degrees C for ATEX/IECEx
Straight run (in-line with conditioner)	Upstream 1D after a single 90 degree elbow, 3D after two elbows, 5D after a control valve; 0D downstream
Leak integrity	5 x 10-9 sccs helium maximum

Ordering the 780i

The order code is built from the parent (780i-VT or 780i-VTP), flow body (for example N200 for a 2 inch NPT male body or F400 for a 4 inch ANSI 150 flange), electronics enclosure (E2 on-probe or E4 remote), input power (P2 24 VDC or P3 100-240 VAC), display, communications (XX, MB or BH), approvals (NA, UC or EX) and calibrations. Air is always included; three further gases can be selected from the qTherm library or ordered as actual-gas calibrations, with other gases and mixtures by consultation. Options include a non-resettable totalizer, qMix gas-mixing licence, remote cables of 10 to 100 feet and oxygen cleaning for meters up to 4 inches (DN100).

Applications and what to confirm

Typical duties are natural gas, flare gas, biogas, compressed air, nitrogen and process gas lines where a low pressure drop is needed. Sierra states the meter keeps accuracy when gas composition changes if the qMix app is matched to a gas chromatograph. Confirm the gas, pressure, line size, approval, communications and calibration range before ordering, and note that steady straight-run rules apply. For the insertion version see the Sierra QuadraTherm 640i; more instruments are under Flowmeters. The attached 640i/780i datasheet holds the dimensions, gas tables and ordering codes.
