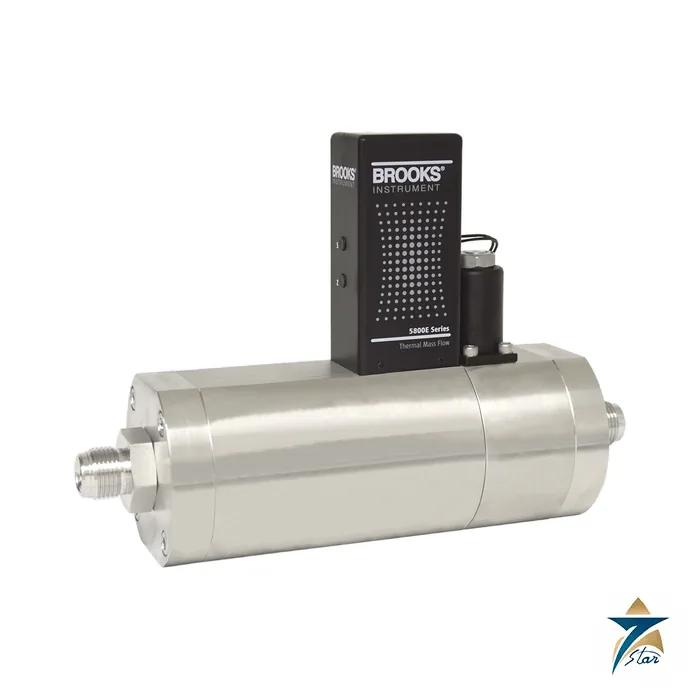

Brooks Instrument 5800E Series Analog Mass Flow Controller
Description
Analog thermal mass flow control for general-purpose gas service
The 5800E Series covers Brooks Instrument elastomer-sealed analog thermal mass flow controllers and meters for general-purpose gas applications. The controllers are the 5850E, 5851E and 5853E and the meters are the 5860E, 5861E and 5863E. Brooks cites chemical and petrochemical research, laboratory, analytical, fuel cell and life science uses and stresses long-term sensor stability, a valve designed for minimal leak-by and calibration on primary standard systems traceable to international standards.
The design is modular and elastomer sealed, which the datasheet says allows factory or field service. Because the interface is a simple 0 to 5 volt signal on a 15-pin connector, the series suits systems that do not need a digital bus. For networked or digitally configured installations, Brooks offers the separate SLA5800 Series.
Technical specifications
| Parameter | Specification |
|---|---|
| Controller models | 5850E, 5851E, 5853E |
| Meter models | 5860E, 5861E, 5863E |
| Flow range (N2 eq.) | 0.003 to 30 slpm (5850E/60E); 10 to 100 lpm (5851E/61E); 100 to 1000 lpm (5853E/63E) |
| Flow accuracy | 1% of full scale, including linearity at calibration conditions |
| Control range | 50:1 |
| Repeatability and reproducibility | 0.25% of rate |
| Response time | Under 3 s (within 2% FS for a 0 to 100% command step) |
| Zero stability | Under +/-0.2% of full scale per year |
| Temperature coefficient | Zero under 0.075% FS per C; span under 1.0% FS shift over 10 to 50 C |
| Pressure coefficient | +/-0.3% per psi (0 to 200 psi N2) |
| Attitude sensitivity | Under 0.5% FS after re-zeroing |
| Operating temperature | 5 to 65 C (41 to 149 F) |
| Minimum differential pressure (controllers) | 5 psi (0.35 bar), 10 psi (0.69 bar), and 7.5 psi below 500 lpm or 11.8 psi above 500 lpm on 5853E |
| Maximum differential pressure (controllers) | 50 psi (3.45 bar) on 5850E; 290 psi (20 bar) on larger sizes |
| Maximum pressure rating | 1500 psi / 100 bar (5850); 1500 psi / 103 bar (5851); 1000 psi / 70 bar (5853) |
| External leak integrity | 1×10-9 atm cc/sec He |
| Valve type | Normally closed, normally open, or meter |
| Wetted materials | 316L stainless steel, high alloy stainless steel, Viton, Buna-N, Kalrez, Teflon |
| Electrical connection | 15-pin male Sub-D (DA-15P) or card edge connector (controllers only) |
| Setpoint input | 0 to 5 Vdc, 200 kilohm input resistance (controllers) |
| Output signal | 0 to 5 Vdc into 2000 ohm or greater load; 5 Vdc reference output |
| Power | +15 Vdc and -15 Vdc; 3.5 W (small body, normally closed) to 10.5 W (large body) |
| Approval | CE EMC Directive 2004/108/EC, EN 61326-1:2006 |
Selecting the right body size and connection
Pick the body by full-scale range: the 50 series for 0.003 to 30 slpm, the 51 series for 10 to 100 lpm and the 53 series for 100 to 1000 lpm. The datasheet notes that up to 200 lpm of hydrogen is possible, and 600 lpm with reduced accuracy. Process connections on the small bodies are 1/8, 1/4 and 3/8 inch compression, 1/4 inch VCO and VCR, with 1/2 inch VCO and VCR on the mid body. The large 5853E and 5863E offer female pipe thread, tube compression to 1 inch, VCO, VCR and ANSI 150 or 300 and DIN PN40 flanges from 1/2 inch up to 2 inch and DN15 to DN50.
What to confirm before ordering
Send us the gas and full-scale flow, the pressures on both sides of the controller, the valve action, the fitting or flange, and the exact signal range of the host system. Differential pressures outside the stated limits may be workable in some processes, but should be reviewed against the datasheet. If you are matching an existing nameplate, include the complete model number so the valve type and connection can be compared.
How the Brooks Instrument 5800E works
A small part of the gas flows through a heated sensor tube. The gas carries heat from one point to another, and the temperature difference shows the mass flow. The controller compares this value with the 0 to 5 volt setpoint. It then moves the valve until the flow matches the setpoint.
Where the 5800E is used
- Chemical and petrochemical research
- Laboratories
- Analytical instruments
- Fuel cell test stands
- Life science equipment
Selection checklist for the 5800E
- Gas and flow range
- Controller or meter
- Inlet and outlet pressure
- Differential pressure
- Valve type, normally closed or open
- Seal material
- Fitting size
- Analog 0 to 5 volt interface
Installation, commissioning and maintenance notes for the 5800E
Mount the unit in the orientation used at calibration, or re-zero it after a change. Connect the 15-pin plug. Purge the lines with clean dry gas. Apply a setpoint and check the flow against a reference. Re-zero the unit at regular intervals.
Requesting a quotation for the Brooks Instrument 5800E
Please send the gas, the flow range, the pressures and the seal material. Seven Star LLC serves industrial customers in Oman and the GCC and replies with a quotation based on the information provided.
5800E controller models
The controllers are the 5850E, 5851E and 5853E.
5800E meter models
The meters are the 5860E, 5861E and 5863E.
5800E flow ranges
Flow ranges run from 0.003 slpm to 1000 lpm.
5800E accuracy
The flow accuracy is 1 percent of full scale.
5800E control range
The control range is 50 to 1.
5800E repeatability
Repeatability is 0.25 percent of rate.
5800E response time
The response time is under 3 seconds.
5800E zero stability
Zero stability is under 0.2 percent of full scale per year.
5800E operating temperature
It works from 5 to 65 degrees C.
5800E valve types
The valve is normally closed, normally open, or a meter without a valve.
5800E wetted materials
Wetted parts include 316L stainless steel and seals such as Viton, Buna-N, Kalrez and Teflon.
5800E leak integrity
The external leak integrity is 1×10-9 atm cc/sec He.
5800E digital option
For digital configuration, Brooks offers the separate SLA5800 Series.
Flow controller records for the 5800E
Record the gas, the calibration data and the date of each zero check.
Choosing the right 5800E seal material
Choose the seal material from the gas and the cleanliness the process needs.
Documents and quotation
The manufacturer datasheet (7 pages) is attached to this page as a download. For a quotation, send the full model code and the process data to Seven Star LLC in Muscat; browse more instruments in the Flowmeters category. We supply this item as an independent supplier, so please confirm availability and delivery with us.
