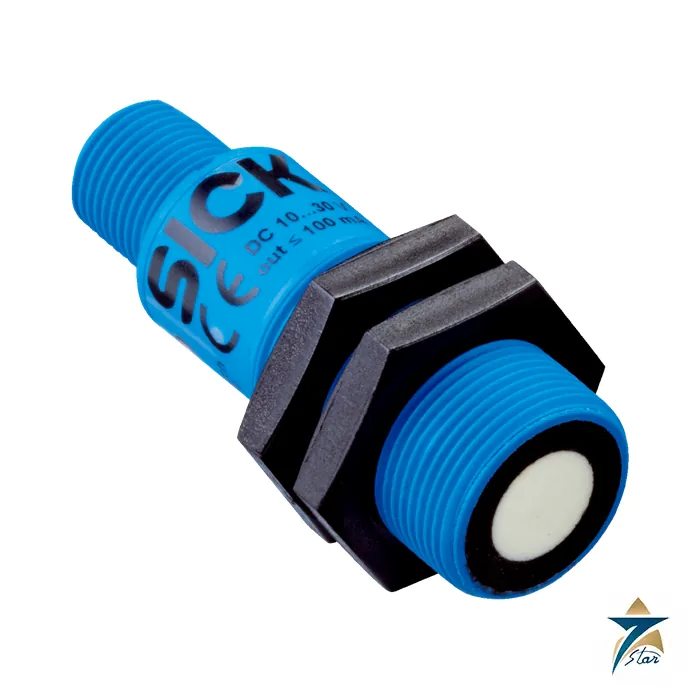

SICK UM18-211167101 UM18 Ultrasonic Distance Sensor, 0-10 V
Description
UM18-211167101 is a SICK UM18 ultrasonic distance sensor (part no. 6072877). It measures the distance to an object from the travel time of a sound pulse and reports it as voltage output (0 V … 10 V, ≥ 100,000 Ω). Operating range, limiting range: 30 mm … 250 mm, 350 mm; response time 32 ms; connection Male connector, M12, 4-pin.
Distance measurement with the UM18-211167101
Dust, steam and strong air movement reduce the echo and can make the reading jump; filtering or averaging in the controller helps where the process is turbulent. The analog output is scaled by teaching two points, so the zero and full-scale values follow the real process range rather than the sensor’s physical range. Ultrasonic sensors time the echo of a sound pulse, so the reading does not depend on target colour and is largely independent of surface finish. This type lists a temperature drift of 0.17 % / K.
On the UM18-211167101 the resolution is ≥ 0.2 mm, repeatability ± 0.15 %, accuracy ± 1 % and the output time is 8 ms. The ultrasonic frequency is typically 320 kHz. Configurable functions: teach-in of analog output; Invertable analog output; Reset to factory default.
Technical specifications
| Parameter | Specification |
|---|---|
| Type code | UM18-211167101 |
| Part number | 6072877 |
| Product family | UM18 |
| Operating range, limiting range | 30 mm … 250 mm, 350 mm |
| Resolution | ≥ 0.2 mm |
| Repeatability | ± 0.15 % |
| Measurement accuracy | ± 1 % |
| Response time | 32 ms |
| Output time | 8 ms |
| Ultrasonic frequency (typical) | 320 kHz |
| Detection area (typical) | See diagrams |
| Additional function | Teach-in of analog output; Invertable analog output; Reset to factory default |
| Safety-related parameters: MTTFD | 101 years |
| Safety-related parameters: DCavg | 0% |
| Analog output: Number | 1 |
| Analog output: Type | Voltage output |
| Analog output: Voltage | 0 V … 10 V, ≥ 100,000 Ω |
| Analog output: Resolution | 12 bit |
| Supply voltage UB | DC 15 V … 30 V |
| Power consumption | ≤ 1.2 W |
| Initialization time | < 300 ms |
| Display | 2 x LED |
| Enclosure rating | IP65 / IP67 |
| Protection class | III |
| Dimensions (W x H x D) | 18 mm x 18 mm x 52.7 mm |
| Design | Cylindrical |
| Sending axis | Straight |
| Housing material | Plastic (PBT, ultrasonic transducer: polyurethane foam, glass epoxy resin) |
| Weight | 15 g |
| Thread size | M18 x 1 |
| Connection type | Male connector, M12, 4-pin |
| Ambient temperature, operation | –25 °C … +70 °C |
| Ambient temperature, storage | –40 °C … +85 °C |
| Temperature drift | 0.17 % / K |
| Declarations and certificates in the data sheet | EU declaration of conformity; UK declaration of conformity; ACMA declaration of conformity; Moroccan declaration of conformity; China RoHS; China Compulsory Product Certification (CCC) exempt; cULus certificate |
Type code UM18-211167101 and part number 6072877
The digits after the family name in UM18-211167101 are not a range in millimetres; read the operating range from the table. The seven-digit number 6072877 is the order key, and a version with a current output and one with a voltage output are different items.
Related catalogue entries in the same family, each ordered under a different number:
- UM18-211167102 (part no. 6072878)
- UM18-211165102 (part no. 6048415)
- UM18-211165101 (part no. 6048414)
- UM18-211161102 (part no. 6048413)
- UM18-211161101 (part no. 6048412)
Mounting, wiring and set-up notes
Plan for DC 15 V … 30 V at the terminals, IP65 / IP67 enclosure protection and an operating ambient of –25 °C … +70 °C. Current draw is ≤ 1.2 W. The body measures 18 mm x 18 mm x 52.7 mm and weighs 15 g. Indication: 2 x LED. Mount the transducer square to the target; a tilt of a few degrees can already lose the echo on a smooth surface. Protect the transducer face from mechanical damage and aggressive cleaning agents, and keep it free of condensation or build-up.
Documents and quotation
This page carries a copy of the SICK data sheet for UM18-211167101 (part no. 6072877), so the dimensional drawing and the electrical data are one click away. Use the RFQ form with the part number, quantity and delivery point; we reply with a quotation and the delivery information we can confirm. Related items are listed under Sensors & Transmitters. Please check the electrical output, the connector and the measuring or switching range against the old device before you order. Where this page and the data sheet disagree, follow the data sheet.
