Brand: SICK

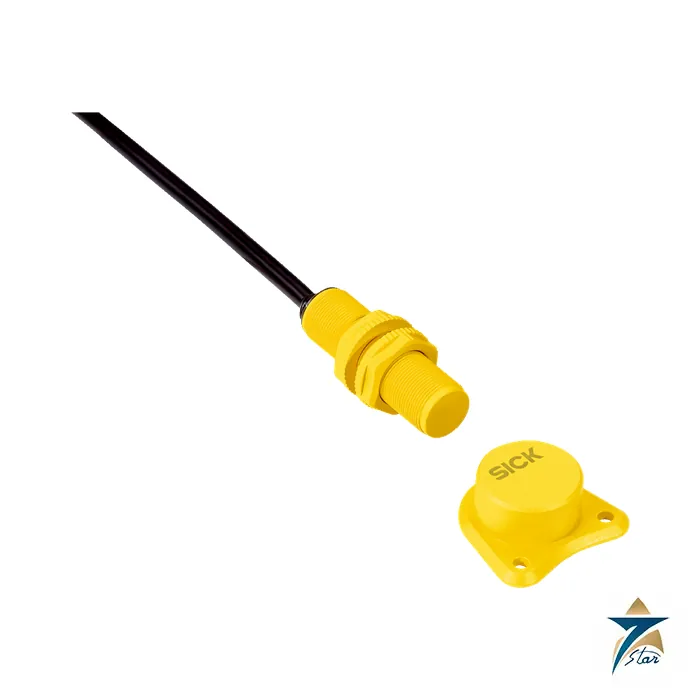

SICK TR4-SBM10PB TR4 Direct Safety Switch
Description
TR4-SBM10PB is a SICK TR4 Direct safety sensor (part no. 6070794) that monitors the position of a guard door or flap and gives a safe release signal only while the guard is closed. The catalogue summary lists: system part: Sensor with actuator; coding: Universally coded; assured switch on distance Sao: 25 mm; connection type Detail: Cable; length of cable: 10 m.
How the TR4-SBM10PB works and where it fits
Read the section on series connection in the operating instructions before wiring more than a few guards. Tampering is the main reason ISO 14119 asks for coded actuators: a device with a high coding level cannot be bridged with a spare actuator found on site.
Door play affects the switching distance in real life; a door that moves a few millimetres in its frame can pass a gap that the data sheet marks as the safe switching distance. Fixed cables with a specified bend radius and strain relief avoid broken conductors, one of the most frequent field failures on door switches.
Technical specifications
| Parameter | Specification |
|---|---|
| Type code | TR4-SBM10PB |
| Part number | 6070794 |
| Product family | TR4 Direct |
| System part | Sensor with actuator |
| Sensor principle | RFID |
| Number of safe outputs | 2 |
| Assured switch on distance Sao | 25 mm |
| Assured switch off distance Sar | 35 mm |
| Active sensor surfaces | 2 |
| Actuation directions | 5 |
| Coding | Universally coded |
| Safety integrity level | SIL 3 (IEC 61508) |
| Category | Category 4 (EN ISO 13849) |
| Performance level | PL e (EN ISO 13849) |
| PFHD (mean probability of a dangerous failure per hour) | 6.03 * 10⁻¹⁰ |
| Type | Type 4 (EN ISO 14119) |
| Actuator coding level | Low coding level (EN ISO 14119) |
| Safe series connection | In control cabinet (with diagnostics) |
| Connection type | Cable |
| Length of cable | 10 m |
| Long connecting cable | ≤ 200 m |
| Bend radius (with fixed installation) | > 7 x cable diameter |
| Bend radius (with moving cable) | > 14 x cable diameter |
| Status display | Yes |
| Supply voltage Vs | 24 V DC (20.4 V DC … 26.4 V DC) |
| Power consumption | ≤ 50 mA |
| Type of output | Self-monitoring semiconductor outputs (OSSDs) |
| Output current | ≤ 200 mA |
| Response time | 45 ms |
| Release time | 360 ms |
| Declarations and certificates in the data sheet | EU declaration of conformity; UK declaration of conformity; ACMA declaration of conformity; China RoHS; cULus certificate; EC-Type-Examination approval |
Selection and installation notes for TR4-SBM10PB
Wiring data to note: supply: 24 V DC (20.4 V DC … 26.4 V DC); current: ≤ 200 mA; outputs: self-monitoring semiconductor outputs (OSSDs); connection: Cable; response time: 45 ms; power draw: ≤ 50 mA.
Housing and environmental limits listed: vibration 10 Hz … 55 Hz, 3.5 mm (IEC 60068-2-6); housing valox® DR48; operating temperature –25 °C … +70 °C; shock 30 g, 11 ms (EN 60068-2-27); enclosure rating IP67 (IEC 60529); IP69K (ISO 20653); weight 654 g.
Before ordering, match the actuator to the sensor (coded sets, universally coded or uniquely coded variants are separate part numbers), check assured switch-on and switch-off distances against door play and alignment tolerance, and confirm the connection type and cable length or plug.
Protect the actuator from damage and do not paint over active surfaces.
Documents and quotation
Attached to this page: the SICK data sheet for TR4-SBM10PB, part no. 6070794, as published by SICK. Quotations are prepared by Seven Star LLC, an independent supplier in Muscat, once you send the part number, quantity and site through the RFQ form. Browse more in Safety Switches & Guard Locking. Compare the complete type code with your existing unit and controller before ordering; the data sheet prevails if it differs from this page.
Datasheets & Documents
- Data Sheet SICK TR4-SBM10PB official data sheet (part no. 6070794) Download
Reviews (0)
About brand
SICK is the German maker of industrial sensors: photoelectric and proximity sensors, safety laser scanners and light curtains, encoders, distance sensors, code readers and gas analysers. Erwin Sick, an optics engineer, founded it in Munich in 1946, and in 1952 it introduced its first marketable accident-prevention light curtain, which protected press operators by stopping the machine when a hand broke the light beam. The company moved to Waldkirch in the Black Forest in 1956 and is still headquartered there. It is a privately held company, and has been an Aktiengesellschaft (AG) since 1996.
SICK company profile
| Founded | 1946, Munich, Germany, by Erwin Sick (1909–1988) |
|---|---|
| Headquarters | Waldkirch, Baden-Württemberg, Germany (since 1956) |
| Ownership | Privately held; after the founder's death in 1988 his widow Gisela Sick became the main shareholder. Legal form SICK AG since 1996 |
| Size | More than 12,000 employees and group revenue of about EUR 2.3 billion (company figures for 2023) |
| First breakthrough | Accident-prevention light curtain for presses, shown in Hanover in 1952 |
| International growth | First foreign subsidiary in France in 1972, United States in 1976; today sales and service companies worldwide |
| Product families | Photoelectric, inductive, capacitive, magnetic and ultrasonic sensors; safety laser scanners, light curtains, safety controllers and relays; encoders and motor feedback systems; distance sensors and LiDAR; barcode and 2D code readers and machine vision; gas analysers, dust and flow measurement for process and emissions monitoring |
Milestones
- 1946: Erwin Sick receives a licence to run his engineering firm in Munich.
- 1952: The first marketable accident-prevention light curtain is presented in Hanover and goes into series production.
- 1956: The company moves to Waldkirch with 25 employees.
- 1972 and 1976: Subsidiaries are founded in France and the United States.
- 1996: SICK becomes an Aktiengesellschaft.
- Today: Sensors for factory and logistics automation, machine safety and process analysis, with a large share of revenue outside Germany.
Choosing a SICK sensor
For object detection, the sensing principle comes first. A retro-reflective sensor (WL series) sends light to a reflector and switches when an object breaks the beam; it is reliable over long distances and easy to align. A sensor with background suppression (WTB series) detects an object at a set distance and ignores what is behind it, which suits conveyors with shiny or dark backgrounds. A through-beam pair (WS/WE) gives the longest range and the highest reliability in dust. For transparent bottles and film, use a model built for transparent objects (for example WL12G-3B or WL150-P420). The digits in the code also matter: "P" usually means a PNP output and "N" NPN, and the last digits set the connector or cable. For machine guarding, a safety laser scanner such as nanoScan3 or microScan3 protects an area, while a safety controller such as Flexi Soft combines several safety devices.
Where SICK products are used
In Oman and the GCC, SICK sensors are used in packaging and bottling lines, food and beverage plants, logistics and airport baggage handling, cement and steel plants, ports and cranes, automated warehouses, and on machines built by European OEMs. SICK safety scanners guard robots and automated guided vehicles, and its encoders give position feedback on motors, hoists and conveyors.
SICK products we list
| Family | Examples |
|---|---|
| Photoelectric sensors | WL12-3P2431, WTB12-3P2431, GTB6-P4211, VL18-4P3240, WL12G-3B2531, WS/WE100, KT5W contrast, W26 IO-Link |
| Proximity, cylinder and ultrasonic sensors | IME12-08NPSZC0S, IME18-05BPSZC0S, MZT8, UM18 4-20 mA, UM30, UFN3 fork |
| Machine safety | nanoScan3, microScan3, S300 Professional, Flexi Soft FX3-CPU1, FX3-XTIO, ReLy OSSD |
| Encoders and motor feedback | DFS60B, AFM60 PROFINET, AFS60 SSI, ATM60 PROFIBUS, SRS50, EFS50 |
| Distance sensors and code readers | DT50, DL50, DT35, Lector632 |
Ordering SICK products: what we need
Send the type code and the 7-digit SICK part number from the label (for example WTB12-3P2431 together with its part number). For a replacement sensor, add the output (PNP or NPN), connection (M8, M12 or cable) and sensing distance. For encoders, add the interface (incremental, SSI, PROFIBUS, PROFINET), resolution and shaft type. For safety scanners, tell us the model and whether the existing configuration needs to be kept.
Facts checked against SICK's published company history and annual figures, October 2026.
Browse SICK products by category: Sensors & Transmitters.
Related products
Frequently Asked Questions
What is the SICK TR4-SBM10PB?
It is a SICK safety switch (TR4 Direct), part no. 6070794. The catalogue summary reads: System part: Sensor with actuator; Coding: Universally coded; Assured switch on distance Sao: 25 mm; Connection type Detail: Cable.
What supply does the TR4-SBM10PB need?
Supply voltage is 24 V DC (20.4 V DC ... 26.4 V DC). Performance level: PL e (EN ISO 13849).
What protection rating and temperature range are given?
Enclosure rating: IP67 (IEC 60529); IP69K (ISO 20653). Ambient operating temperature: –25 °C ... +70 °C. Confirm both against the site before ordering.
Does the page include the data sheet?
Yes. The official SICK data sheet for part no. 6070794 is attached as a PDF and linked on this page; where it differs from the page text, the data sheet applies.
What should be confirmed before ordering the TR4-SBM10PB?
Compare the full type code and part number 6070794 with the device being replaced, check supply, output or interface and mounting, and send the details through the RFQ form. Seven Star LLC is an independent supplier, not a SICK partner.
