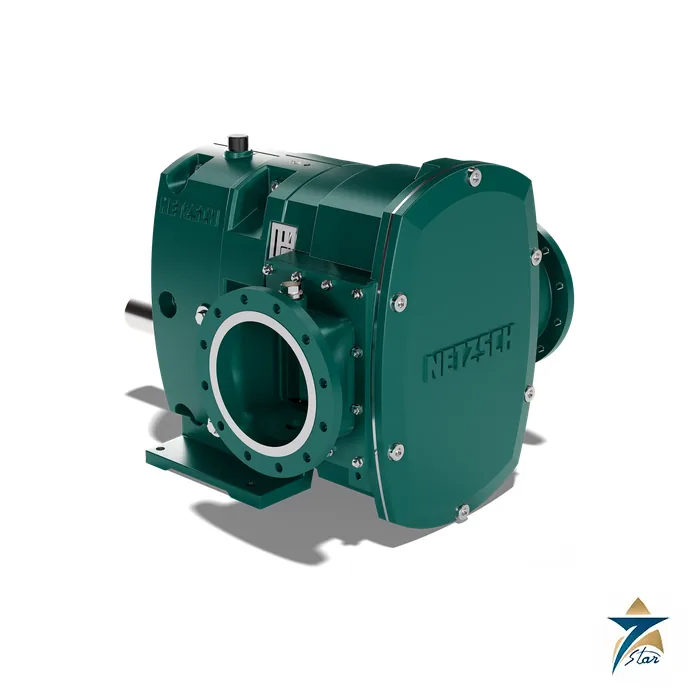

NETZSCH TORNADO T1-F Rotary Lobe Pump

Overview

The NETZSCH TORNADO T1-F is the current industrial rotary lobe pump in the NETZSCH TORNADO® range, built for maximum operational safety through a strict separation between pump chamber and gearbox chamber. NETZSCH recommends the NETZSCH TORNADO T1-F for environment and energy, chemicals and paper, mining and oil and gas, where it handles viscous, solids-laden, abrasive or contaminated media with a self-priming action and a constant flow rate, and where it tolerates dry running.

Seven Star LLC supplies the NETZSCH TORNADO T1-F to water and wastewater utilities, oilfield service companies, terminals and industrial plants in Oman and the GCC, supported by engineering support in Muscat. Our engineers help define lobe type, materials and seals and assemble the documentation package for each project.

Operating Principle

A rotary lobe pump is a rotating positive displacement pump. In the NETZSCH TORNADO T1-F, two lobes turn in opposite directions inside the casing, driven and kept in phase by a synchronising gearbox. Liquid fills the space between each lobe and the housing on the suction side and is carried around the casing wall to the discharge side, giving a defined volume per revolution and a flow that stays nearly constant even when system pressure varies.

Because the lobes do not touch each other or the housing, the NETZSCH TORNADO T1-F can pass solids and fibrous material, run at low speed with high efficiency, and survive periods of dry running. The NETZSCH Gearbox Security System (GSS) spatially separates the pump chamber from the gearbox, preventing the medium from entering the synchronising gear and gear oil from entering the pump chamber — a key safeguard against unplanned shutdowns.

Engineering Design of the NETZSCH TORNADO T1-F

The one-piece pump housing has a flow-optimised profile, and replaceable, highly abrasion-resistant and chemically resistant wear plates sit at both ends; optional radial wear plates further extend service life on abrasive media. Lobes are available as two-, three- or four-wing designs, straight or helical, in various materials. After opening the front cover, lobes, wear plates and shaft seals can be serviced or replaced without dismantling the casing or disconnecting the suction and discharge pipework.

Service-friendly shaft seals, either low-wear direction-independent seals or application-specific mechanical seals, sit behind patented sealing sleeves that never touch the medium and can be removed quickly. Flushing and sealing water connections are easy to reach. NETZSCH states the NETZSCH TORNADO T1-F is suitable for pressures up to ten bar on most sizes, offers excellent energy efficiency with reduced drive power, and is ATEX and CE certified for use in potentially explosive atmospheres.

Key Features

The NETZSCH TORNADO T1-F provides these practical benefits on site:

• GSS technology keeps product out of the gearbox and gear oil out of the pump chamber for long-term reliability.
• Maintenance in place: lobes, wear plates and seals are accessible from the front cover without removing pipework.
• Patented sealing sleeves that never contact the medium shorten seal replacement times.
• Self-priming and insensitive to dry running, unlike most centrifugal pumps.
• Replaceable wear plates on both housing ends protect the casing on abrasive media.
• Modular design lets size, lobe geometry and materials be matched to the medium and adjusted later.
• Energy-efficient operation with reduced drive power lowers total cost of ownership.
• ATEX and CE certification for installation in hazardous areas.

Industrial Applications

In Oman and the wider GCC the NETZSCH TORNADO T1-F is well suited to sludge transfer and digester feed in sewage treatment plants, membrane bioreactor (MBR) duties, wellpoint dewatering on construction sites, drilling mud and produced-water handling around oilfield facilities, oily water and slop transfer at terminals, and loading or unloading of oil from ships. NETZSCH also lists petrochemical, mining and paper starch duties for the TORNADO range.

Where a mobile or higher-duty lobe pump is already in service, the NETZSCH TORNADO T2 rotary lobe pump offers a related option, while very viscous or shear-sensitive products with high solids may suit the NETZSCH NEMO BY NM038BY progressing cavity pump. Seven Star LLC supplies the NETZSCH TORNADO T1-F throughout Oman and the GCC and supports maintenance teams with wear parts planning from Muscat.

Plants that use a progressing cavity pump for thick sludge often add a TORNADO lobe pump for the higher-flow, lower-viscosity stages of the same process, and for clean oil transfer a gear pump such as the KRACHT KP Series internal gear pump may be more economical.

Technical Specifications

Key NETZSCH TORNADO T1-F data from NETZSCH are shown below; values vary with size, lobe type and seal design.

Selected sizes from the published performance table:

How to Order

Send Seven Star LLC your RFQ for the NETZSCH TORNADO T1-F with medium description, solids content, viscosity, flow, pressure and hazardous-area classification. Our Muscat team will confirm the size, lobe and seal options, advise on stock and delivery in Oman and the GCC, and provide the NETZSCH TORNADO brochure for your technical file. Contact us today for a quotation and engineering support.
