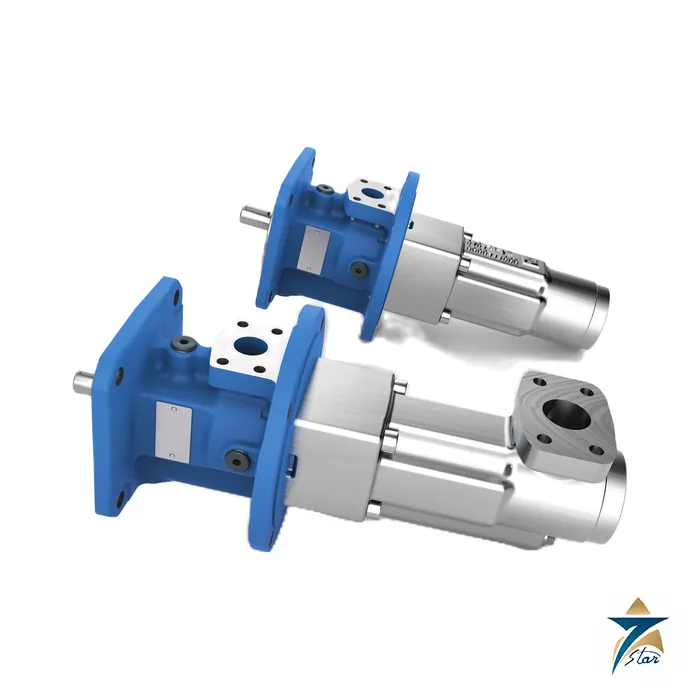

Allweiler EMTEC-C High-Pressure Coolant Pump

Name: Allweiler EMTEC-C High-Pressure Coolant Pump – Brochure & Quote
Brand: Allweiler
SKU: ALLWEILER-EMTEC-C

Three-screw pump for high-pressure cooling lubricant supply

The Allweiler EMTEC-C is a redesigned three-screw pump for high-pressure coolant supply, now up to 100 bar. It is designed to handle good, medium or mal-lubricating abrasive fluids in cooling lubricant technology or process engineering, and the brochure positions it for metalworking applications, transfer lines, and grinding and deep drilling machines. In a typical machining centre it sits behind a low-pressure Allweiler centrifugal pump, a filter and the clean fluid tank.

EMTEC pumps are built for the harsh environment of high-pressure machine tool coolant service. Special hardening techniques give the housing bores a surface hardness similar to ceramic while keeping the elasticity that removes the danger of bore surface fracture, the rotors are hardened, and an extra-long balance piston improves volumetric efficiency while its flow cools and lubricates the silicon carbide seal faces.

Technical specifications

Data from the Allweiler EMTEC-C brochure (2019). Performance values are for the listed viscosities; more data is in the performance tables.

Parameter	Specification
Capacity Q	10 to 80 l/min
Differential pressure	Up to 100 bar (emulsion)
Suction or inlet pressure	Up to 6 bar
Liquid temperature	Up to 80 deg C
Viscosity range	1 to 760 mm2/s
Dirt load level	Up to 250 mg/l
Filter fineness	Up to 100 micrometre
Sizes and pitch	Size 20: pitch 28, 38, 46, 56; size 40: pitch 38, 46
Ordering examples	EMTEC-C20R28D19US-W110332 (radial, mechanical seal); EMTEC-C20R28D19US-P-W110332 (axial); EMTEC-C40R46DQ-W110332 (radial, lip seal)
Seal types	Mechanical seal 19US (silicon carbide, maintenance-free) or lip seal Q with secondary seal ring
Pressure pulsation	Only 1 to 2 percent of delivery pressure
Maximum air content	10 percent in emulsions and solutions; 7 percent in cutting oil
Pipe thread connection	G 3/4 at pressure outlet; SAE suction flange and SAE discharge flange, both metric
Typical dimensions	Length k 421 mm (size 20) and 464 mm (size 40)
Example performance (1450 1/min)	Size 20-28, emulsion at 0 bar: 10.2 l/min, 0.1 kW

What is different in the EMTEC-C

The brochure highlights a patented reversed hanging idler system that extends service life, thermochemically hardened housing bores, built-in venting for horizontal and vertical mounting, a clean transparent backflow pipe that shows any medium returning to the system, and easy control through a pressure sensor connection for a frequency controller. Sound levels across the pressure range are given in the datasheet.

Installation can be tank-top with the discharge above the tank cover, submerged in the tank, or foot-mounted, where the silicon carbide mechanical seal supports a long service life. Variable assembly is possible through the integrated mounting flange, and both SAE flanges and pipe thread connections are standard.

Applications and checks

The pump suits machine shops and fabrication workshops that run through-spindle coolant. Verify the coolant type, filtration level and dirt load against the limits above, and the pressure rating of the machine tool. For other Allweiler pumps see the Allweiler TRILUB TRL V16-40R41 screw pump and the pump category.

Documents and quotation

The EMTEC-C brochure can be downloaded from this page. Seven Star LLC is an independent supplier in Muscat; for an RFQ send the full pump code, coolant type and pressure and flow required.

Allweiler TRILUB screw pumps

TRILUB is Allweiler's name for a family of three-screw pumps built for lubricating and hydraulic oil service. One driven screw meshes with two idler screws inside a liner and moves the oil axially with little pulsation, which suits lube oil circuits of turbines, compressors, gearboxes and diesel engines. The listed TRL V16-40R41 is a complete pump from this family. Buyers who search for Allweiler oil pumps are usually looking for this kind of unit, in the GCC as elsewhere.

Ordering Allweiler pumps and parts: what we need

Send the full type designation and the serial or order number from the nameplate. For a complete pump add the oil grade and viscosity, flow, discharge pressure, speed and motor data. For parts, name the item needed, such as the screw set, liner, mechanical seal or bearing.
