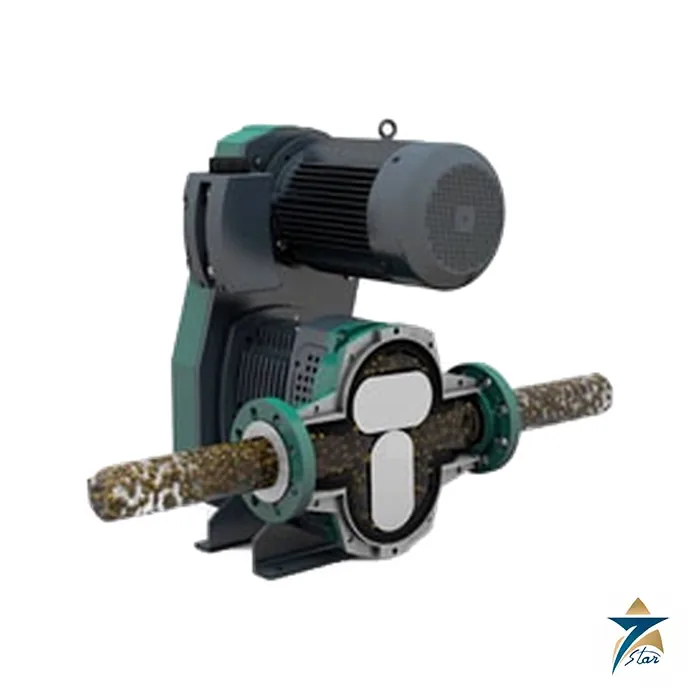

NETZSCH NEMO TORNADO T2 Rotary Lobe Pump

Overview

Facility engineers researching the NETZSCH NEMO TORNADO T2 rotary lobe pump will find it is one of the most technologically advanced positive displacement pumps available to industrial and municipal operators today. The NETZSCH NEMO TORNADO T2 rotary lobe pump combines proven rotary lobe technology with modern maintenance engineering. Built around a metal housing fitted with a replaceable elastomer liner, the TORNADO T2 combines the gentle, low-shear conveyance of rotary lobe technology with a compact, maintenance-friendly architecture. A patented pulsation reduction system (PRS) releases lobe energy progressively as the lobes pass through the pump chamber, cutting pressure spikes and delivering markedly smoother flow than conventional lobe pumps – a critical advantage for plants handling abrasive slurries, fibrous solids, and shear-sensitive process fluids across water treatment, chemical processing, and industrial manufacturing.

As the official authorized partner and exclusive regional representative for NETZSCH, Seven Star LLC proudly supplies the NEMO TORNADO T2 pump to process plants, municipal utilities, and industrial facilities throughout Oman and the wider GCC. Buyers in Muscat, Sohar, and Salalah gain access to genuine NETZSCH engineering, full technical documentation, and regional after-sales support – backed by a supplier who understands the operating conditions of Gulf industry, from high-ambient-temperature installations to the demanding solids-handling duties found in desalination and wastewater applications.

Operating Principle

The NETZSCH NEMO TORNADO T2 pump operates on the rotary lobe displacement principle: two synchronized lobes rotate in opposite directions inside a precision-machined housing, drawing fluid into expanding cavities on the suction side and expelling it as the cavities contract on the discharge side. Unlike conventional lobe pumps that rely on external timing gears and lubricated gearboxes, the TORNADO T2 uses a synchronous toothed timing belt to keep the lobes precisely synchronized without gear lubrication, eliminating an entire category of wear parts and contamination risk. The metal-on-rubber clearance design allows the pump to run dry intermittently without damaging internal surfaces, a valuable safety margin during upset conditions or priming.

The pulsation reduction system is what distinguishes the TORNADO T2 from standard rotary lobe designs. As each lobe tip passes a sealing point, trapped fluid energy is bled off in a controlled manner rather than released as a pressure spike, producing constant, low-pulsation flow even at higher rotational speeds. The practical consequence for plant engineers is reduced pipe vibration, lower noise levels, less strain on downstream instrumentation, and metering precision that scales directly with pump rotation speed – making the NEMO TORNADO T2 pump equally suited to bulk transfer duties and precise dosing applications.

Engineering Design of the NETZSCH NEMO TORNADO T2

Physically, the NETZSCH NEMO TORNADO T2 pump is built for full service-in-place maintenance: the entire wetted assembly can be accessed and serviced flange-to-flange without disturbing the pump casing, drive, or piping connections. There are no timing gears, no gearbox lubrication points, no o-rings in the lobe chamber, no gaskets to replace at every teardown, no keyways, and no castle nuts – a design philosophy that removes the specialized tools and extended downtime typically associated with rotary lobe pump maintenance. The elastomer liner is a wear-replaceable component, meaning the metal housing itself is protected from abrasive media and only the liner requires periodic renewal.

The pump’s compact, space-saving footprint delivers high power density relative to its installed size, an important consideration for skid-mounted systems and retrofits where floor space is constrained. Ball passage through the pumping chamber is large enough to accommodate solids-laden streams without clogging, and the pump accepts a wide range of shaft seal configurations – packed gland, single mechanical seal, or double mechanical seal – to match the chemical compatibility and containment requirements of the application. Wetted end materials, liner elastomers, and rotor geometry can all be specified to match fluid abrasiveness, viscosity, and temperature.

Key Features

Buyers evaluating the NETZSCH NEMO TORNADO T2 pump against competing rotary lobe designs will find the following features decisive. The NETZSCH NEMO TORNADO T2 pump is engineered to deliver dependable performance across a broad range of demanding industrial duties. Its key features include:

• Metal housing with replaceable elastomer liner, protecting the pump body from abrasive and corrosive media while keeping repair costs low.
• Integrated pulsation reduction system (PRS) that delivers constant, low-pulsation flow and reduces pipeline vibration and noise.
• Gearbox-free synchronous toothed timing belt drive, removing gear lubrication points and a major source of routine maintenance.
• Full service-in-place design with flange-to-flange access, cutting maintenance downtime compared to conventional lobe pumps.
• Intermittent dry-run capability and reliable self-priming performance for demanding startup and upset conditions.
• Large ball passage for handling solids up to 70 mm, suited to slurries, fibrous material, and viscous media.
• Flow capacity in direct proportion to rotation speed, enabling precise, repeatable metering and dosing.
• Compact, space-saving construction with high power density, ideal for skid packages and retrofit installations.

Industrial Applications

The NETZSCH NEMO TORNADO T2 rotary lobe pump is deployed wherever process plants need to move abrasive, corrosive, fibrous, or shear-sensitive media reliably and with minimal maintenance burden. Typical duties include sludge and slurry transfer in municipal and industrial wastewater treatment, chemical dosing and transfer in petrochemical processing, viscous fluid handling in food and beverage manufacturing, and general process transfer across pulp, paper, and mining operations. Its ability to run dry intermittently and handle particle sizes up to 70 mm makes it a preferred choice for operators who need one pump platform to cover a wide envelope of fluid conditions without switching pump technologies.

As the officially authorized partner for NETZSCH, Seven Star LLC distributes the NEMO TORNADO T2 pump to desalination plants, district cooling operators, oil and gas facilities, and municipal utilities across Oman and the GCC, including the industrial zones of Sohar and Salalah. Regional engineering teams specifying rotary lobe pumps for RO pretreatment, sludge dewatering feed, or chemical transfer duties can source genuine NETZSCH equipment, spare liners, and technical support locally rather than importing through third-party channels, shortening lead times for both new installations and urgent replacement parts across the Sultanate of Oman.

Technical Specifications

Engineers specifying the NETZSCH NEMO TORNADO T2 pump for a new installation should reference the table below, which summarizes the principal specifications of the NETZSCH NEMO TORNADO T2 rotary lobe pump; exact performance figures vary by selected pump size and elastomer/liner combination.

Call To Action

Ready to order the NETZSCH NEMO TORNADO T2 pump for your facility? Seven Star LLC supports formal RFQ submissions, technical datasheet requests, and regional warehouse stock inquiries for the NETZSCH NEMO TORNADO T2 rotary lobe pump. As the authorized partner for NETZSCH in Oman and the GCC, our instrumentation and process equipment division can advise on pump sizing, liner material selection, and seal configuration for your specific duty point. Contact Seven Star LLC today to request a formal quotation, technical datasheet, or to discuss stock availability for the NEMO TORNADO T2 pump and full NETZSCH TORNADO pump range across Muscat, Sohar, Salalah, and the wider Sultanate of Oman.
