Brand: KSB

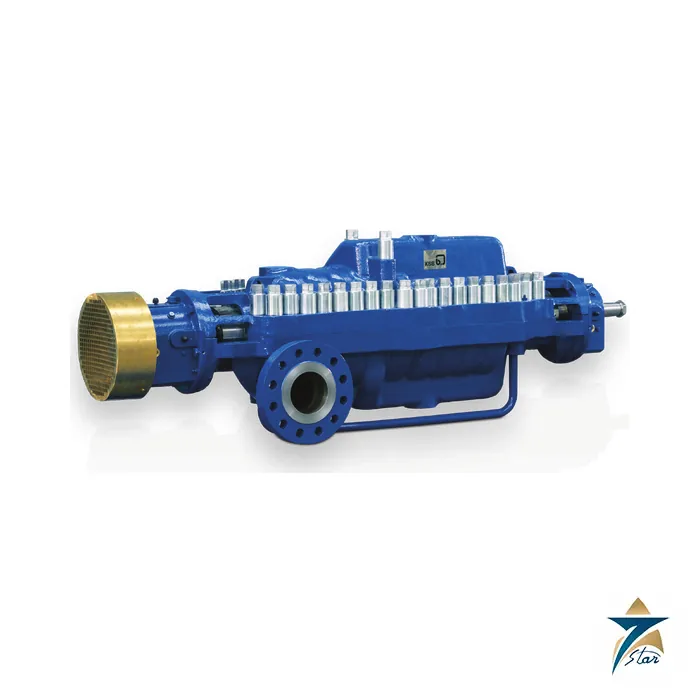

KSB CHTRa Heavy-Duty BB3 Multistage Process Pump to API 610
Description
Axially split multistage pump for high-pressure oil and gas duties
The KSB CHTRa is a heavy-duty BB3 process pump to API 610 / ISO 13709. It is an axially split, multistage, between-bearings pump available in a range of hydraulic sizes with numerous stage counts and material combinations. KSB lists oil and gas, energy, water and wastewater, mining and metal production as industries, and describes it as widely used in other demanding applications that need uncompromising reliability.
An opposed impeller arrangement balances axial thrust, and the first stage can be supplied as a single or double-suction impeller to suit low NPSH duties.
Technical specifications
| Parameter | Specification |
|---|---|
| Manufacturer | KSB SE and Co. KGaA, Frankenthal, Germany |
| Type | CHTRa, axially split, multistage, between-bearings BB3 pump |
| Standard | API 610 / ISO 13709 (latest BB3 design requirements) |
| Nozzle size | DN 80 to 300 (NPS 3 to 12) |
| Capacity, 50 Hz | Up to 1200 m3/h (5283 US gpm) |
| Capacity, 60 Hz | Up to 1400 m3/h (6164 US gpm) |
| Total manometric head | Up to 1550 m (5100 ft) |
| Pressure | Up to 155 bar (2220 psi) |
| Temperature | Up to 205 C (400 F) |
| Speed | Up to 6000 rpm |
| Specific gravity | 0.7 or higher; down to 0.5 on customer request |
| Standard flanges | ASME B16.5 Class 900; higher pressure options; ASME, DIN, ISO and JIS flange options |
| Bearings | Radial ball and ball thrust as standard; ball/sleeve and sleeve/tilting-pad options |
| Materials | API 610 material options as standard; NACE and non-metallic wear parts available |
| Note | A tailored pump design can be supplied if conditions exceed the data |
Maintenance and reliability features
Suction and discharge nozzles are integrally cast in the bottom casing half, so pipework does not need to be removed for rotor inspection, and nozzle positions can optionally be changed. Integrally flanged auxiliary connections remove the need for welding on auxiliary connections and bracing on stub pipes. A robust 360 degree mounting flange gives low vibration and long bearing life, and the pump complies with API 610 regarding nozzle loads. A modern machining process gives a uniform flow around the hydraulic profile in the casing.
Selecting a CHTRa pump
For an enquiry collect flow, total head, fluid and specific gravity, suction pressure and NPSH available, operating and maximum temperature, material class and any NACE requirement, plus the driver and speed. The pump is offered with numerous stage counts, so the head requirement fixes the hydraulic size and number of stages.
Documents and quotation
The operating data are series maxima, not guarantees for every size. Confirm the leaflet edition (01.24) with current documentation for your project.
The attached KSB leaflet is the manufacturer document for the CHTRa and lists the technical data used above. Seven Star LLC, an independent supplier in Muscat, quotes KSB pumps against your duty data. Browse Pumps for related equipment, or compare with the KSB Omega axially split volute casing pump.
Datasheets & Documents
- Brochure KSB CHTRa BB3 multistage process pump leaflet (EN, KSB, 01.24) Download
Reviews (0)
About brand
Pumps and valves have been the whole business of KSB since 1871, and the Frankenthal company's type series names are a fixture on nameplates in water, building services, energy and process plants. Seven Star LLC lists KSB pump families including Etanorm, Movitec, Multitec and Omega, and supplies KSB pumps and spare parts to operators and contractors in Oman and the GCC, matching each request to the manufacturer's documentation.
KSB pump series we list
- Etanorm: horizontal single-stage volute casing pump with ratings and main dimensions to EN 733, back pull-out design, replaceable casing wear rings.
- Movitec: vertical multistage high-pressure pump in ring-section design, with suction and discharge nozzles of the same diameter in line.
- Multitec: multistage ring-section pump for horizontal or vertical mounting, built in materials from cast iron to duplex stainless steel.
Ordering KSB pumps and parts: what we need
For a spare part, send the type series and size, the KSB order number and serial number from the nameplate, and the part number from the sectional drawing. For a new pump, give flow, head, liquid, temperature, suction conditions, material preference, and motor voltage and frequency. Mechanical seal code and impeller diameter matter on replacements, because one pump size is built in many variants.
Browse KSB products by category: Pumps.
Related products
Frequently Asked Questions
What does BB3 mean?
An API 610 between-bearings, axially split, multistage pump.
What is the maximum head?
Up to 1550 m total manometric head.
How is axial thrust balanced?
By an opposed impeller arrangement.
Which flange class is standard?
ASME B16.5 Class 900, with higher pressure and other flange standards available.
Which temperature is the limit?
Up to 205 C (400 F).
