Klinger KLINGERSIL C-4430 Gasket Sheet

Name: Klinger KLINGERSIL C-4430 Gasket Sheet – Datasheet & Quote
Brand: Klinger
SKU: C-4430

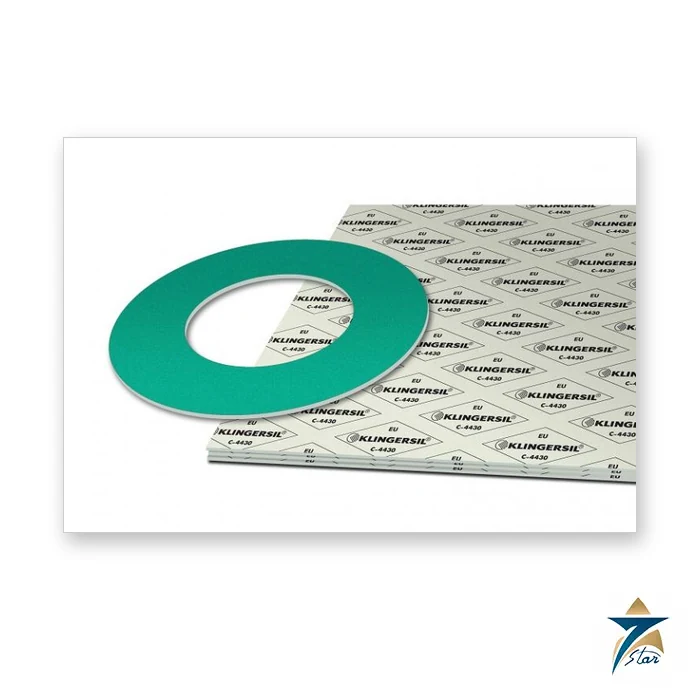

Synthetic-fibre sheet built for hot water and steam duty

KLINGERSIL C-4430 is the Klinger fibre sheet chosen when stress retention at temperature matters. It pairs synthetic fibres, described on the product page as a synthetic and glass fibre combination, with an NBR binder, and Klinger summarises it as having outstanding stress relaxation and resistance to hot water and steam.

Besides water and higher-temperature steam, the datasheet lists oils, gases, salt solutions, fuels, alcohols, moderate organic and inorganic acids, hydrocarbons, lubricants and refrigerants. The stated benefits are suitability for high-temperature steam and water, better resistance against hydrocarbons and a broad media range, in a dimensionally stable sheet.

Technical specifications

Parameter	Specification
Manufacturer / model	Klinger (Rich. Klinger Dichtungstechnik), KLINGERSIL C-4430
Basis composition	Optimum combination of synthetic fibres bonded with NBR (Klinger names synthetic and glass fibres on the product page)
Colour	White or green
Sheet size	1000 x 1500 mm, 2000 x 1500 mm
Thickness	0.5, 1.0, 1.5, 2.0, 3.0 mm
Tolerances	Thickness per DIN 28091-1; length and width plus or minus 50 mm
Certificates and approvals as printed	Oxygen-tested, DIN-DVGW, DVGW H2-ready (ZP 5123), DIN 16421 (W 270), DIN 30653 (VP 401), KTW-BWGL, WRAS approval, TA-Luft (Clean air), DNV approval, SVGW approval, Fire-Safe acc. to DIN EN ISO 10497 and ISO 19921
Industries listed	General industry, chemical, oil and gas, energy, infrastructure, pulp and paper, marine, automotive, food and beverage
Compressibility, ASTM F 36 J (2.0 mm)	9 %
Recovery, ASTM F 36 J	55 %
Stress relaxation, DIN 52913, 50 MPa, 16 h	39 MPa at 175 °C; 35 MPa at 300 °C
Stress relaxation, BS 7531, 40 MPa, 16 h at 300 °C	31 MPa
Klinger cold/hot compression, 50 MPa, thickness decrease	8 % at 23 °C; 11 % at 300 °C
Tightness, DIN 28090-2	0.05 mg/(s x m)
Specific leak rate, VDI 2440	2.13E-05 mbar x l/(s x m)
Thickness increase after immersion, ASTM F 146	3 % (oil IRM 903, 5 h at 150 °C); 5 % (fuel B, 5 h at 23 °C)
Density	1.8 g/cm3
Thermal conductivity	0.38 W/mK
Classification, BS 7531:2006	Grade AX
ASME code sealing factors, 2.0 mm, tightness class 0.1 mg/(s x m)	y 20 MPa, m 1.6
Chemical resistance chart in datasheet	A (small or no attack) for paraffinic hydrocarbon, motor oil, alcohol, water, diluted acid and diluted base; B (weak to moderate attack) for motor fuel and mineral lubricants; C (strong attack) for aromates, chlorinated hydrocarbon fluids, ketone and ester

All values are typical values for a 2.0 mm sheet as printed in the Klinger datasheet; other thicknesses can differ.

What separates C-4430 from the other KLINGERSIL grades

The figures explain the positioning. In the DIN 52913 test the sheet still holds 35 MPa after 16 hours at 300 °C, against 25 MPa for C-4400 and 20 MPa for C-4324, and its hot compression at 300 °C is 11 %, about half of the 20 to 25 % printed for those two sheets. That means less bolt load is lost as the joint heats and cools, which matters on steam lines and boiler-feed pipework.

Two approval entries stand out: WRAS approval for water contact, and Fire-Safe listings to both DIN EN ISO 10497 and ISO 19921. The y factor of 20 MPa is higher than for C-4400, so allow for the bolt load needed to seat the sheet.
