Garlock GYLON Style 3510 PTFE Gasket Sheet

Name: Garlock GYLON Style 3510 PTFE Gasket Sheet – Datasheet & Quote
Brand: Garlock
SKU: Style 3510

Barium-sulfate PTFE sheet for caustics, chlorine and steam

GYLON Style 3510 is the off-white barium-sulfate-filled PTFE sheet in Garlock’s GYLON line. Garlock lists strong caustics, moderate acids, chlorine, gases, monomers, steam, hydrocarbons, cryogenics and aluminium fluoride as the media it suits.

The features Garlock stresses are a tighter seal, improved performance over conventional PTFE, reduced creep relaxation and excellent bolt-torque retention, together with some of the largest sheet sizes in the industry and improved material utilisation that reduces waste. Branding and colour coding are meant to prevent misapplication. It serves the same industries as the other GYLON styles, from chemical and pharmaceutical to power generation and mining.

Technical specifications

Parameter	Specification
Manufacturer / style	Garlock, GYLON Style 3510
Composition	PTFE with barium sulfate
Colour	Off-white
Fluid services	Strong caustics, moderate acids, chlorine, gases, water, steam, cryogenics, hydrocarbons and aluminum fluoride
Temperature, minimum / ideal operating limit / maximum	-450 °F (-268 °C) / 400 °F (204 °C) / 500 °F (260 °C)
Pressure, minimum / ideal operating limit / maximum	Full vacuum / 750 psig (52 bar) / 1200 psig (83 bar)
P x T maximum	350,000 psig x °F (12,000 bar x °C) for 1/32 and 1/16 in; 250,000 (8,600) for 1/8 in
Specifications printed	ABS (American Bureau of Shipping); FDA 21 CFR 177.1550; will not support flame or bacterial growth
Compressibility, ASTM F36	4 to 10 %
Recovery, ASTM F36	40 %
Creep relaxation, ASTM F38	11 %
Tensile strength across grain	2000 psi (13.8 N/mm2)
Specific gravity / density	2.80
Design factors, ASTM F586 (m; y)	1/16 in and under: m 2.0, y 2350 psi (16.2 N/mm2); 1/8 in: m 2.0, y 2500 psi (17.2 N/mm2)
Gasket constants, ROTT	1/16 in: Gb 289, a 0.274, Gs 6.61×10-11; 1/8 in: Gb 444, a 0.332, Gs 1.29×10-2
Sealing characteristics	ASTM F37B Fuel A at 1000 psi (7 N/mm2) gasket load and 9.8 psig (0.7 bar): 0.04 ml/hr; DIN 3535 nitrogen at 4640 psi (32 N/mm2) and 580 psig (40 bar): less than 0.015 cc/min

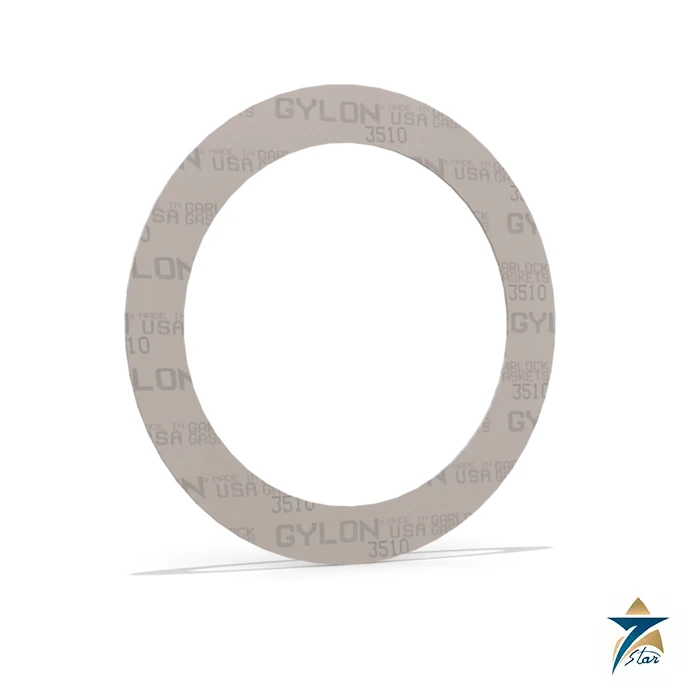

Catalogue example on garlock.com	0.040 in x 60 x 60 in sheet (1.0 x 1524 x 1524 mm), off-white, branded

Values are the typical properties printed in the Garlock spec sheet (August 2023). Garlock marks them as a general guide.

Where Style 3510 differs from Style 3504 and 3500

The datasheet shows a harder, denser sheet than 3504: specific gravity 2.80, compressibility only 4 to 10 %, creep relaxation 11 % and a y factor of 2350 psi (16.2 N/mm2) up to 1/16 in with m 2.0. The lower creep relaxation helps it keep load on a bolted joint, and the leakage figure of 0.04 ml/hr (Fuel A) is lower than for 3504 or 3500.

The maximum pressure is printed as 1200 psig (83 bar), against 800 psig for Style 3504, with the same temperature window of -450 to 500 °F. Together with the caustic and chlorine media listing, that suits it to caustic soda and chlorine lines, subject to the notes on the datasheet that cases close to the limits should be referred to Garlock Applications Engineering.

Related Garlock gasket sheets

The family comparison below shows where each GYLON filler is positioned.

Garlock style	Composition	Colour	Media and use printed by Garlock
GYLON Style 3504	PTFE with aluminosilicate microspheres	Blue	Many acids, some caustics, hydrocarbons, solvents, hydrogen peroxide, refrigerants, cryogenics
GYLON Style 3500	PTFE with silica	Fawn	Strong acids (except hydrofluoric), solvents, hydrocarbons, water, steam, chlorine, cryogenics
GYLON Style 3530	PTFE with graphite	Black	Monomer service, cryogenics, concentrated hydrofluoric acid, volatile hazardous air pollutants
GYLON Style 3545	Microcellular PTFE with rigid PTFE core	White	Low bolt load and glass-lined equipment, strong acids and caustics, hydrocarbons

Documents, ordering details and quotation

Tell us the caustic concentration and temperature when asking for Style 3510. Send the fluid, its concentration, working and hydrotest pressure, temperature range, flange class and face finish, bolt material and the thickness and format (sheet or cut gasket) that you want. Garlock states that its figures are based on ANSI raised-face flanges at its preferred torque and that cases near the pressure, temperature or P x T limits should be referred to its engineers, so please allow time for that check. See also gaskets, seals and pipe fittings.
