Brand: Kärcher

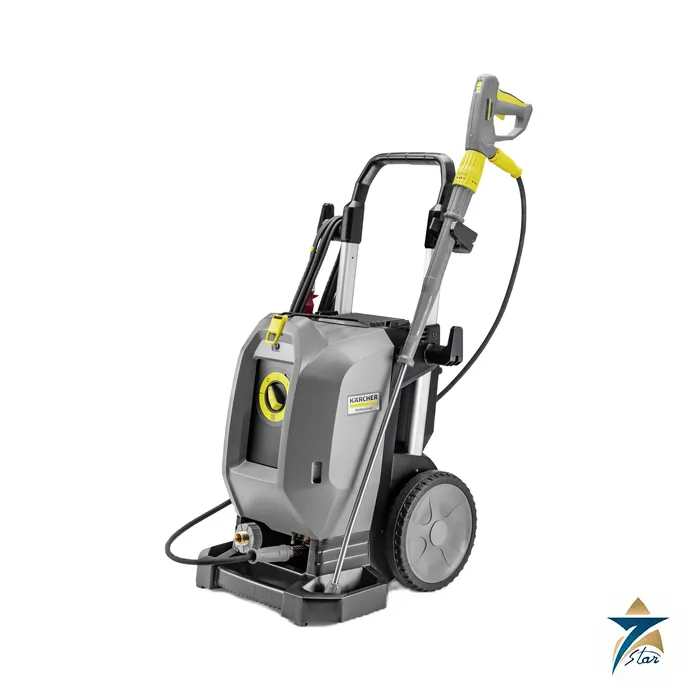

Kärcher HD 10/25-4 S Plus Cold Water High-Pressure Cleaner
Description
Upright cold water pressure for heavy industrial soiling
The Kärcher HD 10/25-4 S Plus is a three-phase cold water high-pressure cleaner from the super class of the professional range. Kärcher builds it around a four-pole motor with air and water cooling and a three-piston axial pump with stainless steel pistons, and gives it a compact upright layout in which motor and pump are stacked vertically to keep the footprint small.
Among the HD super-class machines it is the high-pressure version: Kärcher prints a working pressure of 80 to 250 bar with a 280 bar maximum, against a flow of 500 to 1000 litres per hour. That pressure-led profile suits baked-on mud, scale, grease and coating residue on equipment, chassis, plant floors and fabricated steel, where the dirt has to be broken loose rather than rinsed away.
Technical specifications
| Parameter | Specification |
|---|---|
| Order number | 1.286-960.0 |
| EAN code | 4054278915500 |
| Number of current phases | 3 |
| Voltage | 376 – 424 V |
| Frequency | 50 Hz |
| Flow rate | 500 – 1000 l/h |
| Inlet temperature | max. 60 °C |
| Working pressure | 80 – 250 bar |
| Maximum pressure | 280 bar / 2.8 MPa |
| Connected load | 8.8 kW |
| Power cable | 5 m |
| Nozzle size | 047 |
| Water inlet | 1 inch |
| Colour | Anthracite |
| Weight (with accessories) | 70.3 kg |
| Weight including packaging | 78.6 kg |
| Dimensions (L x W x H) | 607 x 518 x 1063 mm |
Values are taken from the Kärcher product information sheet dated 2026-09-18. Kärcher also notes that this machine requires instruction before use.
Scope of supply and built-in equipment
The delivery includes an EASY!Force Advanced spray gun with soft-grip padding, a 10 m Premium quality high-pressure hose specified as DN 8 and 315 bar, a 1050 mm spray lance, a power nozzle, a Dirt blaster rotary nozzle and Servo Control. EASY!Force uses the recoil of the jet to cancel the holding force, which matters on shifts with long spraying periods, and Servo Control lets the operator adjust pressure and water quantity at the gun.
Built-in equipment printed by Kärcher includes the pressure cut-off, an integrated water fine filter, a sight glass for the pump oil level, a brass water inlet and an LED operating status indicator. Kärcher also states a suction feature and water temperatures of up to 60 °C.
| Accessory (as printed) | Order no. |
|---|---|
| Servo Control, 750 l/h to 1100 l/h | 4.118-008.0 |
| Spray lance, 1050 mm, rotatable | 4.112-000.0 |
| Dirt blaster Vibrasoft, 050 | 4.114-066.0 |
| Power nozzle 25 degrees, 047 | 2.113-009.0 |
| High-pressure hose, 15 m, ID 8, 315 bar | 6.110-030.0 |
| High-pressure hose Longlife, 10 m, ID 8, 400 bar | 6.110-038.0 |
| Flexible lance, 1050 mm | 4.112-035.0 |
Choosing between the HD super-class variants
The numbers in the model name follow the printed data: 10 for the 1000 l/h flow ceiling and 25 for the 250 bar working-pressure ceiling, while the 4 refers to the four-pole motor. Kärcher offers a sibling model on the same upright body with different flow and pressure settings, so the selection is mostly a question of whether the job needs pressure or flushing volume.
| Kärcher model | Flow rate (l/h) | Working pressure | Connected load |
|---|---|---|---|
| HD 10/25-4 S Plus (this page) | 500 – 1000 | 80 – 250 bar, max. 280 bar | 8.8 kW |
| HD 13/18-4 S Plus | 700 – 1300 | 50 – 180 bar, max. 250 bar | 8.8 kW |
| HD 7/17 M Plus | 700 | 170 bar, max. 255 bar | 4.2 kW |
| HD 6/13 C Plus | 590 | 130 bar, max. 190 bar | 2.9 kW |
Documents and quotation
The Kärcher product information sheet (18 pages) is attached as the datasheet and carries the full accessory list with order numbers. Before ordering, confirm the supply (three-phase, 376 to 424 V, 50 Hz), the water inlet and temperature, the hose length and the nozzle set needed for the surfaces being cleaned.
See the wider range of pumps and pressure equipment on our catalogue, or send the model name and order number for a quotation.
Datasheets & Documents
- Datasheet Kärcher HD 10/25-4 S Plus product information sheet 1.286-960.0 (2026-09-18) Download
Reviews (0)
About brand
Kärcher is a German cleaning technology company headquartered in Winnenden near Stuttgart. It was founded in 1935 by the inventor Alfred Kärcher, who started in heating technology, and in 1950 introduced what it describes as Europe’s first hot water high-pressure cleaner. The company has remained family-owned to this day.
Professional cleaning equipment
The professional range covers cold and hot water high-pressure cleaners, ultra-high pressure cage models, hot water generators, industrial and safety vacuum cleaners, dry ice blasting machines, scrubber driers and industrial sweepers. Each model is documented by a product information sheet with technical data, scope of supply and accessories.
Kärcher machines at Seven Star LLC
Seven Star LLC lists selected high-pressure cleaners, industrial vacuums, a dry ice blaster and an industrial sweeper for workshops, plants and maintenance teams in Oman and the Gulf. Each page quotes the manufacturer data as printed and links the official document, so supply, water temperature, flow and accessories can be checked before a request for quotation.
How to request a quotation
Send the model name and order number, the electrical supply or fuel, the surfaces to be cleaned and any accessories needed. Seven Star LLC prepares a quotation from the specification and confirms availability and lead time with the supplier.
Related products
Frequently Asked Questions
What pressure does the Kärcher HD 10/25-4 S Plus deliver?
Kärcher prints a working pressure of 80 to 250 bar and a maximum of 280 bar, with a flow of 500 to 1000 l/h.
What electrical supply does it need?
Three-phase, 376 to 424 V at 50 Hz, with a connected load of 8.8 kW and a 5 m power cable.
What is the maximum inlet water temperature?
The datasheet lists an inlet temperature of up to 60 °C; the machine is also stated to have a suction feature.
What is supplied with the machine?
An EASY!Force Advanced gun, a 10 m DN 8 315 bar hose, a 1050 mm lance, a power nozzle, a Dirt blaster and Servo Control.
How heavy is the HD 10/25-4 S Plus?
70.3 kg with accessories and 78.6 kg including packaging, in a 607 x 518 x 1063 mm upright body.
