Hughes EXP-20GS/45G Safety Shower with Body Spray and Eye Wash

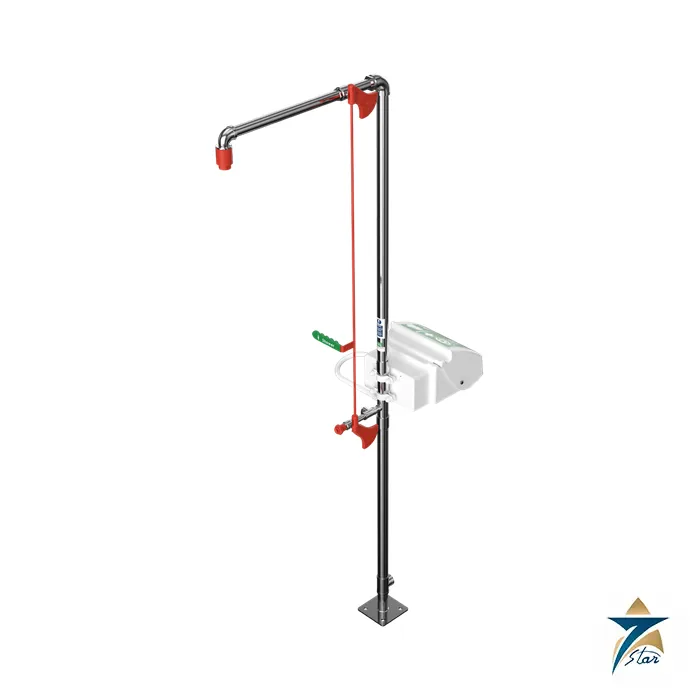

The Hughes EXP-20GS/45G adds an integral body spray to the standard overhead shower and ASA closed bowl eye/face wash, so a casualty is rinsed from head and from the lower body at the same pull of the handle.

Overhead drench plus lower-body spray

Chemical splashes often land on legs and clothing as well as the face. In this unit the body spray is triggered when the pull rod starts the shower, directing water at the lower part of the body. The datasheet gives a combined shower and body spray flow of 115 litres per minute (30 US gal/min) and 12 litres per minute for the eye wash, against the ANSI Z358.1-2014 minimum of 76 litres per minute for the shower alone.

The ASA eye wash is chemical and UV resistant, with a lid that protects the bowl and diffusers. The unit is supplied with a safety shower and eye/face wash sign, and the datasheet notes it is also available with a top water inlet.

Technical specifications

Choosing it over the plain shower and eye wash

Select the body spray version when the process involves splashing liquids at waist height, such as decanting, sampling or pump maintenance, and when the supply can carry the higher combined flow. The plain EXP-18GS/45G has the same height and inlet but a smaller footprint, 782 mm deep against 1095 mm here, so check the floor space and the 400 mm clearance around the shower head recommended in the EN15154 summary.

As with other unheated units, the water temperature follows the supply. The standards summaries ask for tepid water between about 15 and 38 C, so where the cold main runs warm or cold a thermostatic mixing valve, listed as an option, is the usual answer.

Options and what to confirm before ordering

Listed options are a foot panel or treadle, sign, lighting, audible and visual alarm, thermostatic mixing valve, pressure reducing valve, shower rose, handheld eye, face and body shower, modesty curtain and GRP safety barriers. Confirm that the main can supply the combined flow, the inlet position, drainage of the discharged water and the finish. The unit is not temperature controlled in its standard form.

How the Hughes EXP-20GS/45G works

A person pulls the handle and the stay-open ball valve lets water flow. Water falls from the overhead shower and sprays at the lower body at the same time. For the eyes, the person pulls the lid down and the eye wash starts. Water keeps flowing until the valve is closed.

Where the EXP-20GS/45G is used

• Chemical decanting areas
• Sampling points
• Pump maintenance areas
• Laboratories
• Process plant work areas

Selection checklist for the EXP-20GS/45G

• Body spray need
• Water supply flow
• Water supply pressure
• Inlet position, bottom or top
• Floor space
• Ambient temperature
• Water temperature
• Signage

Installation, commissioning and maintenance notes for the EXP-20GS/45G

Fix the base to the floor and connect the 1 1/4 in water inlet. Keep a clear path to the unit. Flush the line before first use. Test the shower and the eye wash each week. Keep the area around the unit free of objects.

Requesting a quotation for the Hughes EXP-20GS/45G

Please send the water supply data and the inlet position you need. Seven Star LLC serves industrial customers in Oman and the GCC and replies with a quotation based on the information provided.

EXP-20GS/45G unit type

It is a safety shower with a body spray and an eye and face wash.

EXP-20GS/45G body spray

The body spray starts when the shower rod is pulled.

EXP-20GS/45G combined flow

The shower and body spray flow is 115 litres per minute.

EXP-20GS/45G eye wash flow

The eye wash flow is 12 litres per minute.

EXP-20GS/45G pipework

The pipework and fittings are stainless steel.

EXP-20GS/45G valve

The valve is a full bore, stay open stainless steel ball valve.

EXP-20GS/45G shower nozzle

The shower nozzle is injection moulded nylon 6.

EXP-20GS/45G eye wash bowl

The eye wash bowl is ASA, resistant to chemicals and UV.

EXP-20GS/45G water inlet

The inlet is 1 1/4 in female BSP.

EXP-20GS/45G operating pressure

The operating pressure is 2 to 6 bar g.

EXP-20GS/45G ambient temperature

The ambient range is 5 to 35 degrees C.

EXP-20GS/45G dimensions

The size is 497 x 1095 x 2320 mm.

EXP-20GS/45G weight

The weight is 20 kg.

Safety shower records for the EXP-20GS/45G

Record the weekly test date, the flow check and the person who tested it.

Choosing the right EXP-20GS/45G inlet

Choose the bottom or top inlet to suit the pipe route on site.

Documents and quotation

Two Hughes documents are linked from this page: the English datasheet for EXP-20GS/45G and the installation, operation and maintenance guide for its family, both unaltered. Seven Star LLC is an independent supplier in Muscat and prepares quotations for EXP-20GS/45G and related Hughes models once the request states the supply pressure, the floor and drain arrangement, and the standard the project specification calls for. More site safety equipment is listed under Safety and PPE.
