Brand: Hughes Safety Showers

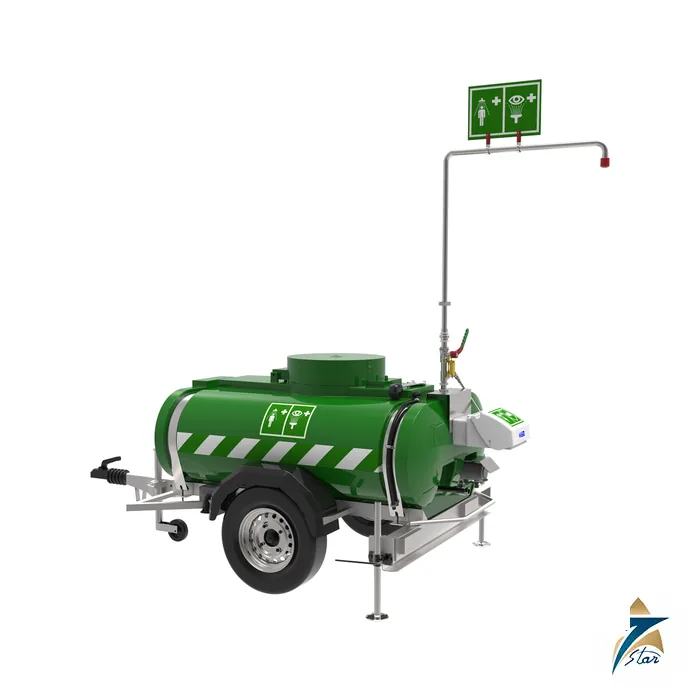

Hughes STD-MH-P-1200L Towable Heated 1200 L Mobile Safety Shower
Description
The Hughes STD-MH-P-1200L is a towable, self-contained heated safety shower holding 1200 litres, with a closed bowl eye/face wash, for temporary work fronts and projects that move.
A 15 minute shower on a trailer
Employees at risk of exposure to hazardous substances need a shower wherever they work. This unit carries 1200 litres of water on a galvanised mild steel chassis with a rubber torsion beam axle, auto reverse brakes, a 40 mm eye coupling, a break-away cable, a parking brake, a jockey wheel, mud guards and a lighting board, so it can be towed behind a suitable vehicle.
The datasheet says it is designed to meet EN and ANSI standards and can deliver a continuous flow of tepid water for over 15 minutes at 76 litres per minute. An immersion heater keeps the water tepid, a pump drives the flow, and an optional insulated jacket is advised for colder months. The shower starts with a push down lever and the eye wash with the lid.
Technical specifications
| Parameter | Specification |
|---|---|
| Model | STD-MH-P-1200L |
| Pipework and fittings | Stainless steel |
| Tank | Polyethylene, 1200 L (317 US gal) |
| Chassis | Galvanised mild steel |
| Axle and suspension | Avonride rubber torsion beam axle with 200 x 50 auto reverse brakes |
| Coupling | Avonride auto reverse coupling, 40 mm eye, break-away cable, parking brake lever |
| Ancillaries | Moulded mud guards, front telescopic jockey wheel, lighting board, rear propstand options |
| Shower nozzle | Machine moulded nylon 6 |
| Eye wash | ASA |
| Electrical, flameproof | Pump 0.9 kW, 230 V; immersion heater 3 kW, 230 V; trace tape 20 W if fitted |
| Electrical, non-flameproof | Pump 0.4 kW, 230 V; immersion heater 3 kW, 230 V (or 1.7 kW, 110 V); trace tape 20 W if fitted |
| Filling access | 18 in hinged manlid cover |
| Operating pressure | 2 to 6 bar g (29 to 87 psi) |
| Minimum flow rates | Shower 76 L/min (20 US gal/min); eye wash 12 L/min (3 US gal/min) |
| Ambient temperature | 0 to 35 C (32 to 95 F) |
| Operation | Shower: push down lever; eye wash: pull lid down |
| Dimensions assembled (W x D x H) | 1530 x 3556 x 2770 mm (60.2 x 140 x 109.1 in) |
| Weight | Empty 260 kg (573 lb); full 1460 kg (3219 lb) |
Towing, power and filling
The tank holds 1200 litres, which at 76 litres per minute is about 15.8 minutes, consistent with the 15 minute duty the datasheet states. The heater and pump need a 230 V supply on site, so a generator or temporary distribution board has to be provided. The datasheet lists separate flameproof and non-flameproof electrical ratings, so state the area classification when requesting a quotation.
Filling is through an 18 inch hinged manlid, so a water bowser or hose connection and a plan for refilling after every use are needed. Towing needs a vehicle with a suitable hitch, and the lighting board and breakaway cable are there for road or site-road movement; check local road-use requirements. The datasheet lists an ambient range of 0 to 35 C, and the optional insulated jacket is the manufacturer’s answer for the colder end.
| Hughes model | Configuration | Typical use |
|---|---|---|
| STD-40K/45G | Mobile 114 L shower and eye wash | Stand-by and shutdown cover |
| PORTAflex 300/16e | Portable decontamination shower, 16 nozzles | Hydrant-fed response kit |
| STD-68G | 45 L portable gravity fed eye wash | Table or wall mounted back-up |
| STD-58G | 28 L portable stainless eye wash | Secondary eye rinse |
Options and what to confirm before ordering
The page lists an insulated jacket as the only fitting for this model. Plan transport for 1530 x 3556 x 2770 mm and a full weight of 1460 kg, and confirm the supply voltage, whether flameproof electrical equipment is needed, the towing vehicle and the refill source. The manufacturer also offers the unit for hire.
How the Hughes STD-MH-P-1200L works
The polyethylene tank holds 1200 litres of water. An immersion heater keeps the water tepid and a pump drives the flow to the shower and the closed bowl eye wash. Pushing down the lever starts the shower and pulling the lid down starts the eye wash. The unit is towed to where the work is.
Where the STD-MH-P-1200L is used
- Temporary work fronts
- Moving projects
- Pipeline and construction sites
- Shutdown and turnaround areas
- Sites without a fixed shower
Selection checklist for the STD-MH-P-1200L
- Hazardous substances present
- Towing vehicle
- Electrical supply voltage
- Flameproof or non-flameproof electrics
- Ambient temperature
- Need for an insulated jacket
- Ground conditions
- Refill arrangements
Installation, commissioning and maintenance notes for the STD-MH-P-1200L
Tow the unit to a level position and apply the parking brake. Fill the tank through the manlid and connect the electrical supply. Test the pump, the heater, the shower and the eye wash before work starts. Check the tyres, the coupling and the lighting board before every tow.
Requesting a quotation for the Hughes STD-MH-P-1200L
Please send the site, the electrical supply, the area classification and the ambient temperature. Seven Star LLC serves industrial customers in Oman and the GCC and replies with a quotation based on the information provided.
STD-MH-P-1200L unit type
It is a towable heated mobile safety shower with a closed bowl eye and face wash.
STD-MH-P-1200L tank
The tank is polyethylene and holds 1200 litres, or 317 US gallons.
STD-MH-P-1200L chassis
The chassis is galvanised mild steel.
STD-MH-P-1200L axle
The axle is a rubber torsion beam type with auto reverse brakes.
STD-MH-P-1200L coupling
The coupling is a 40 mm eye with a break-away cable and a parking brake lever.
STD-MH-P-1200L towing fittings
It has a front telescopic jockey wheel, moulded mud guards and a lighting board.
STD-MH-P-1200L pipework
The pipework and fittings are stainless steel.
STD-MH-P-1200L shower nozzle
The shower nozzle is machine moulded nylon.
STD-MH-P-1200L eye wash
The eye wash is made of ASA plastic.
STD-MH-P-1200L flameproof electrics
The flameproof version uses a 0.9 kW pump and a 3 kW immersion heater at 230 V.
STD-MH-P-1200L non-flameproof electrics
The non-flameproof version uses a 0.4 kW pump and a 3 kW immersion heater at 230 V.
STD-MH-P-1200L low voltage heater
A 1.7 kW heater at 110 V is listed for the non-flameproof version.
STD-MH-P-1200L trace tape
A 20 W trace tape is listed when it is fitted.
STD-MH-P-1200L filling access
The tank is filled through an 18 inch hinged manlid cover.
STD-MH-P-1200L operating pressure
The operating pressure is 2 to 6 bar g.
STD-MH-P-1200L shower flow
The minimum shower flow rate is 76 litres per minute.
STD-MH-P-1200L eye wash flow
The minimum eye wash flow rate is 12 litres per minute.
STD-MH-P-1200L run time
At 76 litres per minute the full tank lasts about 15.8 minutes.
STD-MH-P-1200L ambient range
The ambient temperature range is 0 to 35 degrees C.
STD-MH-P-1200L jacket
An optional insulated jacket is advised for colder months.
STD-MH-P-1200L dimensions
The assembled size is 1530 x 3556 x 2770 mm.
STD-MH-P-1200L weight
The empty weight is 260 kg and the full weight is 1460 kg.
Safety shower records for the STD-MH-P-1200L
Record each test, each refill, the water temperature and the tow inspection.
Choosing the right STD-MH-P-1200L electrics
Choose the flameproof or non-flameproof version from the area classification where the unit will stand.
Documents and quotation
Two Hughes documents are linked from this page: the English datasheet for STD-MH-P-1200L and the installation, operation and maintenance guide for its family, both unaltered. Seven Star LLC is an independent supplier in Muscat and prepares quotations for STD-MH-P-1200L and related Hughes models once the request states where the unit will work, how it will be filled or connected, and the duration of cover required. More site safety equipment is listed under Safety and PPE.
Datasheets & Documents
Reviews (0)
About brand
Hughes Safety Showers is a UK manufacturer of emergency safety showers, eye/face washes and decontamination equipment, headquartered in Stockport, England. The company traces its origin to JD Hughes Fabrications, founded in 1950, which began to manufacture emergency shower and eye wash equipment specifically in 1968, and it is now part of the Justrite Safety Group.
Emergency showers and eye washes
The Hughes range covers indoor and outdoor tank fed and plumbed-in safety showers, plumbed and self-contained eye washes, mobile safety showers and portable decontamination showers, built to meet EN15154 and ANSI Z358.1-2014. Models are offered for cold climates, hot climates and hazardous areas, and the company brochure lists ISO 9001, ISO 14001 and ISO 45001 certification.
Hughes equipment at Seven Star LLC
Seven Star LLC lists selected Hughes safety showers and eye washes with the manufacturer datasheet for each model, so the configuration, water supply and temperature range can be checked before a request for quotation. State the hazard, supply pressure, ambient temperature range and any hazardous-area class when asking for a quotation.
Related products
Frequently Asked Questions
How much water does the STD-MH-P-1200L carry?
1200 litres (317 US gal) in a polyethylene tank.
How long can it run?
The datasheet states a continuous tepid flow for over 15 minutes at 76 L/min.
How is it moved?
It is towed using the supplied hitch, on a galvanised chassis with braked axle.
Does it need power?
Yes. The immersion heater is 3 kW at 230 V and a pump is fitted; ratings depend on flameproof or non-flameproof supply.
Is a cold weather option available?
An optional insulated jacket is advised for colder months.
