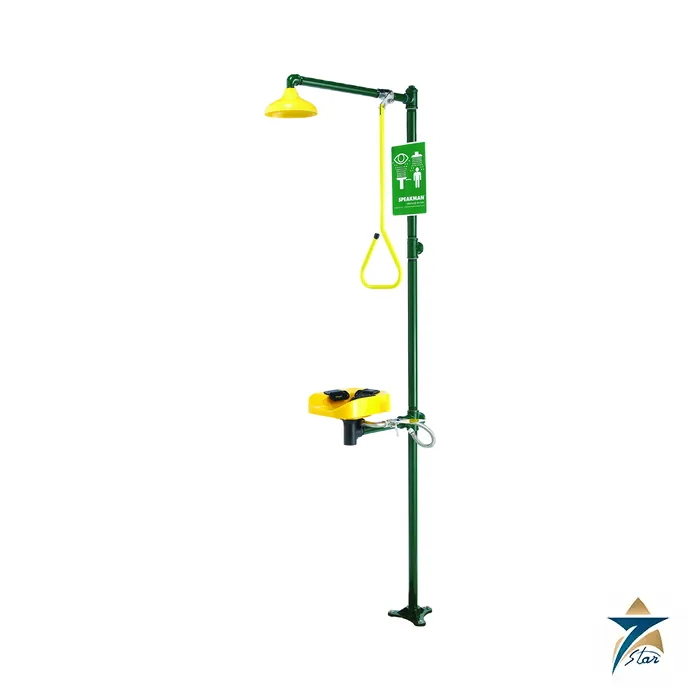

Speakman Optimus SE-1200 Emergency Shower with Eye/Face Wash

The Speakman Optimus SE-1200 is a complete floor-mounted emergency station: an emergency shower with an 8 in yellow plastic head and a pull rod, and an Optimus eye and face wash with a highly visible yellow ABS plastic bowl, on a powder-coated steel stanchion. The eye and face wash has a dual aerated eyewash and two individual face pads that together give 66 individual sprays, and a paddle handle on the side activates it.

The page lists 4.9 gpm at 30 psi for the eye and face wash and 20 gpm for the shower, with a 1-1/4 in NPT connection. The system is certified ANSI/ISEA Z358.1 per the maker, with top or side inlets so it can be tied into existing plumbing.

Technical specification

Selection and ordering guide

SE-1200 is the plastic-bowl combination in the Optimus line. The sheet groups it with SE-1250 and SE-1255 for installation, and the stand-alone wall-mounted version with a stainless bowl is the SE-1050 on this site. Choose the standard stanchion height or the ADA build, which swaps the pipe lengths and adds a pull rod extension (RPG47-0044 is the stainless extension rod named on the page). The top or side inlet is selected by plugging the unused tee outlet.

Installation and operation notes

Use thread locker or sealant on all threaded connections. Mount the floor flange, thread the drain and supply cross onto the pipe so that the side outlets face front and back and the 1/2 in male outlet points up at 45 degrees to the right, fit the tee, 1 in pipe, ball valve, elbow and showerhead, and fix the lever handle assembly and pull rod with the pin and cotter pin. For ADA installations add the pull rod extension with a machine screw and nylon nut. Thread the bowl assembly to the pipe, level and plumb, connect the flex hose to the ball valve and cross, connect an uninterruptible potable supply with at least 30 psi flowing, and connect an adequate drain. Test weekly and record on the supplied tag. Before servicing, shut off the water.

Applications in GCC industry

The yellow plastic bowl and powder-coated steel are suited to indoor chemical handling areas and covered plant locations, where a high-visibility station is more important than all-stainless construction. One stanchion carries both fixtures, so a single supply and drain serve the shower and the face wash, which suits dosing skids, battery rooms and bunded chemical stores.

Compatible items

The sheet names the pull rod extension for ADA height and the standard spare parts under the part list; Speakman strongly advises genuine parts only. A matching Optimus wall-mounted eye and face wash is available if a second eyewash is needed.

Installation and selection notes

The floor-mounted station needs a firm floor, a pipe connection of the right size and a drain or run-off plan. Choose top or side inlet according to the pipework, test the shower and eyewash regularly, and keep the path to the station clear and well signed.

Information needed for a quotation

Send the full model code, the quantity, the delivery location in Oman or the GCC, the site conditions and any accessories needed, so that the complete package can be quoted together.

Documents and supply information

The manufacturer data sheet is attached to this page and should be read together with the project specification before a purchase is confirmed. Ratings, flows, dimensions and certifications are quoted as printed on that sheet. Lead time, stock position and certificates available with the shipment are confirmed in the quotation, and we supply to Oman and the wider GCC region for industrial, utility and building services projects.

Frequently asked questions

What does the SE-1200 include?
An emergency shower with an 8 in yellow plastic head and an Optimus eye and face wash with a yellow ABS bowl on one stanchion.

What flows does it deliver?
The page lists 4.9 gpm at 30 psi for the eye and face wash and 20 gpm for the shower.

Can it be made ADA compatible?
Yes, the sheet gives an ADA installation using a shorter pipe and a pull rod extension, with spray heads at 33 to 45 in.

What supply is required?
An uninterruptible potable supply with at least 30 psi flowing pressure, top or side inlet, plus a drain connection.

What should I confirm before ordering?
Confirm the inlet position, the drain and the ADA requirement, then request a quotation with the part number SE-1200.

Documents and quotation

The Speakman instruction sheet 92-SE-1200-1255-05 covering SE-1200, SE-1250 and SE-1255 is attached to this page. Browse more products in Safety & PPE. Seven Star LLC is an independent supplier in Muscat; send the exact part number and quantity for a quotation, and confirm all ratings and approvals against the current manufacturer documents before ordering.
