Brand: Haws

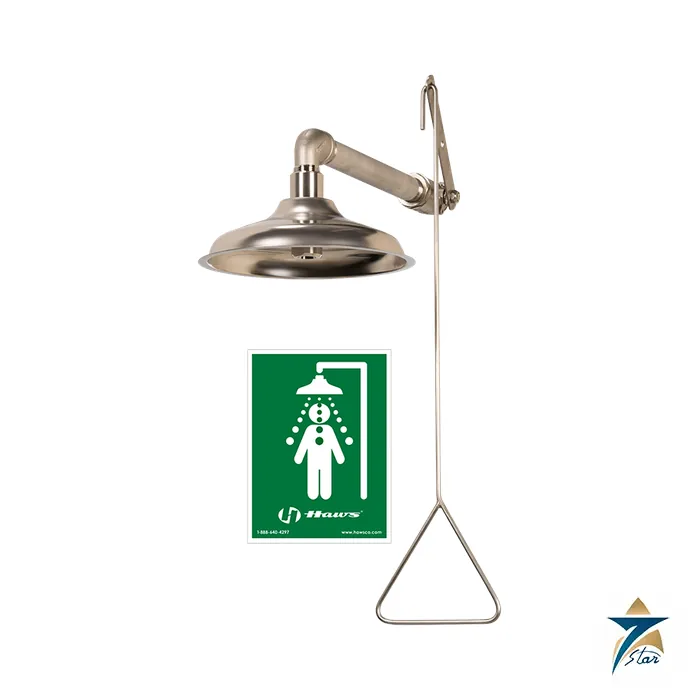

Haws 8133H AXION MSR Corrosion-Resistant Drench Shower
Description
8133H is the corrosion-resistant member of the Haws AXION MSR drench shower line: 1 in. Schedule 40 stainless steel pipe and fittings, a Type 316 stainless steel stay-open ball valve and a stainless steel showerhead with a 20 gpm flow control, mounted horizontally from a wall.
All-stainless water path for harsh atmospheres
Where a galvanized shower would suffer from salt air, washdown chemicals or acid fumes, Haws offers the 8133H with stainless steel throughout. The pipe and fittings are 1 in. Schedule 40 stainless steel, the ball valve is Type 316 stainless with a stainless steel ball and stem, and the pull rod is a 28 in. (71.1 cm) stainless triangular design.
The showerhead is the AXION MSR stainless steel hydrodynamic head; the valve assembly is pre-built and Haws lists a part number SP265 for it in the parts breakdown. The unit includes the universal emergency sign and the weekly test card.
Key features as printed in the datasheet
- 1 in. Schedule 40 stainless steel pipe and fittings.
- Type 316 stainless steel stay-open ball valve with stainless steel ball and stem.
- Stainless steel AXION MSR showerhead, 20 gpm flow control.
- 28 in. (71.1 cm) stainless steel triangular pull rod.
- Horizontal wall installation; pre-built valve assembly.
- Certified by CSA to meet the ANSI/ISEA Z358.1 Standard for Emergency Eyewash and Shower Equipment (as printed in the Haws specification sheet).
Technical specification
Model 8133H data as printed
| Parameter | Specification |
|---|---|
| Model | 8133H |
| Type | Horizontally mounted corrosion-resistant drench shower |
| Pipe and fittings | Schedule 40 stainless steel, 1 in. |
| Valve | Type 316 stainless steel stay-open ball valve; stainless steel ball and stem |
| Showerhead | AXION MSR hydrodynamic, stainless steel, 20 gpm flow control |
| Pull rod | Stainless steel, triangular handle, 28 in. (71.1 cm) |
| Supply | 1 in. NPT in the sheet; manual: female 1 in. IPS inlet |
| Recommended line | Minimum 1 in. IPS at 30-90 psi (2-6 ATM) flowing pressure |
| Drawing figures | 21 in. (533 mm); 11-1/2 in. (292 mm); 5-3/4 in. (146 mm); head height 82 in. minimum to 86-7/8 in. (2083 to 2207 mm) |
| Signage | 8 in. x 10-3/4 in. universal sign; test card |
| Approval wording | Certified by CSA to meet the ANSI/ISEA Z358.1 Standard for Emergency Eyewash and Shower Equipment (as printed in the Haws specification sheet) |
Optional items listed on the sheet
| Parameter | Specification |
|---|---|
| Model 9201E | AXION tempering valve, 31 gpm (117.3 L) |
| Model 9201H | Lead-free AXION tempering valve, 31 gpm (117.3 L) |
| Model 9001 | 1-1/4 in., 120 VAC emergency alarm and light system |
| Model 9010 | Shower test kit |
Selection and ordering guide
Choose the 8133H where corrosion, not floor space, drives the specification: chemical plants, offshore-type environments, wash-down areas and coastal sites. The 8123 uses a chrome-plated brass valve and is the lower-spec wall shower; this model replaces that valve with 316 stainless.
The sheet is specific that this version is designed for horizontal installation from a wall, unlike the 8123 which also allows ceiling and vertical use.
Installation and operation notes
The manual asks for a minimum 1 in. IPS line, 30-90 psi flowing pressure, an inlet filter if sediment is present, and a female 1 in. IPS inlet connection. For weak flow the checklist is the same short list used for stainless showers: shut-off valve, 30 psi, then the rubber flow control inside the showerhead.
The parts breakdown lists SP265 valve assembly, SP829SS shower head, SP177 sign and SP200 pull rod. Note the head-height range printed on the drawing (82 in. minimum to 86-7/8 in.).
Applications in Oman and the GCC
Salt-laden coastal air, sea-water cooling areas, desalination and chemical storage in the GCC are the usual places where stainless fittings are chosen over galvanized steel. The 316 valve is relevant for chloride-rich atmospheres, but the sheet does not state a chloride limit, so confirm the environment with the manufacturer if it is severe.
Pair the shower with an eyewash within the 10 second reach distance the guidance recommends.
Compatible accessories and related items
Related Haws items: 9201E and 9201H tempering valves, 9001 alarm, 9010 shower test kit, SP265 valve assembly. Compare with 8123 and 8100 on this site.
Frequently asked questions
What makes the 8133H corrosion resistant?
Schedule 40 stainless steel pipe and fittings and a Type 316 stainless steel ball valve, per the datasheet.
What flow does it give?
A 20 gpm flow control in the stainless steel showerhead.
How is it mounted?
Horizontally from a wall.
Is a lead-free tempering valve offered?
The sheet lists the 9201H lead-free AXION tempering valve, 31 gpm, as an option.
Is Seven Star LLC a Haws distributor?
No. Seven Star LLC is an independent supplier in Muscat that sources Haws products on request.
Documents and quotation
Download the official Haws specification sheet for 8133H from this page. As an independent supplier based in Muscat, Seven Star LLC supplies Haws items on request: use the quote form with the quantity you need. Check every value in the document against your own specification before you order. Browse similar items in the category.
