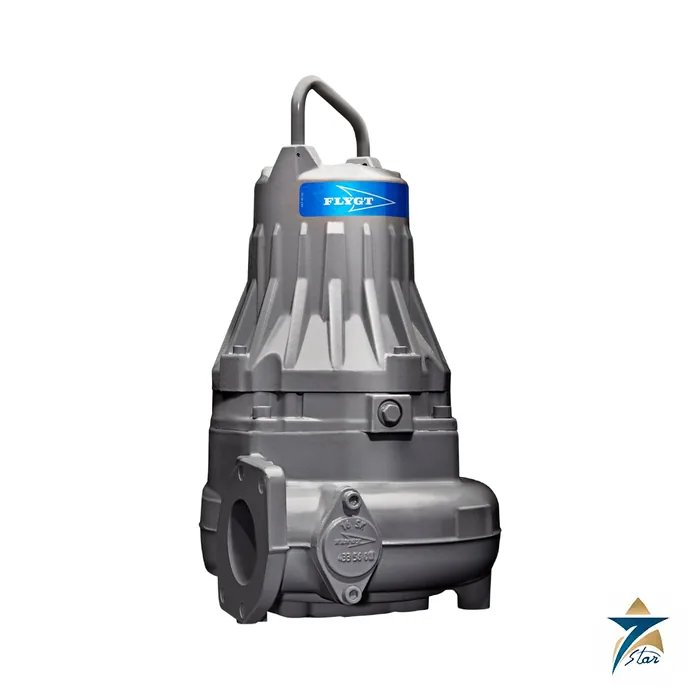

Flygt N 3085 Submersible Wastewater Pump

Overview

The Flygt N 3085 is a small-capacity submersible wastewater pump from Xylem’s Flygt N-Technology range, engineered for reliable handling of raw, unscreened sewage in municipal lift stations and industrial sumps. Its patented N-technology adaptive impeller design continuously self-adjusts and self-cleans to resist clogging from rags, wipes, and fibrous solids — the leading cause of unplanned pump downtime in conventional submersible units. Seven Star LLC supplies the genuine Flygt N 3085 submersible pump and Xylem spare parts to municipal utilities, contractors, and industrial facilities across Oman and the wider GCC.

Key Features of the Flygt N 3085 Pump

• Patented Flygt N-technology adaptive impeller that self-adjusts to maintain a tight clearance and resists clogging from rags, wipes, and solids without manual intervention
• Compact, robust construction sized for small-capacity municipal and industrial wastewater applications, including lift stations, pumping stations, and process sumps
• Dual independent mechanical shaft seals providing a secondary barrier against motor chamber ingress if the primary seal is compromised
• Class H insulated stator windings rated for frequent starts, supporting continuous or cycling duty in demanding municipal and industrial applications
• Hard-wearing cast iron volute and impeller construction built to withstand abrasive raw sewage and grit over long service intervals
• Compatible with Xylem monitoring and control accessories for remote run-status, temperature, and leakage alarm reporting back to a plant SCADA or BMS

Applications of the Flygt N 3085

The Flygt N 3085 submersible pump is deployed by municipal wastewater utilities for small to mid-sized lift and pumping stations handling raw sewage, and by industrial plants for process water and sump drainage duty. Its self-cleaning N-technology impeller makes it particularly well suited to sites with high rag and solids loading where conventional impeller designs clog frequently, reducing maintenance callouts and unplanned downtime. Across Oman and the GCC, the Flygt N 3085 is specified in municipal wastewater treatment works, district cooling plants, and construction dewatering applications where dependable, low-maintenance submersible pumping is essential.

Utility operators favor the Flygt N 3085 because its self-cleaning impeller directly cuts the manual clog-clearing callouts that dominate maintenance budgets on conventional submersible pumps handling raw sewage with high rag and wet-wipe content. Contractors specifying the Flygt N 3085 for construction dewatering and temporary bypass duty also benefit from the pump’s compact footprint and robust cast-iron construction, which tolerates abrasive grit and intermittent dry-running better than lighter-duty submersible alternatives.

Flygt N 3085 Specifications

Duty point, motor rating, and voltage configuration for the Flygt N 3085 are selected per project through Xylem’s pump sizing and configuration process. Contact Seven Star LLC for a configuration matched to your specific head, flow, and power requirements.

Application Considerations for Submersible Wastewater Pumps

The N 3085’s self-cleaning impeller and clog-resistant flow passage design are specifically engineered to handle raw sewage containing rags, fibrous material, and solids that would otherwise cause conventional pump impellers to clog and lose efficiency over time. This design consideration matters most in municipal wastewater applications where influent composition varies significantly between dry-weather and wet-weather flow conditions, and where pump downtime for unclogging translates directly into lift station capacity loss and potential overflow risk, a consideration that matters just as much for smaller regional utilities as it does for large metropolitan wastewater networks.

Selecting between guide-rail wet-well installation and a portable configuration depends on whether the pump is intended for permanent lift station duty or temporary bypass and emergency pumping applications. Seven Star LLC helps municipal utilities and EPC contractors across Oman and the GCC evaluate this choice against their specific project timeline and operational requirements, drawing on regional experience with both permanent infrastructure installations and temporary dewatering or bypass pumping projects during network expansion or emergency response scenarios.

Motor Protection and Monitoring

Xylem's performance specification for the N 3085 calls for three thermal switches embedded in the stator end coils, one per phase winding, wired in series. They open at 125 °C (260 °F), stopping the motor and raising an alarm, and are intended to supplement external motor overload protection in the control panel. A Float Leakage Sensor (FLS), a small float switch in the stator chamber, stops the motor and sends an alarm if water is detected. The specification connects both the thermal switches and the FLS to a Flygt MiniCAS II monitoring unit mounted in the control panel.

The motor is specified as a squirrel-cage induction type in an air-filled watertight chamber, designed for continuous duty with pumped media up to 40 °C (104 °F) and for at least 15 evenly spaced starts per hour. It is cooled by the surrounding environment or the pumped media, so no cooling jacket is required. The stated service factor is 1.15 with a voltage tolerance of ±10%. The seal lubricant chamber does not rely on the pumped media, and the specification states that the motor can operate dry without damage while pumping under load.

Guide-Rail Installation and Mix Flush Valve

For guide-rail installation the specification requires the pump to connect automatically to a cast iron discharge connection, guided by at least two guide bars, with a machined metal-to-metal watertight contact and no part of the pump resting on the sump floor, so personnel do not need to enter the wet well. A non-electric mix flush valve can be mounted on the volute; it diverts part of the pumped liquid back into the sump during the first 30 seconds of pumping to stir up the sump and prevent settling. Factory performance testing follows ISO 9906.

Why Choose Seven Star LLC for the Flygt N 3085

A submersible wastewater pump’s duty point, impeller type, and motor rating have to be sized correctly against your actual wet-well head and flow conditions, since an incorrectly sized pump either fails to deliver required capacity during peak flow or runs inefficiently outside its best-efficiency point for most of its operating life. Seven Star LLC works with your municipal and industrial wastewater engineers to confirm the correct N 3085 configuration against your specific application before order confirmation, drawing on our regional Xylem Flygt partnership across Oman and the wider GCC.

Seven Star LLC works directly with municipal utilities, EPC contractors, and industrial facilities across Oman and the GCC to supply genuine Xylem Flygt pumps and spare parts, ensuring every Flygt N 3085 comes with full manufacturer traceability, technical documentation, and after-sales support suited to local project and maintenance requirements. We also support wastewater treatment operators across Muscat, Sohar, and Salalah with impeller and seal spare parts planning, keeping lift station pumps reliable through their full service life. For utilities managing multiple pumping stations across a distribution network, we also help plan standardized pump configurations so operations and maintenance teams work with consistent, interchangeable equipment rather than a fragmented mix of models and spare parts scattered across different sites and maintenance depots.
