Brand: Flygt

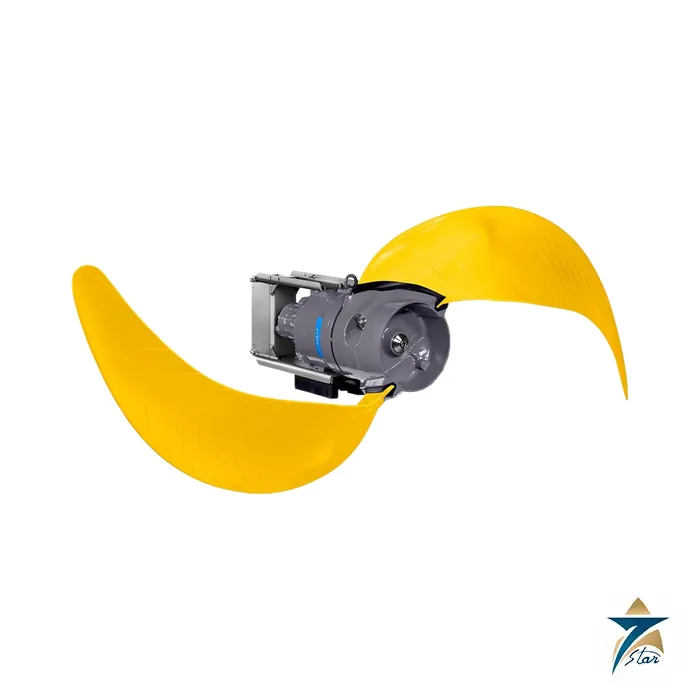

Flygt 4410 Low-Speed Submersible Mixer
Description
Low-speed submersible mixers for large wastewater treatment tanks
The Flygt 4410 is the smallest of the Flygt 4400 series of large submersible mixers, designed for highly efficient, low-speed mixing of large volumes with minimal power consumption. Xylem lists activated sludge, oxidation ditches, MBBR processes, sequencing batch reactors and retention tanks as typical processes. The drive unit has a rugged gearbox and a squirrel-cage induction motor with IE3 efficiency, Class H (180 degC) trickle-impregnated windings, and the signature backswept two-blade propeller is self-cleaning to avoid clogging. Each model in the series can be customised with different motor categories and sizes, gear ratios and propeller diameters; a major overhaul is typically needed only every 10 years.
Technical specifications
| Parameter | Specification |
|---|---|
| Rated power, 4410 (50 Hz) | 0.9 kW and 2.3 kW versions |
| Rated power, 4410 (60 Hz) | 0.9 to 1.1 kW (1.2 to 1.5 hp) and 1.8 to 2.6 kW (2.4 to 3.5 hp) |
| Thrust, 4410 (50 Hz) | 180 to 1,380 N (0.9 kW); 410 to 2,490 N (2.3 kW) |
| Mixer efficiency, 4410 (50 Hz) | Up to 1,456 N/kW (0.9 kW); up to 1,250 N/kW (2.3 kW), per ISO 21630 |
| Propeller speed, 4410 (50 Hz) | 17 to 27 rpm (0.9 kW); 26 to 47 rpm (2.3 kW) |
| Propeller diameter (series) | 2-blade, 1,400, 1,600, 1,800, 2,000, 2,200 or 2,500 mm |
| Motor | Squirrel-cage 4- or 6-pole induction motor, IE3 optional; Class H insulation; direct on-line, star-delta or VFD start |
| Materials | Cast iron ASTM 35B housings; shaft stainless steel AISI 431; propeller reinforced polyurethane; lifting device and stand unit stainless steel ASTM 316L |
| Monitoring | Thermal contacts opening at 125 degC; leakage sensors in stator and oil housings optional |
| Cable | SUBCAB heavy-duty submersible cable 10, 16 or 20 m; screened 10 or 20 m |
| Application limits | Liquid up to 40 degC; viscosity up to 5,000 cp; pH 6 to 11; chlorides up to 200 ppm; immersion up to 20 m |
| Weight and length (4410) | Up to 280 kg; up to 965 mm from guide bar |
| Installation | Tripod guide bar system, 100 x 150 mm |
| Certificates | Product safety and hazardous-zone approvals: EN, IECEx, UKEx, CSA and FM |
Other models in the 4400 series
| Model | Rated power, 50 Hz | Thrust, 50 Hz | Efficiency, 50 Hz | Propeller speed, 50 Hz | Propeller size | Max. weight |
|---|---|---|---|---|---|---|
| Flygt 4430 | 4.3 kW (4.5 to 4.6 kW at 60 Hz) | 410 to 3,847 N | Up to 1,205 N/kW | 26 to 48 rpm | 1.4 to 2.5 m | Up to 360 kg |
| Flygt 4460 | 5.7 kW (6.3 kW at 60 Hz) | 1,630 to 4,583 N | Up to 1,050 N/kW | 36 to 48 rpm | 1.8 to 2.5 m | Up to 360 kg |
What to confirm before ordering
Give tank geometry and volume, required thrust or mixing intensity, liquid properties, immersion depth and the supply frequency, and confirm propeller size, gear ratio, motor category and cable length. Mixers are selected by Xylem from these inputs. See the Flygt N 3085 wastewater pump and Pumps for related equipment.
Documents and quotation
The attached Xylem data sheet covers the Flygt 4410, 4430 and 4460 (2023). State the model, propeller, motor and quantity when requesting a quotation.
Datasheets & Documents
- Datasheet Flygt 4400 series large submersible mixers data sheet (4410, 4430, 4460) Download
Reviews (0)
About brand
Submersible pumping for wastewater is the field Flygt works in, with roots in Sweden going back to 1901, and its pumps and mixers sit in lift stations and treatment plants around the world. Seven Star LLC, an independent supplier in Muscat, lists Flygt submersible wastewater pumps, including the N 3085, the N 3153, the F 3153 chopper pump and the Concertor pumping system, together with the 4410 mixer, and sources Flygt submersible pumps and spare parts for utilities, contractors and industrial sites in Oman.
Flygt pump families we handle
The manufacturer groups its wastewater pumps into N-technology pumps, the Concertor series and channel impeller pumps, alongside submersible dewatering pumps, mixers and pump monitoring units such as the MAS 801. The N 3085 listed here belongs to the N-technology line, which is built around an impeller meant to keep passing rags and solids instead of clogging. Concertor combines the pump with built-in control electronics. Older units may carry ITT Flygt on the data plate; the model number is read the same way.
Ordering Flygt pumps and parts: what we need
Send everything on the pump data plate: model number, version, serial number, impeller or curve code, motor rating, voltage and frequency. For a new pump add flow, head, the liquid and its solids content, and whether the pump sits on guide rails in a wet well, is portable or is dry mounted. For Flygt spare parts anywhere in the GCC, a clear photo of the data plate plus the part description lets us match the manufacturer's parts list.
Browse Flygt products by category: Pumps.
Related products
Frequently Asked Questions
What is the Flygt 4400 series used for?
Low-speed mixing of large volumes in activated sludge, oxidation ditches, MBBR, sequencing batch reactors and retention tanks.
What motor efficiency does it use?
A squirrel-cage motor with IE3 efficiency, with Class H 180 degC insulation.
What propeller sizes are available?
Two-blade propellers of 1,400 to 2,500 mm diameter.
What is the maximum liquid temperature?
40 degC, with viscosity up to 5,000 cp and pH 6 to 11.
How is the mixer installed?
On a tripod guide bar system of 100 x 150 mm.
