CEMB TR-I Explosion-Proof Absolute Vibration Transmitter

Name: CEMB TR-I Vibration Transmitter ATEX SIL 2 – Datasheet
Brand: CEMB
SKU: TR-I

Description

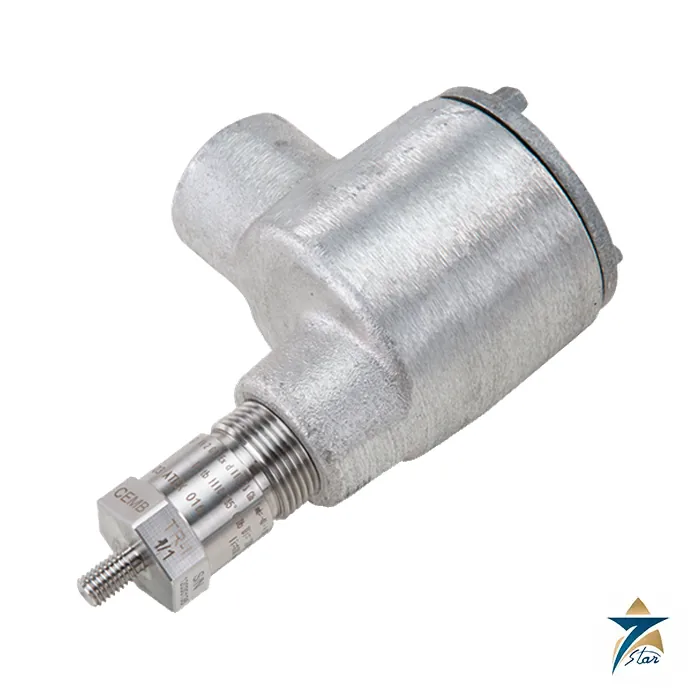

The CEMB TR-I is a two-wire 4-20 mA transmitter that measures the absolute vibration of a machine support and sends it straight to a PLC, DCS or machinery protection system. It is built in an explosion-proof version for classified areas, with an AISI 316L stainless steel body and a die-cast aluminium terminal housing, and carries ATEX, IECEx and SIL 2 certification. It is a typical choice for pumps, fans, motors, compressors and gearboxes in oil, gas and petrochemical plants.

Technical specifications

Parameter	Specification
Measurement	Absolute vibration, omnidirectional seismic; output proportional to vibration velocity or acceleration
Output and supply	4 to 20 mA current loop, 2-wire; 24 V DC (10 to 35 V DC); maximum load as given in the datasheet load curve
Measuring ranges (ordering code A)	0-10, 0-20, 0-50, 0-100 mm/s RMS; 0-1, 0-5, 0-10 g RMS; 0-25.4 mm/s (1 in/s) RMS; 0-12.7 mm/s (0.5 in/s) RMS; special on request
Dynamic field	Plus or minus 18 g
Frequency response	Linearity plus or minus 2 percent at 75 Hz; plus or minus 3 percent from 10 Hz to 1 kHz; -3 dB from 1 Hz to 2 kHz
Transverse sensitivity	Below 5 percent
Machine connection thread (code B)	1/4-18 NPT L=14 mm (standard); M8 x 1.25; 1/4-28 UNF; M8 x 1; M10 x 1.5; M10 x 1 (L=9 mm)
Certification (code C)	0 standard; 2 ATEX II 2G Ex db IIC T6 Gb and II 2D Ex tb IIIC T85 degC Db; 5 IECEx Ex d IIC T6 Gb and Ex tb IIIC T85 degC Db
Functional safety	SIL 2 certificate to EN/IEC 61508
Case finish (code D)	0 standard not painted; 1 epoxy painted
Materials	AISI 316L stainless steel body; die-cast aluminium explosion-proof case with 3/4 in NPT female cable entry
Operating temperature	-40 to +70 degC
Protection	IP65
Mounting	Any axis; mounting torque 5 to 10 N-m; no maintenance required
Optional accessories	Conduit adapters 3/4 in NPT to M20 (nickel-plated or stainless), 3/4 in NPT to 1/2 in NPT (stainless); plastic or stainless steel tag

Reading the ordering code

The TR-I is ordered as TR-I/A/B/C/D. A selects the measuring range, B the machine connection thread, C the certification and D the case finish. A plant that follows the machinery vibration limits of its standards will choose a velocity range in mm/s RMS, while a high-frequency bearing check may call for an acceleration range in g. Stainless steel threads and the NPT conduit entry make the unit easy to fit to American-style pump and compressor casings, but the thread must be matched to the drilled and tapped mounting boss on the machine.

Using it on classified plant

For hazardous areas order certification code 2 or 5 and confirm that the zone, gas group and temperature class on the nameplate match the plant classification documents. Installation uses certified cable glands or conduit seals in the 3/4 in NPT entry, and the transmitter is bolted rigidly to a clean, flat machine surface so that the reading represents the bearing housing. Related CEMB transmitters include the CEMB TR-27 vibration transmitter and the CEMB TR-PRO high performance vibration transmitter; other equipment is listed under vibration monitoring.

Documents and quotation

The linked document is the CEMB TR-I data sheet. Before ordering, confirm the measuring range, thread, certification code, finish and required conduit adapters, and ask for the safety instructions and certificates that apply to the chosen version. Seven Star LLC, an independent supplier in Muscat, will prepare a quotation from the full ordering code.
