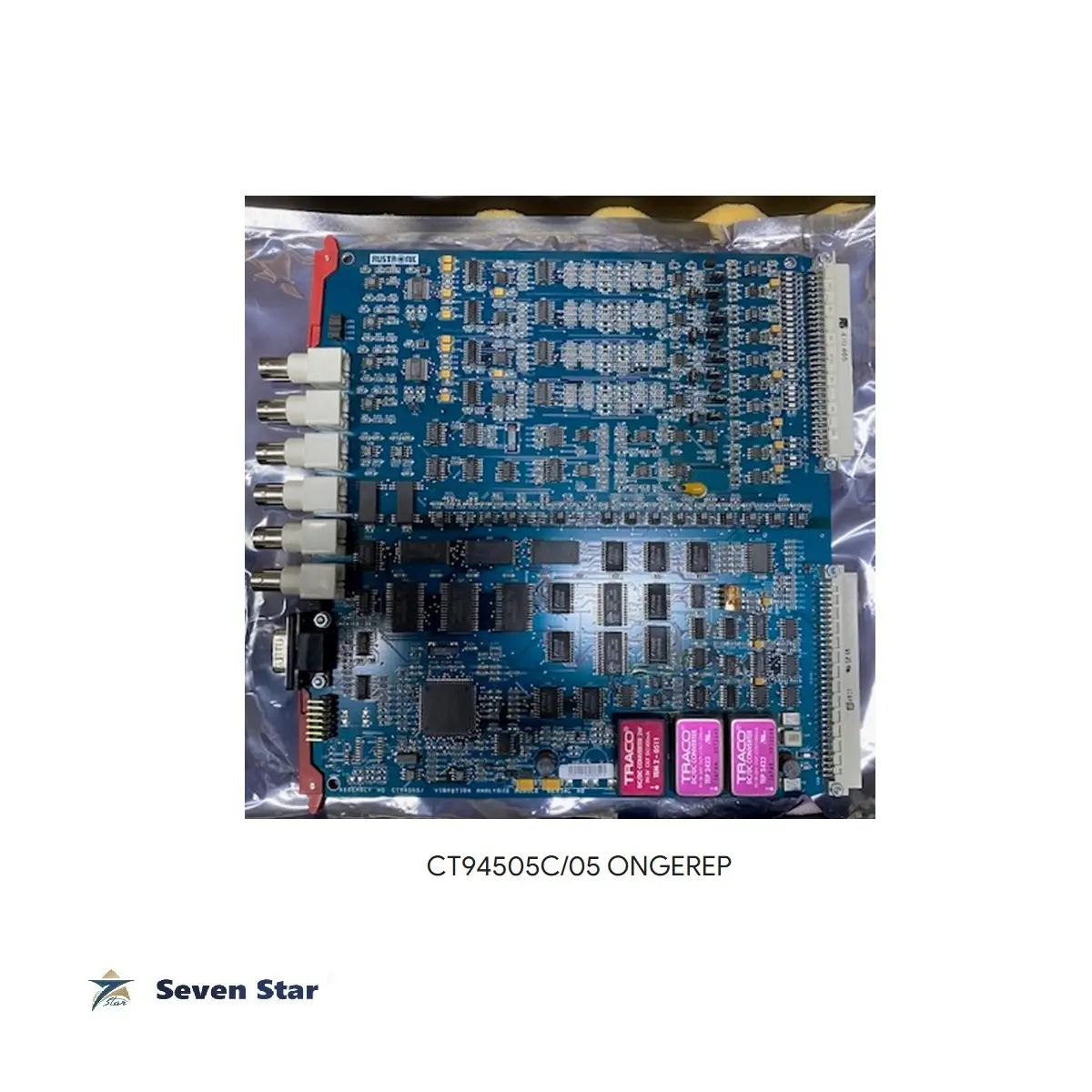

CT94505C/05 Ongerep Vibration Analysis Module – V.A.M. SL19/21

Overview

The Ongerep CT94505C/05 Vibration Analysis Module, designated V.A.M. SL19/21, is a precision industrial diagnostic module engineered for continuous vibration analysis and machinery-health monitoring. It captures, filters, and processes vibration signals to identify early-stage mechanical faults, including imbalance, misalignment, bearing damage, resonance conditions, and rotor deterioration.

Seven Star LLC supplies the Ongerep CT94505C/05 and related vibration monitoring hardware to oil and gas, petrochemical, and marine facilities across Oman and the GCC, as a trusted supplier helping plants maintain reliable condition-monitoring coverage on critical rotating equipment.

Operating Principle

The module processes raw vibration signals from connected sensors, accelerometers, or monitoring probes, applying filtering and signal conditioning to isolate the frequency components that indicate specific mechanical fault modes. Different fault types produce characteristic vibration signatures — imbalance appears at running speed frequency, bearing damage at higher characteristic frequencies, misalignment at running speed harmonics — and the CT94505C/05’s analysis functions are built to extract and flag these patterns for maintenance teams before they progress to failure.

Its factory/supplier-configured architecture ensures the module’s calibration matches the specific sensors and monitoring points it is paired with, which is important because vibration analysis accuracy depends heavily on correct signal scaling and frequency response matching between sensor and analysis module.

Engineering Design of the CT94505C/05

The module is built for integration into condition monitoring panels and machinery protection systems, accepting inputs from vibration sensors, accelerometers, and monitoring probes distributed across the protected equipment. Its construction targets the demanding conditions typical of oil and gas, petrochemical, and marine installations, where continuous operation and signal integrity must be maintained despite vibration, temperature swings, and electrical noise from nearby heavy machinery.

Because the SL19/21 version designation reflects a specific factory configuration, sourcing a correctly matched replacement or spare module — rather than a generically similar unit — matters for maintaining calibration continuity with the existing monitoring system.

Key Features

• Continuous vibration signal capture, filtering, and analysis
• Detects imbalance, misalignment, bearing damage, and rotor deterioration
• Factory/supplier-configured calibration for sensor matching
• Compatible with vibration sensors, accelerometers, and monitoring probes
• Integrates with condition monitoring and machinery protection panels
• Supports predictive maintenance and early fault detection
• Suited to harsh industrial and marine operating environments
• Reduces unplanned downtime through early diagnosis

Industrial Applications

The CT94505C/05 is used for predictive maintenance and vibration diagnostics on compressors, pumps, turbines, generators, fans, motors, blowers, and marine machinery, wherever early detection of a developing mechanical fault has direct value in avoiding unplanned downtime. It is common in condition-monitoring programs at refineries, petrochemical plants, and marine installations with large-scale rotating equipment fleets.

Across Oman, Muscat, Sohar, Salalah, and the GCC, Seven Star LLC supports maintenance and reliability teams as a trusted supplier of Ongerep vibration monitoring modules, helping plants maintain continuous machinery-health tracking across their critical rotating assets.

Technical Specifications

Request a Quote for CT94505C/05 Ongerep Vibration Analysis Module – V.A.M. SL19/21

Contact Seven Star LLC for a quotation, lead time, and technical support on the Ongerep CT94505C/05 Vibration Analysis Module and the full range of Ongerep condition monitoring hardware across Oman and the GCC.

Confirming the Right Replacement Module

Because this module is supplied in a specific configuration, the part number alone may not tell the whole story. Before ordering a spare, collect the following from the installed unit and the system documentation:

• The full part number with suffix (CT94505C/05) and the version marking (V.A.M. SL19/21) from the module label.
• Any serial number, revision or date code printed on the board or front panel.
• The type of sensors connected to each channel – accelerometer, velocity sensor or proximity probe – and their sensitivity.
• The rack or panel in which the module is installed and any neighbouring cards it communicates with.
• Photos of the label and the front panel.

With this information the replacement can be matched to the existing configuration, which avoids rescaling channels or re-establishing alarm levels after the exchange.

Installation and Commissioning

Before removing the old module, record its channel settings, alarm levels and any trend data that has to be kept. After fitting the replacement, check each channel with a known reference: a portable vibration calibrator or a handheld analyzer on the same measurement point is a practical cross-check. Confirm that alarm and trip outputs reach the protection system or DCS, and take a fresh baseline reading on each machine once it is running at normal load.

Maintenance and Troubleshooting

Many apparent module faults are actually field problems. Work through the measurement chain from the sensor back:

• Channel reads zero or full scale: open or shorted sensor cable, loose connector or failed sensor.
• Noisy or spiky readings: ground loops, damaged cable screens or cables routed alongside VFD and power cables.
• Gradual step change without a machine change: a loosened sensor mounting or a sensor swapped for one with different sensitivity.

Check terminations and sensor mountings during each planned shutdown, and keep a record of readings so a module problem can be separated from a real change in machine condition.

Applications in Oman and the GCC

In Oman, continuous vibration analysis protects gas compressors, export pumps and turbine-driven equipment in upstream fields, refineries in Sohar and Duqm, and vessels and port machinery along the coast. Heat and sand in field enclosures make panel cooling and sealed cable glands part of reliable monitoring.

Sourcing from Seven Star LLC

Send the module label details and system information with your enquiry, and Seven Star LLC will confirm availability, condition and lead time for delivery across the GCC.
