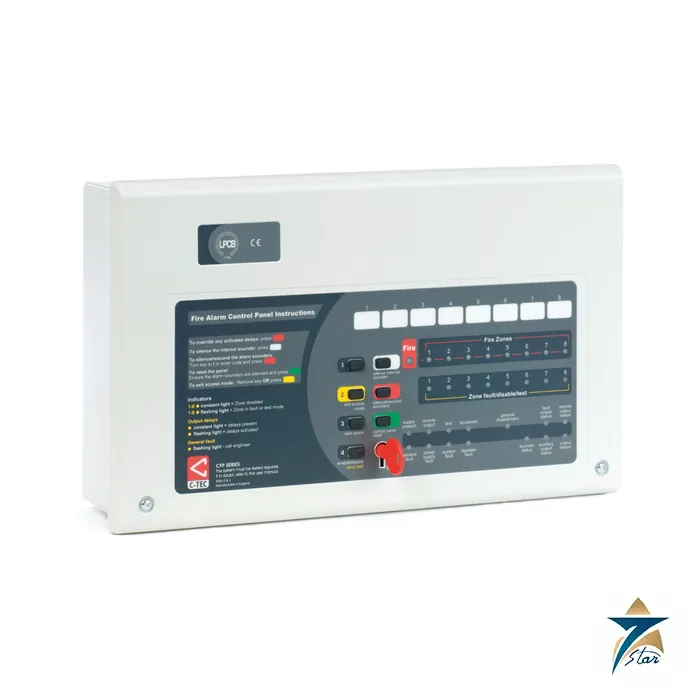

C-TEC CFP702-4 2 Zone Conventional Fire Alarm Panel

Name: C-TEC CFP702-4 2 Zone Fire Alarm Panel – Manual & Quote
Brand: C-TEC
SKU: CFP702-4

Description

The C-TEC CFP702-4 is the two-zone model of C-TEC’s conventional CFP fire alarm control panel range, certified by the LPCB to EN54 parts 2 and 4. Each of its two detector circuits is one zone, so it suits small buildings, offices, stores and workshop units where two fire zones are enough and conventional smoke and heat detectors are specified. Four conventional sounder circuits are built in, which allows alarm devices to be divided by area instead of sharing a single circuit.

Technical specifications

Parameter	Specification
Model	CFP702-4, 2 zone conventional fire alarm control panel (CFP704-4 and CFP708-4 cover 4 and 8 zones)
Approvals	LPCB certificate 176b, reference 176b/07 (CFP702-4); tested to EN54-2:1997+A1:2006 and EN54-4:1997+A1:2002+A2:2006; CPR certificate 2831-CPR-F4313; DoP0000010; UKCA 0832-UKCA-CPR-F1048
Detector circuits	2 (one zone per circuit); 500 m maximum per circuit; end-of-line monitoring device modules; 20 ohm and 0.27 uF maximum per circuit
Zone capacity	Maximum 25 smoke or heat detectors per zone; 32 detectors and manual call points combined per zone; call point resistor 470 to 680 ohm
Sounder circuits	4 monitored circuits, 6800 ohm end-of-line resistor, 20 to 27 V DC; 4 x 200 mA, 800 mA total; up to 32 bells at 25 mA or 40 electronic sounders at 20 mA
Auxiliary outputs	Reset and remote open-collector outputs (30 mA each, 27 V); auxiliary and fault relays, volt-free changeover, 1 A at 30 V DC; 24 V auxiliary output
Auxiliary inputs	Class change and alert, trigger to 0 V, 27 V maximum, non-latching
Power supply	230 V AC, 50/60 Hz, 0.35 A rms; 27 V DC nominal; 1.5 A maximum rated current
Batteries	2 x 12 V 3.2 Ah VRLA in series (YUCEL Y3.2-12 for LPCB approved systems); minimum 1.2 Ah; deep discharge cut-off approx. 21 V
Repeaters	Up to 8 CFP repeater panels using CFP761 network driver cards
Dimensions and weight	380 x 235 x 96 mm (W x H x D); flush cut-out 367 x 220 x 75 mm, no bezel required; 1.75 kg without batteries
Enclosure and environment	Plastic lid and base, RAL7035; IP30; -10 to +40 degC; 95 percent RH non-condensing

Features listed in the manual

The panel provides a selectable zone delay, a zone test facility, resound or no-resound programming for silenced sounders when a new zone goes into alarm, and comprehensive fault diagnostics. Engineering functions include non-latching zones and coincidence (double-knock), which the manual marks as not compliant with EN54-2; the LPCB approval label should not be applied if the panel is configured that way. Access level two is reached by keypad code or keyswitch. Reset and remote outputs, an auxiliary relay, a fault relay and two non-latching inputs (class change and alert) are provided for interfacing with other equipment, and up to eight repeater panels can be added through CFP761 network driver cards.

Planning a conventional system

Count detectors and call points per zone against the manual’s limits of 25 smoke or heat detectors and 32 devices in total per zone, and check cable length (500 m per circuit) and loop impedance. Call points need a resistor of 470 to 680 ohm, and the end-of-line monitoring device modules supplied allow detector removal to be reported. Size the standby batteries from the project duty: the panel takes two 12 V batteries of up to 3.2 Ah, and LPCB approved systems must use the specified 3.2 Ah type. The enclosure can be surface or flush mounted without a bezel, and mains must be fixed wiring on a dedicated, earthed supply. For more zones, the manual covers the four and eight zone models as well, one of which is listed on this site as the C-TEC CFP708-4 eight zone panel.

Documents and quotation

The linked file is the C-TEC LPCB approved CFP 2/4/8 zone installation and maintenance manual (24 pages, DFU7004010 Rev 4), which covers the CFP702-4 together with the four and eight zone models. Before ordering confirm the number of zones, battery size, repeater needs and the approval the local authority specifies. Related equipment is listed under fire and gas logic controllers. Seven Star LLC, an independent supplier in Muscat, will prepare a quotation from your project requirements.
