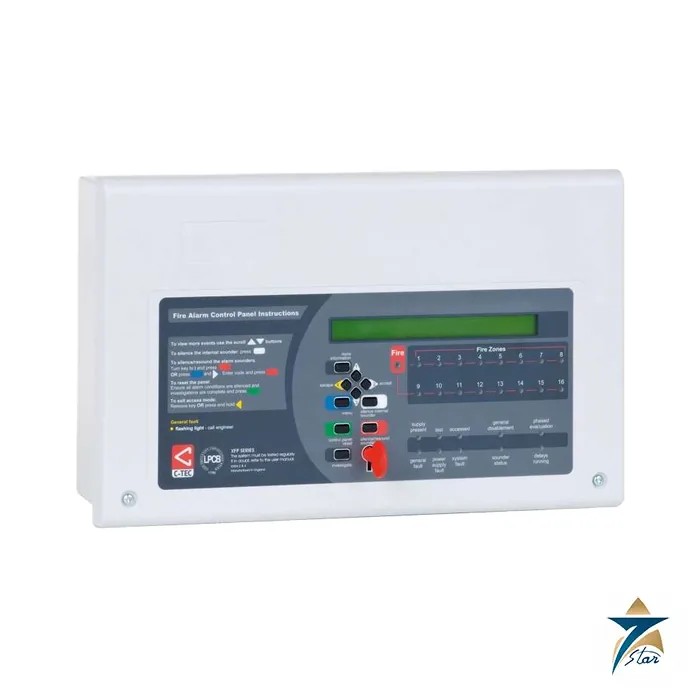

C-TEC XFP501E/CA CAST 1 Loop 16 Zone Addressable Fire Panel
Description
The C-TEC XFP501E/CA is a single-loop, 16-zone analogue addressable fire alarm control panel for C-TEC’s CAST protocol. One loop supports up to 255 CAST devices, each with a built-in short-circuit isolator, and the panel is certified by the LPCB to EN54 parts 2 and 4. It is a sensible size for a single building, a plant control room, a camp block or a workshop where one loop and sixteen zone LEDs cover the detection layout.
Technical specifications
| Parameter | Specification |
|---|---|
| Part number | XFP501E/CA, 1 loop, 16 zone, CAST protocol |
| Approvals | LPCB certification to EN54-2 and EN54-4 (manual); CPR and UKCA certificates referenced |
| Loop driver | 1 loop, 450 mA at 40 V maximum; up to 255 CAST devices; maximum loop length 1 km |
| Device addressing | Automatic from the panel (auto address and loop learn) or manual with the CAPROG handheld programmer |
| Programmable outputs | 16 sounder groups and 16 output sets; 2 conventional sounder circuits, 500 m maximum, 400 mA each, 6800 ohm end-of-line resistor |
| Relays | 3 programmable relays and 1 fail-safe fault relay, volt-free changeover, 1 A at 30 V DC; 24 V auxiliary output 100 mA |
| Inputs | 2 programmable non-monitored inputs, trigger to 0 V, 27 V DC maximum |
| Display and indicators | 2 line x 40 character backlit LCD; 16 zonal LEDs and general fire, supply, test, fault, disablement, phased evacuation and delay indicators |
| Mains supply | 230 V AC, 50/60 Hz, 0.35 A rms; integral 1.5 A EN54-4 switched mode PSU; 18.7 to 29 V DC internal supply |
| Batteries | 2 x 12 V, 0.8 Ah to 3.2 Ah VRLA; YUCEL Y3.2-12 for LPCB approved systems |
| Network (optional) | XFP761 network driver card; RS485 non-redundant, up to 8 main panels per network, 1 km (main) and 500 m (repeater); up to 8 repeaters per non-networked panel |
| Dimensions and weight | 380 x 235 x 90 mm (W x H x D); 1.8 kg without batteries; plastic lid and back box; IP30 |
| Programming | Windows PC tools, part number XFP507, must be used to configure the system; RS232 connection |
Functions described in the engineering manual
The manual lists zone dependency of types A, B and C under EN54-2 clause 7.12, output delays and a phased evacuation facility, an alarm counter of up to 999 counts, individual disablement of addressable points, day and night operation, an investigation delay and individual sensitivity settings for each device. Fault reporting from heat detectors, optical detectors and multisensors is listed under clause 8.3. Devices can be addressed by the panel or with the CAST handheld programmer, duplicate addresses and swapped devices are detected, and each device can carry 40 characters of custom text. Some engineering functions go beyond EN54-2 and are marked in the manual with a caution symbol.
Selection and installation notes
The part number matters: the /CA suffix means the CAST protocol, so detectors, call points and sounders on the loop must be CAST devices. The site also lists the C-TEC XFP501/CA; the two are different part numbers, so confirm which one the specification, spare-parts list or existing system calls for before ordering. Batteries are small, 0.8 to 3.2 Ah, so check standby calculations against the project duty. Networking and repeaters are optional and, as the manual notes, the CAST XFP network and repeaters have not been assessed to EN54-2. The panel is configured with the XFP507 PC tools, which are ordered separately, and the enclosure is for indoor use only at IP30.
Documents and quotation
The linked file is the C-TEC CAST XFP 16 zone engineering manual for part XFP501E/CA (48 pages, DFU5010000 Rev 5). Before ordering confirm the part number and protocol suffix, the number of zones and loops, battery size, whether repeaters or a network are needed and which approvals the project requires; browse related fire and gas logic controllers. Seven Star LLC, an independent supplier in Muscat, will prepare a quotation from your project requirements.
