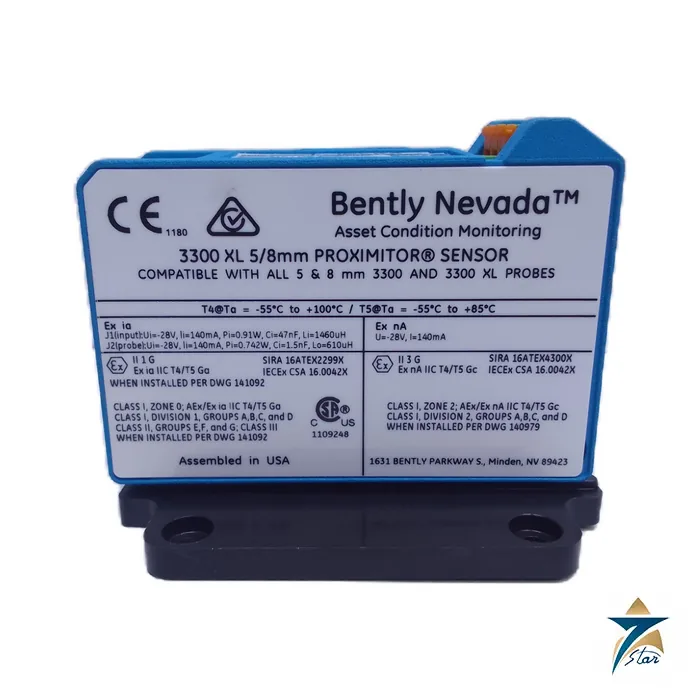

Bently Nevada 3300 XL Proximitor 330180-50-05

Name: Bently Nevada 330180-50-05 3300 XL Proximitor – Datasheet
Brand: Bently Nevada

Description

Overview

The Bently Nevada 330180-50-05 is a 3300 XL Proximitor Sensor, the signal-conditioning unit of the 3300 XL 8 mm Proximity Transducer System. Together with a 3300 XL 8 mm probe and a matching extension cable, it produces an output voltage directly proportional to the gap between the probe tip and the observed conductive surface, so the same loop provides both static position and dynamic vibration data to the monitor.

In the 330180-AA-BB order code, option 50 specifies a 5.0 m system length with panel mount, and option 05 specifies CSA, ATEX and IECEx approvals. The probe length and extension cable length must add up to the Proximitor system length.

Key Features

Signal conditioner for the 3300 XL 8 mm eddy-current transducer system (probe, extension cable, Proximitor)
Linear 2 mm (80 mil) range at 7.87 V/mm (200 mV/mil)
Measures both static gap (position) and dynamic vibration
Accepts 3300-series 5 mm and 3300 XL 8 mm probes; electrically interchangeable with non-XL 3300 components
Up to 305 m of field wiring between Proximitor and monitor
A308 aluminium housing rated -52 °C to +100 °C

Technical Specifications

Parameter	Value
Part number	330180-50-05
Total length and mounting option	50: 5.0 m system length, panel mount
Agency approval option	05: CSA, ATEX and IECEx approvals
Series	3300 XL 8 mm Proximity Transducer System
Input	One 3300-series 5 mm or 3300 XL 8 mm proximity probe and extension cable
Power	-17.5 to -26 Vdc without barriers at 12 mA max; -23 to -26 Vdc with barriers
Supply sensitivity	<2 mV output change per volt of input change
Output resistance	50 Ω
Linear range	2 mm (80 mils), approx. 0.25 to 2.3 mm (10 to 90 mils) from target, approx. -1 to -17 Vdc
Recommended radial vibration gap	-9 Vdc (approx. 1.27 mm / 50 mils)
Incremental scale factor	7.87 V/mm (200 mV/mil) ±5% (5 m system, 0 to +45 °C)
Frequency response	0 to 10 kHz, +0/-3 dB
Field wiring	0.2 to 1.5 mm² (16 to 24 AWG), max. 305 m to the monitor
Proximitor material	A308 aluminium
Proximitor weight	246 g
Operating temperature	-52 °C to +100 °C
Storage temperature	-52 °C to +105 °C
Deviation from best fit straight line	Less than ±0.025 mm (±1 mil), standard 5 or 1 metre system, 0 to +45 °C
Minimum target size	15.2 mm (0.6 in) diameter flat target
Factory calibration target	AISI 4140 steel (other target materials on request)
Hazardous area marking, ia (ATEX/IECEx)	II 1 G Ex ia IIC T4/T5 Ga
Hazardous area marking, nA/ec (ATEX/IECEx)	II 3 G Ex nA IIC T4/T5 Gc; Ex ec IIC T4/T5 Gc
Temperature class ambient	T5 at Ta -55 to +40 °C; T4 at Ta -55 to +80 °C
Entity parameters (ia)	Ui = -28 V, Ii = 140 mA, Pi = 0.91 W, Ci = 47 nF, Li = 1460 µH
Functional safety	SIL 2 at HFT = 0; SIL 3 at HFT = 1
Panel-mount fasteners	M3.5 or #6 screws

Applications

Radial vibration and shaft position on fluid-film bearing machines: steam and gas turbines, centrifugal compressors, pumps and generators
Axial (thrust) position and Keyphasor phase reference inputs to 3500 or other API 670 protection systems
Replacement of failed Proximitors in existing 3300 XL loops in oil & gas, petrochemical, power and desalination plants

330180-50-05 Ordering Fields and Alternative Configurations

The 3300 XL Proximitor Sensor is ordered as 330180-AA-BB. Field A merges calibrated system length with mounting style. Nine values are published: 10, 11 and 12 for 1.0 metre systems; 50, 51 and 52 for 5.0 metre systems; and 90, 91 and 92 for 9.0 metre systems. Within each group the last digit 0 means panel mount, 1 means DIN mount and 2 means no mounting hardware. The 50 in this part number therefore denotes a 5.0 metre (16.4 ft) sensor supplied with the panel-mount base, which uses the same 4-hole footprint as earlier Proximitor designs.

Field B is the agency approval option, with 00 for units where approvals are not required and 05 for CSA, ATEX and IECEx approvals. With option 05 the sensor carries Ex ia IIC T4/T5 Ga marking for intrinsically safe loops and Ex nA / Ex ec IIC T4/T5 Gc for Zone 2 and Division 2 circuits, with T5 valid to +40 °C ambient and T4 to +80 °C. Intrinsically safe installation follows drawing 141092 with zener barriers or galvanic isolators; non-incendive installation follows drawing 140979 and requires at least IP54 protection of the terminals.

Matching Probes, Extension Cables and Installation Hardware

A 5 metre sensor needs 5.0 metres of total electrical length ahead of it. That can be a 5.0 metre probe connected directly, or a shorter probe plus a 330130 extension cable whose lengths add up to 5 metres: 330130-045 with a 0.5 metre probe, 330130-040 with 1.0 metre, 330130-035 with 1.5 metre and 330130-030 with 2.0 metre. Compatible probe families are 330101 and 330102 (3/8-24 UNF), 330103 and 330104 (M10 × 1), reverse mount 330105 and 330106, smooth case 330140 and 330141, plus the extended temperature 330191 to 330198 range with 330190 cable.

The mounting base isolates the sensor electrically, so separate isolator plates are not required. Panel mounting uses M3.5 or #6 screws; replacement panel pad is 138492-01 and DIN pad 138493-01. SpringLoc terminals accept 0.2 to 1.5 mm² conductors without tools, and test plug 148722-01 lets technicians read the output from the terminal strip test holes without lifting field wiring. Keep the supply between -23.5 and -26 Vdc where full range is needed, because more positive voltages can shorten the linear range.

Why Seven Star LLC

Seven Star LLC supplies Bently Nevada (Baker Hughes) 3300 XL Proximitor Sensors to power, oil & gas, petrochemical and water customers across Oman and the GCC. Before quoting, we check the complete part number and the system length, mounting style and approval suffix against the equipment already installed, so the replacement matches the existing system.

Request a Quote for Bently Nevada 3300 XL Proximitor 330180-50-05

Submit a formal inquiry through our RFQ page with the Proximitor part number 330180-50-05, the quantity, your probe and extension cable part numbers and the monitor model. We will confirm the correct configuration and respond with a formal quotation. | Inquiry Form

Related Products

Other Models in the Bently Nevada 3300 XL Proximity Transducer System Range

Seven Star LLC supplies models from the Bently Nevada 3300 XL Proximity Transducer System range in Oman and the GCC. Compare the related models below and request a quote for the one that matches your application.

Model	Category
Bently Nevada 3300 XL 8mm Proximity Transducer System	Vibration Monitoring	View details
Bently Nevada 3300 XL 8mm Probe 330103-00-05-10-01-00	Vibration Monitoring	View details
Bently Nevada 3300 XL 8mm Proximity Probe – 330101-00-27-10-02-05	Vibration Monitoring	View details
Bently Nevada 3300 XL Probe 330101-00-27-50-02-05	Vibration Monitoring	View details
Bently Nevada 3300 5mm Proximity Probe – 330170-00-08-20-02-05	Vibration Monitoring	View details
Bently Nevada 3300 XL 25 mm Proximitor Sensor 330850-51-CN	Vibration Monitoring	View details
Bently Nevada 3300 XL Proximitor Sensor 330180-X0-05	Vibration Monitoring	View details
Bently Nevada 3300 XL Proximitor Sensor 330180-12-00	Vibration Monitoring	View details
Bently Nevada 3300 XL Proximitor 330180-50-05	Vibration Monitoring	You are viewing this model
Bently Nevada 3300 XL Proximitor 330180-51-CN	Vibration Monitoring	View details

Datasheets & Documents

Datasheet Bently Nevada 3300 XL Proximitor 330180-50-05 Datasheet Download

Reviews (0)

Reviews

There are no reviews yet.

How would you rate this product?

About brand

Bently Nevada is the American machinery protection and condition monitoring brand behind the 3500 rack, the 3300 XL proximity probe and the System 1 software. It was founded in 1961 in Minden, Nevada, and is today a Baker Hughes business.

Seven Star LLC is an independent supplier in Muscat. We list Bently Nevada monitors, I/O modules, probes, proximitors, velocity transducers and transmitters for rotating equipment in Oman and the GCC, and source them by full part number.

Bently Nevada company profile

Established	1961, Minden, Nevada, USA, by Donald E. Bently. The business started earlier as Bently Scientific in Berkeley, California (1956).
Known for	The first commercial eddy-current proximity transducers for measuring shaft vibration and position on high-speed turbomachinery
Ownership	Acquired by GE Energy in 2002; part of Baker Hughes since GE Oil & Gas combined with Baker Hughes in 2017
Rack generations	5000 series (from 1965), 3300 series (from 1988), 3500 series (from 1995), Orbit 60 (current platform)
Product families	Machinery protection racks, proximity probes and proximitors, Keyphasor sensors, velocity and acceleration transducers, 2-wire vibration transmitters, general-purpose monitors, portable analyzers, wireless sensors and System 1 condition monitoring software
Typical machines	Steam and gas turbines, centrifugal and reciprocating compressors, pumps, motors, generators, fans and gearboxes

Milestones

1956: Donald E. Bently starts Bently Scientific in Berkeley, California.
1961: The company moves to Minden, Nevada, as Bently Nevada.
1965: The 5000 series monitoring system is introduced.
1988: The 3300 series follows.
1995: The 3500 machinery protection system is launched.
2002 and 2017: GE Energy acquires Bently Nevada; it becomes part of Baker Hughes in 2017.

Bently Nevada product series

Series	Type	What it does
3500	Machinery protection rack	Continuous online protection with alarm and danger relays. Modules include the 3500/15 power supply, 3500/20 rack interface, 3500/25 Keyphasor, 3500/42M proximitor/seismic, 3500/50 tachometer, 3500/60 temperature, 3500/33 relay and 3500/92 communication gateway
3500 recip modules	Reciprocating compressor monitoring	3500/70M impulse velocity, 3500/72M rod position and 3500/77M cylinder pressure
Orbit 60	Protection and monitoring platform	The current Bently Nevada platform for protection, condition monitoring and data integration with System 1
3300 XL 8 mm	Proximity transducer system	Probe, extension cable and proximitor sensor for radial vibration, thrust position and Keyphasor reference on fluid-film bearing machines; also 5 mm and 25 mm versions
330500 Velomitor, 190501 Velomitor CT	Piezo-velocity sensors	Casing velocity on rolling-element bearing machines and low-speed cooling tower fans
990 and 991	2-wire transmitters	4-20 mA vibration (990) and thrust position (991) signals straight into a PLC or DCS, without a monitor rack
1900/65A, 2300	Compact monitors	Protection for balance-of-plant pumps, fans and motors where a full 3500 rack is not justified

A proximity probe measures the gap to the shaft, so it sees shaft movement inside a fluid-film bearing directly. A velocity or acceleration sensor sits on the casing and suits rolling-element bearing machines. Critical turbomachinery usually carries two X-Y probes per bearing, two axial probes for thrust position and a Keyphasor probe for speed and phase.

Where Bently Nevada systems are used

In Oman and the GCC, Bently Nevada racks and probes protect gas turbines, compressors and steam turbines in gas processing, LNG, refining, petrochemical, power and desalination plants. Many installations are 3500 racks that have run for years, so most requests are for like-for-like module, probe, extension cable and proximitor replacements, plus upgrades to newer monitors.

Ordering and replacement: what we need

For probes and proximitors, send the full part number with all option digits (for example 330101-00-27-10-02-05). The digits set the probe length, cable length, connector and approvals, and the probe, cable and proximitor must match in total system length. For 3500 modules, send the module and I/O part numbers from the rack and say whether the I/O is internal or external termination, or barrier type. If a module is obsolete, we quote the replacement that Bently Nevada names and point out any configuration or firmware change.

Facts checked against Baker Hughes Bently Nevada pages and published company history, October 2026.

Browse Bently Nevada products by category: Vibration.

FAQ

Questions about the Bently Nevada 3300 XL Proximitor 330180-50-05

Answers from our engineering team on installation, compatibility and integration.

01What is the 3300 XL Proximitor used for?

The 3300 XL Proximitor converts the proximity probe signal into a DC voltage proportional to the measured gap, for radial vibration and axial position monitoring on rotating machinery. It is the signal conditioning module of the 3300 XL transducer system.

02Is the Proximitor sold with the probe and extension cable?

The 3300 XL system is ordered as a matched set of probe, extension cable and Proximitor against the complete system part number. Seven Star LLC confirms the matching components before your order is placed.

03What does the 50 configuration in the part number mean?

The 50 configuration identifies the 5.0 m system length with panel mounting for this Proximitor configuration. Your original part number should be checked to confirm the system length.

04Does this Proximitor work with 3300 XL 5 mm probes?

The 330180 family operates with the 3300 XL probe range. Confirm the probe diameter and part number of your installed transducer set so the matching Proximitor is supplied.

05How is the Proximitor powered?

The module is powered from the monitor supply or a dedicated -24 Vdc supply, and includes a test jack for verifying the transducer loop from the terminal strip.
