ABB ACS480-04-018A-4 General Purpose Drive 7.5 kW 17 A
Description
A 7.5 kW ACS480-04 for 400 V machines

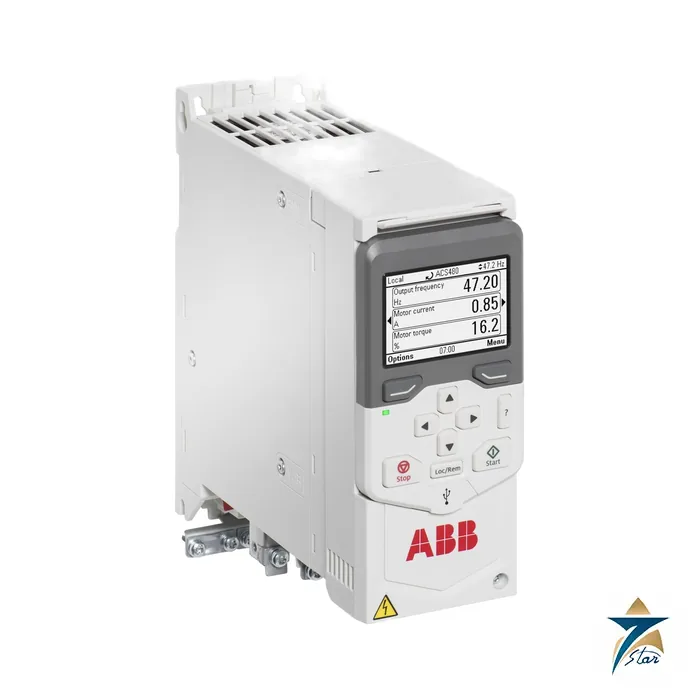

ACS480-04-018A-4 is an ABB ACS480 general purpose drive in module construction for three-phase 380 to 480 V supplies. The hardware manual lists 7.5 kW at 17 A nominal output on frame R3, a body 172 mm wide, 220 mm high and 208 mm deep that weighs 2.5 kg in IP20 form. The 7.5 kW rating opens frame R3, used for mid-size fans, pumps and compressors.
The standard unit includes Safe Torque Off, coated circuit boards, support for induction, permanent magnet and ABB SynRM motors and a cold configuration adapter connection for CCA-01. Neighbouring ratings are listed in AC drives, and ABB’s wall-mounted general purpose drive is described on the ABB ACS580 drive page.
Technical specifications
| Parameter | Specification |
|---|---|
| Type code | ACS480-04-018A-4 |
| Platform | ACS480-04 cabinet-optimised module |
| Input supply | Code 4: 380-480 V, three-phase |
| Housing frame | R3 |
| Nominal output | 7.5 kW, 17 A |
| Light-duty output | 7.5 kW, 16.2 A |
| Heavy-duty output | 5.5 kW, 12.6 A |
| Imax | 22.7 A |
| I1n without / with choke | 23.4 A / 17 A |
| gG fuse | 32 A, OFAF000H32 |
| gR fuse | 63 A, 170M2698 |
| Circuit breaker | S 203P-B 32 |
| Thermal data | 259 W / 128 m3/h / 66 dB(A) |
| Factor for 8 kHz and 12 kHz | 0.68 / 0.51 |
| Size in IP20 | 220 x 172 x 208 mm |
| IP20 net weight | 2.5 kg |
Current ratings for the 17 A type
The IEC ratings table gives nominal use 17 A / 7.5 kW, light duty 16.2 A / 7.5 kW and heavy duty 12.6 A / 5.5 kW, with a maximum current of 22.7 A. The input current is 23.4 A without a choke and 17 A with a choke. Take the motor nameplate current as the starting point, not the kilowatt figure alone.
Fuse choices are 32 A gG type OFAF000H32 (minimum short-circuit current 256 A) and 63 A gR type 170M2698; ABB also lists S 203P-B 32 as a circuit breaker. Typical power loss is 259 W, air flow 128 m3/h and noise 66 dB(A).
Derating matters in warm or high-frequency applications: the factor for this type is 0.68 at 8 kHz and 0.51 at 12 kHz. At +50 to +60 degrees C the output current falls by 1% per additional degree, and above 1000 m by 1% per 100 m. ABB permits 4 kHz without derating.
Mount the module with 75 mm of free space above and below. Frame R3 measures 172 x 220 x 208 mm and weighs 2.5 kg (UL Type 1 kit: 329 mm high, 3.2 kg). Motor cables up to 100 m are allowed for operation; EMC limits are stricter: 30 m for category C3 and 10 m for C2 with the internal filter, or 40 m for C1, C2 and C3 with the optional external filter.
How the code is built
Read ACS480-04-018A-4 in four parts: ACS480 is the series, 04 is the module construction, 018A the size from the ratings table and 4 the 380 to 480 V input. With no options the drive is IP20, cabinet-optimised, with the ACS-AP-S panel, RIIO-01 module, C2 filter, STO and brake chopper. Option codes are added with a plus sign, for example K458 for FSCA-01 RS-485, K469 for FECA-01 EtherCAT, K470 for FEPL-02 POWERLINK and K475 for FENA-21 Ethernet.
Other manual data: switching frequencies of 2, 4, 8 or 12 kHz, a fundamental power factor of 0.98 at nominal load, induction, permanent magnet and SynRM motor control and a short-circuit proof motor output.
Documents and quotation
Seven Star LLC can quote the ACS480-04-018A-4 from Muscat. Attach the motor nameplate and the supply voltage to your RFQ. The linked ABB hardware manual (3AXD50000047392, revision F) supplies the ratings, fuses, losses, derating and dimensions shown.
Please confirm the ordering code, panel and fieldbus options, and the site derating before you order.
