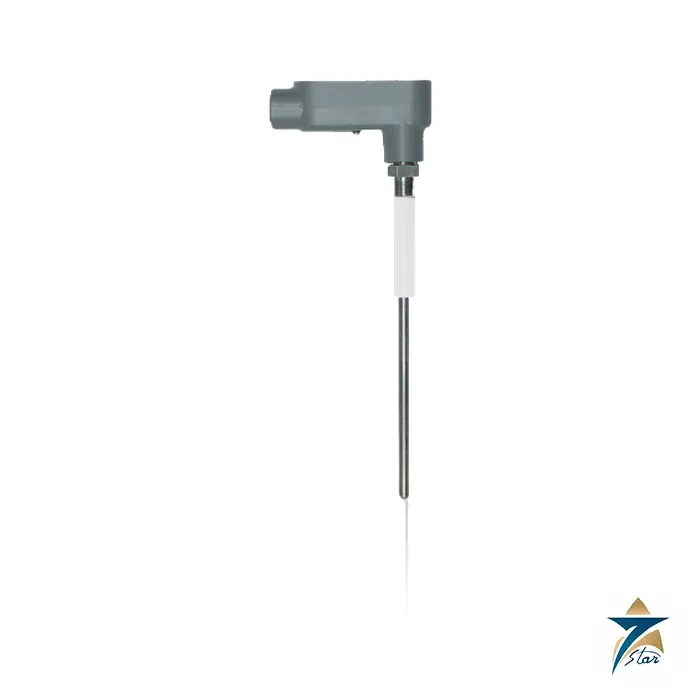

ABB Capacitance Level Switch A75 RF
Overview
The ABB A75 RF is a capacitance level switch engineered for precise, reliable point-level detection across a wide range of industrial applications. Using radio frequency (RF) capacitance technology, the A75 RF accurately detects the presence or absence of solids and liquids, making it a versatile solution for water treatment, chemical processing, food and beverage, and bulk materials handling facilities.
Seven Star LLC supplies the ABB A75 RF to water treatment, chemical, and bulk materials handling operators across Oman and the wider GCC as an experienced supply partner for genuine ABB instrumentation. Every unit is supplied on request with manufacturer documentation, and supported locally with application guidance for different dielectric materials.
Operating Principle
The A75 RF detects level by measuring the change in capacitance between its probe and the vessel wall (or a reference electrode) as the process material contacts the sensing element – different materials have different dielectric constants, and the A75 RF’s RF-based circuitry is engineered to detect materials across a wide range of dielectric properties. Its RF admittance design specifically compensates for probe coating and buildup, distinguishing it from simpler capacitance switches that can false-trigger when material sticks to the probe.
Built-in self-diagnostic functions and fail-safe features ensure continuous and safe operation, so a switch fault reports itself rather than silently failing into an undetected state – an important safety characteristic for high- or low-level alarm duty. A selectable time delay of 0, 5, 10, or 15 seconds on rising level lets the switch ignore momentary splashing or surface turbulence rather than false-triggering on every wave.
Engineering Design of the ABB A75 RF
Designed for harsh environments, the A75 RF ensures dependable operation even in the presence of foam, buildup, or extreme temperatures. Its robust construction resists corrosion and abrasion, providing long-lasting performance with minimal maintenance requirements even in abrasive bulk-solids handling applications.
Installation is simple and flexible, with various mounting options available to suit different setups – top-mounted, side-mounted, or in a bypass chamber – giving engineers the freedom to position the switch at the correct level and orientation for a given vessel geometry. The standard probe is a 316 stainless steel rod (⅜ inch diameter, 12 inches long) with a ¾-inch NPT process connection, with PTFE insulation or a full PTFE coating available for aggressive or sticky media. Electronics are rated −40°C to 85°C ambient, while the probe itself is rated up to 230°C (450°F) depending on the insulation option selected, and the relay output is rated 5 A at 240 VAC or 30 VDC resistive, powered from 120 VAC standard (240 VAC or 12/24 VDC also available).
Key Features
- RF capacitance point-level detection for solids and liquids
- Detects materials across a wide range of dielectric constants
- Compensates for probe coating and buildup (RF admittance design)
- Dependable operation in foam, buildup, or extreme temperatures
- Built-in self-diagnostics and fail-safe features
- Robust, corrosion- and abrasion-resistant construction
- Flexible mounting options for different vessel configurations
- Suited to level monitoring, alarm functions, and interface detection
- Selectable 0/5/10/15-second time delay to ignore splashing or turbulence
- Probe rated to 230°C (450°F); electronics rated −40°C to 85°C ambient
- Relay output 5 A at 240 VAC or 30 VDC resistive
Industrial Applications
The A75 RF is ideal for level monitoring, alarm functions, and interface detection tasks across water treatment, chemical processing, food and beverage, and bulk materials handling – particularly in applications where material buildup or foam would cause false readings on a less sophisticated capacitance switch.
Across Oman’s water treatment and chemical processing sectors, and throughout the wider GCC, Seven Star LLC supplies the A75 RF as a trusted supplier of ABB products to facilities in Muscat, Sohar, and Salalah that require dependable, factory-genuine level switches with full local support, correctly matched between the bare, PTFE-insulated, or fully coated probe option the customer’s process material requires.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ABB A75 RF |
| Measurement Type | Capacitance (RF admittance) point-level detection |
| Detected Media | Solids and liquids, wide dielectric range |
| Probe | 316 SS rod, ⅜ in. dia. x 12 in.; PTFE insulation/coating optional |
| Process Connection | ¾ in. NPT standard; ½ in. NPT (category 1 probes) |
| Probe Temperature | Up to 230°C (450°F), insulation dependent |
| Electronics Temperature | −40°C to 85°C ambient |
| Relay Output | 5 A @ 240 VAC or 30 VDC resistive |
| Time Delay | 0/5/10/15 s, selectable |
| Power Supply | 120 VAC standard; 240 VAC or 12/24 VDC optional |
| Diagnostics | Self-diagnostic, fail-safe operation |
| Application | Water treatment, chemical, food & beverage, bulk solids |
Request a Quote for ABB Capacitance Level Switch A75 RF
Contact Seven Star LLC for a quotation on the ABB A75 RF capacitance level switch, with manufacturer documentation and local support across Oman and the GCC.
