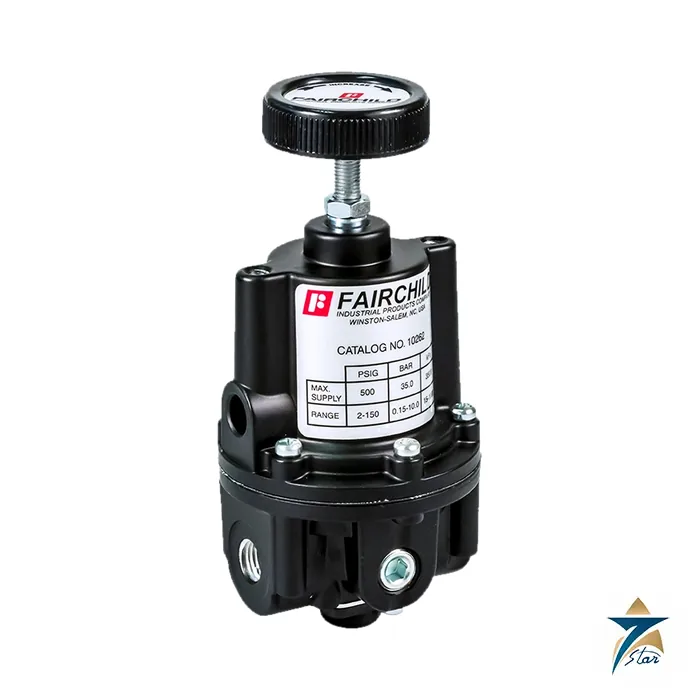

Rotork Fairchild Model 10 Pneumatic Precision Regulator

Name: Rotork Fairchild Model 10 Precision Regulator – Datasheet & Quote
Brand: Rotork
SKU: Fairchild Model 10

Description

The Rotork Fairchild Model 10 is a pneumatic precision pressure regulator for instrument air and control air lines where the outlet pressure has to stay put. Rotork’s datasheet gives a control sensitivity of 1/8 inch water column, which is what lets it serve as the supply regulator for positioners, transducers and other precision loops. A supply valve balanced by a rolling diaphragm keeps the output steady during wide supply swings, and an aspirator tube holds the setpoint as flow rises.

How the Model 10 holds its setpoint

The regulator works on a mechanical force balance. The range spring pushes the diaphragm assembly down, the supply valve opens and air passes to the outlet port. When downstream pressure reaches the setpoint, the force on the diaphragm balances the spring and the supply valve moves back toward its seat. A separate control chamber isolates the diaphragm from the main flow, which removes the hunting and buzzing seen in simpler designs, and the pressure-balanced supply valve stops supply pressure changes from shifting the setpoint.

Technical specifications

Parameter	Specification
Model	Fairchild Model 10 pneumatic precision regulator (catalog number begins 102)
Maximum supply pressure	500 psig (35.0 bar); 75 psig with silicone option; 250 psig with check valve option
Flow capacity	40 SCFM (68 m3/hr) at 100 psig supply and 20 psig setpoint
Exhaust capacity	5.5 SCFM (9.35 m3/hr) at 5 psig above a 20 psig setpoint
Supply pressure effect	Less than 0.1 psig for a 100 psig supply change
Sensitivity	1/8 inch water column (0.31 mbar)
Output ranges (psig)	0-2, 0-10, 0-20, 0.5-30, 1-60, 2-150, 3-200, 5-300, 5-400, plus a higher 5-500 range with its own supply limit
Port sizes	1/4, 3/8 or 1/2 inch NPT; BSPP and BSPT options
Ambient temperature	-40 to +200 degF (-40 to +93.3 degC)
Hazardous locations	Acceptable for Zones 1 and 2 gas (Groups IIA, IIB) and Zones 21 and 22 dust
Materials	Aluminum body and housing; Buna N on Dacron diaphragms (standard unit); brass and zinc plated steel trim
Approval	Canadian Registration Number (CRN) for all territories and provinces

Reading the catalog number and options

The catalog number is built from the model (102), a pressure range digit and a port size digit, followed by option letters. Port codes are 2 (1/4 inch), 3 (3/8 inch) and 4 (1/2 inch), and the range digit runs from 1 for 0-2 psig up to 9 for 5-400 psig. Rotork lists these option letters on the datasheet:

B low bleed, L low flow, D relieving with no bleed, N non-relieving, C internal check valve
E tapped exhaust, P panel mount, R plunger operated, S screwdriver adjust, T tamper proof
A silicone, J fluorocarbon, H BSPP threads, U BSPT threads, Y no yellow metals (must include J)

Not every option combines with every other one. The datasheet carries a compatibility chart, and low bleed or no-bleed choices reduce sensitivity. A mounting bracket kit, 09921 in zinc plated steel or 14523 in 316 stainless steel, is sold separately.

Where it fits and what to confirm

Typical duties are supply regulation for pneumatic instruments, loading controllers and precision test or calibration air. Where very low air consumption matters, compare it with the Rotork Fairchild Model 1000 no-bleed regulator. Before ordering, confirm the output range, port size and thread, the maximum supply pressure for the options you need, the elastomer for the media, and whether a legacy Fairchild catalog number needs to be matched.

Documents and quotation

The Rotork datasheet for the Model 10 is attached to this page. Send Seven Star LLC the full catalog number or the range, port, thread and options you need, and we will prepare a quotation from our regulators range.
