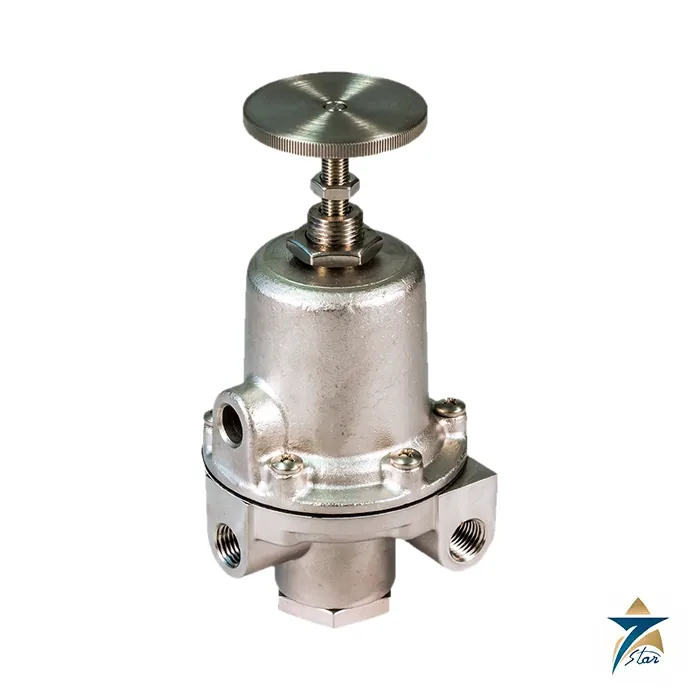

Rotork Fairchild Model 66 Pneumatic Stainless Steel Regulator

Name: Rotork Fairchild Model 66 Stainless Regulator – Datasheet & Quote
Brand: Rotork
SKU: Fairchild Model 66

Description

The Rotork Fairchild Model 66 is a stainless steel pneumatic regulator for corrosive surroundings and wide temperature swings. Where the aluminum Fairchild regulators would be attacked by salt air, process fumes or washdown, the Model 66 offers a stainless body, Viton elastomers and Teflon-faced trim, together with a large control diaphragm that Rotork says increases sensitivity. It is rated for supply pressures up to 500 psig and for ambient temperatures from minus 20 to plus 300 degF.

Operating principle

When the range screw is set, the range spring pushes down on the control diaphragm and opens the supply valve. Output pressure flows to the outlet port and, through the aspirator tube, to the control chamber under the diaphragm. At the setpoint the spring force and the output pressure force balance and the supply valve closes. If the output rises above the setpoint the diaphragm assembly lifts, closes the supply valve and opens the exhaust valve, so the excess leaves through the side vent. The aspirator compensates downstream pressure droop under flow, and the separate control chamber keeps the diaphragm out of the main flow to avoid hunting and buzzing.

Technical specifications

Parameter	Specification
Model	Fairchild Model 66 pneumatic stainless steel regulator (catalog number begins 662)
Maximum supply pressure	500 psig (35 bar)
Flow capacity	17 SCFM (28.9 m3/hr) at 100 psig supply and 20 psig setpoint
Exhaust capacity	1 SCFM (1.7 m3/hr) at 5 psig above a 20 psig setpoint
Supply pressure effect	Less than 0.1 psig for a 25 psig supply change
Sensitivity	1 inch (2.54 cm) water column
Output ranges (psig)	0-10, 0.5-30, 1-60, 2-100 and 2-150
Port sizes	1/4, 3/8 or 1/2 inch NPT; NPTF, BSPT or BSPP threads
Ambient temperature	-20 to +300 degF (-28 to +149 degC)
Body and housing	Stainless steel
Diaphragms	Viton (fluorocarbon) with Teflon on the control side
Trim	Stainless steel and Teflon

Catalog number choices

The ordering information on the datasheet builds the number from the model, a range digit, a port size digit and several letters:

Port thread: N NPTF, U BSPT, H BSPP; elastomer: J fluorocarbon
Actuator: K knob adjust or S screw
Relief: R relieving, N non-relieving, or A non-relieving with aluminum bonnet
Vent: S straight or E tapped exhaust
Mounting: N none or P panel mounting

Note that the non-relieving option with the aluminum bonnet is the only variant that uses the extra mounting holes shown on the outline drawing, and that this bonnet is aluminum rather than stainless steel.

Selection notes

The Model 66 trades flow for corrosion resistance: its 17 SCFM capacity and 1 inch water column sensitivity are lower than the aluminum Model 10 (40 SCFM, 1/8 inch). It therefore suits offshore, chemical and marine duties where body material governs the choice. Before ordering confirm the range, port size and thread, the relief type, the vent arrangement, and that Viton is compatible with the gas or air quality in your system. Fairchild instruction IS-10000066 covers installation and maintenance.

Documents and quotation

The Rotork datasheet is attached. Send Seven Star LLC the catalog number or your range, port and option needs and we will quote from our regulators range. A related no-bleed unit is the Rotork Fairchild Model 1000.
