Pepperl+Fuchs R101 Retro-Reflective Photoelectric Sensor

Overview

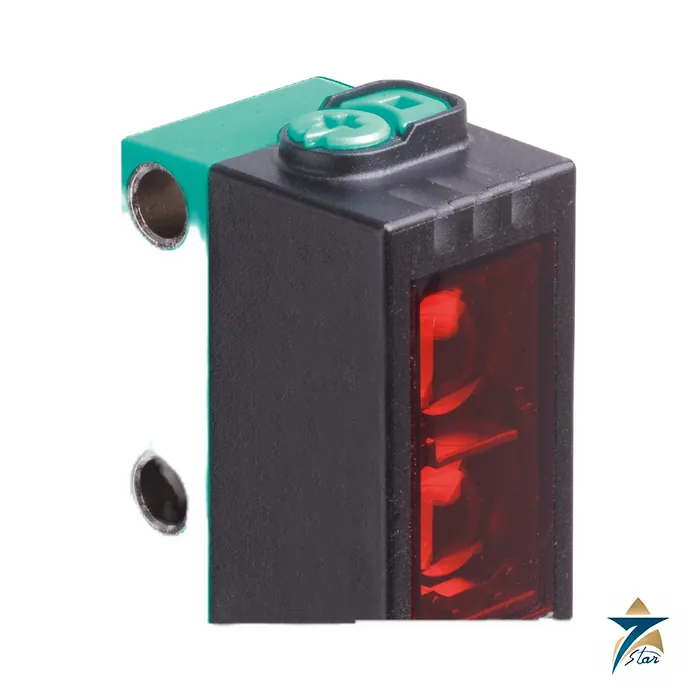

The Pepperl+Fuchs R101 retro-reflective photoelectric sensor is a miniature detection device built around Pepperl+Fuchs’ R101 platform, combining a compact housing, a polarization filter for reliable detection of reflective and glossy objects, and native IO-Link communication for parameter access and diagnostics. Representative variants such as the OBR7500-R101-E5-IO-0,3M-V1 deliver an effective detection range of up to 7.5 m against a standard reflector, with an extended ambient temperature rating and IP69K protection that suits both light-duty automation and demanding washdown environments alike.

With fast quotation turnaround and technical support, Seven Star LLC proudly supplies the R101 retro-reflective photoelectric sensor to manufacturing, packaging, and logistics facilities across the Sultanate of Oman and the wider GCC. Machine builders and integrators in Muscat, Sohar, and Salalah specify the R101 series for its miniature footprint and versatile mounting options, which allow it to be fitted into tight machine frames and conveyor structures where a standard-sized photoelectric sensor simply will not fit. Every sensor supplied by Seven Star LLC ships with full manufacturer traceability, warranty coverage, and access to regional technical support.

Operating Principle

The Pepperl+Fuchs R101 retro-reflective photoelectric sensor emits a modulated visible red light beam from an integrated LED emitter toward a dedicated reflector target – typically an H85-2 reflector – positioned on the opposite side of the detection zone, and continuously monitors the returning reflected light at its receiver. When an object interrupts the light path between the sensor and the reflector, the returning signal drops below the detection threshold and the sensor switches its output state, signaling object presence to the connected PLC or control system. The integrated polarization filter cancels out light reflected directly from glossy or metallic object surfaces, preventing false “clear path” readings that would otherwise occur when a shiny product itself acts as an accidental reflector.

Because detection relies on light reflected from a fixed reflector target rather than direct reflection from the object surface, the R101 tolerates a wide range of object colors, finishes, and surface textures without recalibration, and its 3.7° opening angle with an approximately 65 mm spot diameter at 1 m gives predictable, repeatable switching even on narrow or fast-moving targets. IO-Link connectivity over the standard M12 connector allows the sensitivity threshold, light-on/dark-on switching mode, and diagnostic parameters to be read and adjusted digitally from the controller, removing the need for physical access to the sensor once it is installed in a hard-to-reach machine location. The practical consequence is a rugged, low-maintenance presence sensor that eliminates the mounting complexity of a through-beam pair while retaining long detection range and reliable performance against reflective packaging film, glass, and polished metal parts.

Engineering Design of the Pepperl+Fuchs R101

The R101 series housing is engineered as one of the smallest retro-reflective sensors of its type, measuring roughly 33.8 mm high, 13.9 mm wide, and 18.3 mm deep, with a polycarbonate body and a PMMA optical face rated to IP67, IP69, and IP69K for resistance to dust, jetting water, and high-pressure washdown. A combined multiturn potentiometer and pushbutton on the sensor body allows intuitive on-site adjustment of sensitivity and switching functions without external software, while green and yellow status LEDs provide immediate visual confirmation of power status and object detection state during commissioning and troubleshooting.

Electrical connection is made via a fixed cable terminated in an M12 × 1, 4-pin connector, supporting a PNP output with short-circuit and reverse-polarity protection, an operating voltage range of 10–30 V DC, and a fast 0.5 ms response time suitable for high-speed packaging and sorting lines. The extended ambient temperature rating of -40°C to 60°C on fixed-cable variants makes the R101 suitable for both refrigerated logistics environments and hot outdoor equipment enclosures common across the GCC, while the IO-Link interface (revision 1.1) provides digital process data output alongside the standard switching signal for condition monitoring and predictive maintenance programs.

Key Features

The Pepperl+Fuchs R101 retro-reflective photoelectric sensor is specified across automation and logistics projects for the following reasons, and integrators comparing miniature photoelectric sensors regularly select the Pepperl+Fuchs R101 for these traits:

• The Pepperl+Fuchs R101 miniature housing with versatile mounting options fits tight machine frames where standard-sized sensors cannot be installed.
• The Pepperl+Fuchs R101 integrated polarization filter reliably detects objects against glossy, reflective, and metallic backgrounds without false triggers.
• Effective detection range up to 7.5 m against a standard reflector suits both close-range and extended-distance applications.
• IO-Link 1.1 communication enables remote parameter adjustment, diagnostics, and process data without physical sensor access.
• IP67, IP69, and IP69K protection ratings withstand dust, moisture, and high-pressure washdown in food and packaging environments.
• Combined multiturn potentiometer and pushbutton allow intuitive sensitivity and function adjustment directly at the sensor.
• Fast 0.5 ms response time and 1000 Hz switching frequency suit high-speed conveyor and sorting applications.
• Extended ambient temperature range of -40°C to 60°C supports both cold-chain logistics and hot outdoor installations.

Industrial Applications

The R101 – and the Pepperl+Fuchs R101 in particular – is deployed across packaging lines, conveyor and material handling systems, logistics sortation centers, and food and beverage processing equipment, wherever compact size and reliable detection of varied object surfaces are required. In bottling and packaging plants across the region it detects product presence on high-speed conveyors despite reflective film and glass surfaces, while in warehouse and logistics operations at Muscat and Sohar distribution centers it verifies carton and pallet position for automated sortation and palletizing equipment.

With engineering support in Muscat, Seven Star LLC supplies the R101 retro-reflective photoelectric sensor to system integrators, machine builders, and end users throughout Oman and the GCC, supporting projects in the Sohar and Salalah free zones as well as facilities across Muscat, Duqm, and the wider Gulf region. Local technical support gives automation engineers confidence that replacement sensors, connection accessories, and application engineering assistance can be quoted locally rather than only through European distribution.

Technical Specifications

The table below summarizes the core specifications of the Pepperl+Fuchs R101 as supplied by Seven Star LLC.

Request a Quote for Pepperl+Fuchs R101 Retro-Reflective Photoelectric Sensor

Machine builders and automation engineers across Oman and the GCC can request a formal RFQ for the Pepperl+Fuchs R101 directly from Seven Star LLC. Seven Star LLC supplies on request, provides the full technical datasheet on request, and connects buyers with our automation division for sensor selection support, IO-Link integration guidance, and technical support. Contact Seven Star LLC today to confirm lead times and pricing for the R101 retro-reflective photoelectric sensor.
