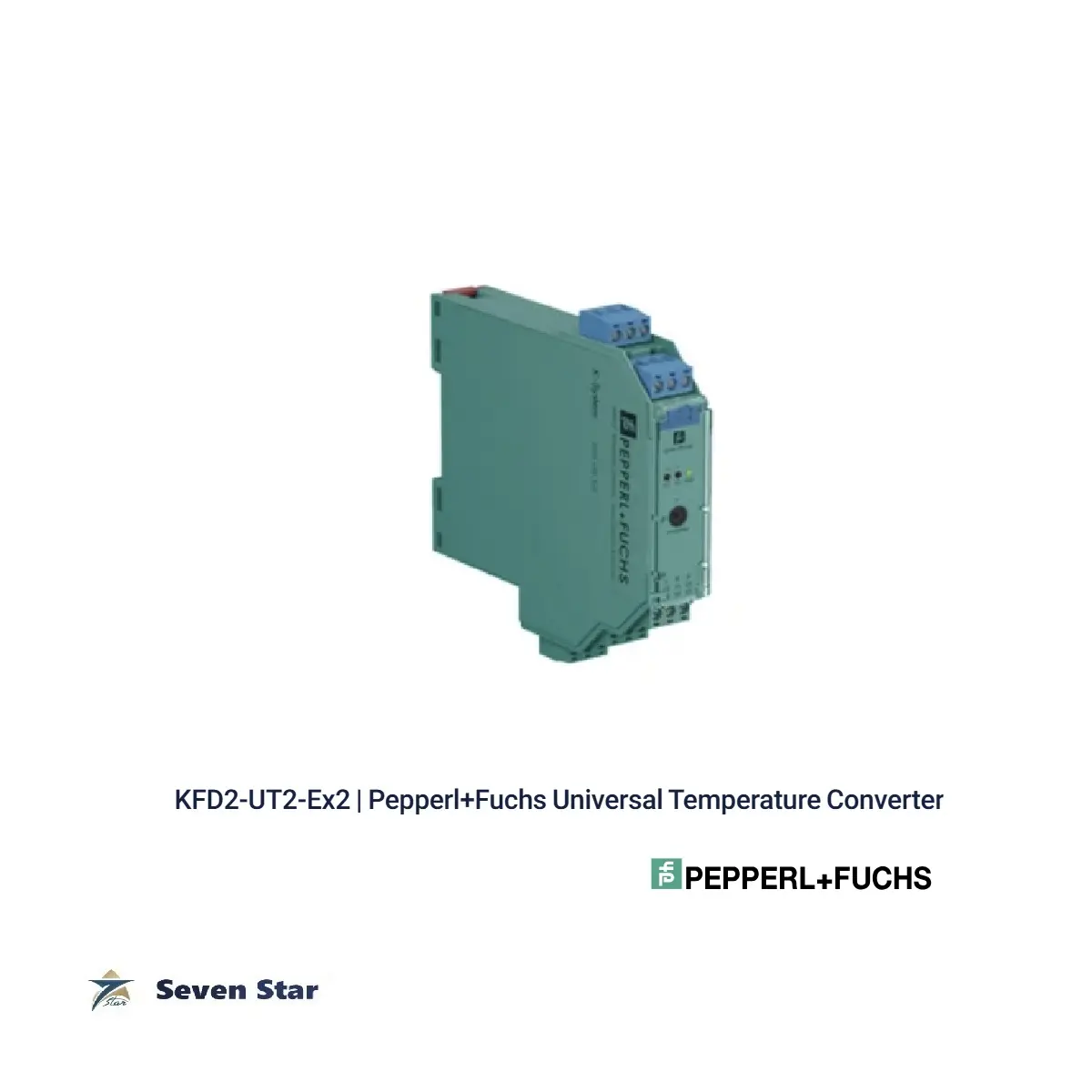

Pepperl+Fuchs KFD2-UT2-Ex2 Universal Temperature Converter

Name: P+F KFD2-UT2-Ex2 Temperature Converter – Datasheet & Quote
Brand: Pepperl+Fuchs

Description

Overview

The Pepperl+Fuchs KFD2-UT2-Ex2 is a two-channel isolated barrier and universal temperature converter for hazardous area installations. It converts the signal of a resistance thermometer (RTD), thermocouple, potentiometer or voltage source in the field into a proportional 2-wire current output on the safe side, and can also be configured as a signal splitter with one input and two outputs. Each channel provides intrinsic safety to the field circuits, and the device is certified for installation in Zone 0/1/2 and Division 1/2 applications with SIL 2 capability per IEC/EN 61508 and IEC/EN 61511.

Engineering and Design

The KFD2-UT2-Ex2 accepts RTD types Pt10 to Pt1000 per EN 60751 (plus GOST equivalents), Cu10-100 and Ni100, thermocouple types B, E, J, K, N, R, S, T, L and TXK/TXKH/TXA with internal or external cold junction compensation, potentiometers from 0 to 20 kOhm, and voltage inputs from -100 to 100 mV. Each channel outputs 0-20 mA or 4-20 mA in sink or source mode with a fault signal that follows NAMUR NE43 (downscale 0 or 2 mA, upscale 21.5 mA). Transfer deviation after calibration is typically +/-0.1% of span for Pt100, and the device detects sensor breakage and short-circuit with line fault (LFD) monitoring.

The module is powered from a 24 V DC supply via screw terminals or the P+F Power Rail with a consumption of max 1.53 W per module, and is configured through a programming socket using PACTware. The compact B2 housing measures 20 x 119 x 115 mm (W x H x D) with a mass of approx. 130 g and mounts on a 35 mm DIN rail per EN 60715. Certification includes EU-type examination certificate CESI 04 ATEX 143 with marking II (1)G [Ex ia Ga] IIC, II (1)D [Ex ia Da] IIIC and I (M1) [Ex ia Ma] I, and the removable terminal block K-CJC-** is available for cold junction compensation reference junctions.

Key Features

Two independent channels in a single 20 mm module – saves panel space
Universal input: RTD, thermocouple, potentiometer or -100 to 100 mV voltage
Intrinsically safe field circuits for Zone 0/1/2 and Division 1/2 applications
Signal splitter mode: one input driving two independent outputs
0-20 mA or 4-20 mA output in sink or source mode with 550 Ohm max load
SIL 2 certified per IEC/EN 61508 and IEC/EN 61511 for safety applications
Line fault detection (LFD) plus sensor breakage and short-circuit monitoring
NAMUR NE43 compliant fault indication (downscale or upscale)
PACTware configuration through programming socket with Power Rail supply option
Compact B2 housing, 35 mm DIN rail mount, ATEX [Ex ia] IIC/IIIC/Ma certified

Applications

Isolated signal conversion and intrinsic safety barriers for RTD, thermocouple and potentiometer signals in oil and gas, chemical, pharmaceutical and process plants, including SIL 2 rated loops and signal splitting applications.

Specifications

Function	2-channel isolated barrier, universal temperature converter
Input (field)	Pt10-Pt1000 (EN 60751 + GOST), Cu10-100, Ni100 (DIN 43760); thermocouples B/E/J/K/N/R/S/T/L/TXK/TXKH/TXA; potentiometer 0-20 kOhm; voltage -100 to 100 mV
RTD connection	2- or 3-wire, max 50 Ohm per line, measuring current approx 200 uA
Output (control side)	2 x 0-20 mA or 4-20 mA, sink or source, load 0-550 Ohm
Fault signal	Downscale 0 or 2 mA, upscale 21.5 mA (NAMUR NE43)
Supply	20-30 V DC (terminals 14+ / 15- or Power Rail)
Power consumption	Max 1.53 W
Accuracy (after calibration)	Pt100 +/- (0.06% + 0.1% of span + 0.1 K); thermocouple +/- (0.05% + 0.1% of span + 1 K)
Safety	SIL 2 per IEC/EN 61508 / IEC/EN 61511
Certification	CESI 04 ATEX 143 – II (1)G [Ex ia Ga] IIC, II (1)D [Ex ia Da] IIIC, I (M1) [Ex ia Ma] I
Degree of protection	IP20
Dimensions	20 x 119 x 115 mm (W x H x D), housing type B2
Mass	Approx. 130 g
Mounting	35 mm DIN rail per EN 60715:2001
Configuration	PACTware via programming socket

Why Seven Star LLC

Seven Star LLC supplies Pepperl+Fuchs intrinsic safety barriers and interface modules with verified specifications and certificates across Oman and the GCC. Our engineers help select the correct module, Power Rail accessories and configuration for your control system.

Request a Quote for Pepperl+Fuchs KFD2-UT2-Ex2 Universal Temperature Converter

Send your field sensor type, hazardous area classification and control system interface to our engineering team for a quotation. Use the Inquiry Form below – we confirm the KFD2-UT2-Ex2 configuration, accessories and pricing for your project. | Inquiry Form

How the Pepperl+Fuchs KFD2-UT2-Ex2 works

The module reads the temperature signal from a sensor in the field. It converts the signal into a proportional current output on the control side. Each channel is isolated from the other and from the supply.

Where the KFD2-UT2-Ex2 is used

Temperature loops with RTD sensors
Temperature loops with thermocouples
Potentiometer position signals
Signal splitting to two outputs
Compact panel installations

Selection checklist for the KFD2-UT2-Ex2

Sensor type
Number of channels
Output range
Sink or source mode
Supply voltage
Power rail use
Cold junction method
Splitter need

Installation, commissioning and maintenance notes for the KFD2-UT2-Ex2

Clip the module on the DIN rail and connect the field and output wires. Set the input and output ranges with the software. Check the wiring and the status LEDs at regular intervals.

Requesting a quotation for the Pepperl+Fuchs KFD2-UT2-Ex2

Please send the sensor type, the range and the output needed. Seven Star LLC serves industrial customers in Oman and the GCC and replies with a quotation based on the information provided.

KFD2-UT2-Ex2 module type

It is a universal temperature converter.

KFD2-UT2-Ex2 maker

It is made by Pepperl+Fuchs.

KFD2-UT2-Ex2 channels

It has two channels in one 20 mm module.

KFD2-UT2-Ex2 isolation

It is an isolated barrier module.

KFD2-UT2-Ex2 output

Each channel gives a proportional 2-wire current output.

KFD2-UT2-Ex2 splitter

It can work as a signal splitter with one input and two outputs.

KFD2-UT2-Ex2 RTD inputs

RTD inputs run from Pt10 to Pt1000, plus Cu10-100 and Ni100.

KFD2-UT2-Ex2 thermocouples

Thermocouple types include B, E, J, K, N, R, S, T and L.

KFD2-UT2-Ex2 cold junction

It supports internal or external cold junction compensation.

KFD2-UT2-Ex2 potentiometer

Potentiometer inputs run from 0 to 20 kOhm.

KFD2-UT2-Ex2 voltage input

Voltage inputs run from minus 100 to plus 100 mV.

KFD2-UT2-Ex2 current output

Each channel outputs 0-20 mA or 4-20 mA.

KFD2-UT2-Ex2 output mode

The output works in sink or source mode.

KFD2-UT2-Ex2 fault signal

Downscale is 0 or 2 mA and upscale is 21.5 mA.

KFD2-UT2-Ex2 line fault

Line fault monitoring detects sensor breakage and short-circuit.

KFD2-UT2-Ex2 supply

The supply is 24 V DC through screw terminals or the Power Rail.

KFD2-UT2-Ex2 power use

Power consumption is a maximum of 1.53 W per module.

KFD2-UT2-Ex2 configuration

It is configured through a programming socket with PACTware.

KFD2-UT2-Ex2 housing

The compact B2 housing measures 20 x 119 x 115 mm.

KFD2-UT2-Ex2 mass

The mass is about 130 g.

KFD2-UT2-Ex2 mounting

It mounts on a 35 mm DIN rail.

KFD2-UT2-Ex2 terminal block

A removable terminal block K-CJC is available for the cold junction reference.

Converter records for the KFD2-UT2-Ex2

Record the sensor type, the range and the date of each check.

Choosing the right KFD2-UT2-Ex2 setup

Choose the settings from the sensor type and the output range.

Datasheets & Documents

Datasheet Pepperl+Fuchs KFD2-UT2-Ex2 Universal Temperature Converter Datasheet Download

Reviews (0)

Reviews

There are no reviews yet.

How would you rate this product?

About brand

Two specialties define Pepperl+Fuchs, founded in 1945 and headquartered in Mannheim, Germany: industrial sensors for automation, and interface and protection equipment for hazardous areas. Many control cabinets in process plants contain rows of its isolators.

Seven Star LLC lists Pepperl+Fuchs sensors, isolated barriers, power supplies and hazardous-area mobile devices, and supplies them to instrument and automation teams in Oman by exact model designation.

Pepperl+Fuchs product families on this page

On the interface side there are two systems. The K-System mounts on DIN rail and is represented here by the KFD2-UT2-Ex2 universal temperature converter. The H-System plugs into termination boards and is represented by the HiD2030 SMART transmitter power supply with HART. The PS1000-A6-24.20 is a 24 VDC, 20 A power supply for cabinets. Sensors listed include the NJ2-12GK-SN NAMUR inductive sensor, the R101 retro-reflective photoelectric sensor and the R2000 2-D LiDAR scanner. For field staff there are the Tab-Ex 05 DZ1 tablet for Zone 1/21 areas and the Smart-Ex 03 DZ2 smartphone for Zone 2/22 and Division 2 areas.

Where Pepperl+Fuchs equipment is used

Isolated barriers sit between field instruments in Zone 0 or Zone 1 and the DCS or safety system in refineries, gas plants and chemical works. NAMUR sensors report valve position and machine states in classified areas. Photoelectric sensors and LiDAR scanners work in conveying, packaging, warehousing and vehicle guidance. Ex-rated tablets and phones are carried on operator rounds and maintenance jobs.

Ordering Pepperl+Fuchs parts: what we need

Send the complete model designation as printed on the device, including every suffix; a single letter can change the supply voltage or the output type. Add the part number if the label shows one. For barriers, tell us the field device and signal type, the number of channels and whether the safety loop needs a SIL-assessed module. For mobile devices, state the zone or division and the regional radio version.

Browse Pepperl+Fuchs products by category: Sensors & Transmitters, Industrial Computer, Isolator & Barrier, Power Modules.

Frequently Asked Questions

What inputs does the KFD2-UT2-Ex2 accept?

RTDs (Pt10-Pt1000 per EN 60751 plus GOST types, Cu10-100, Ni100), thermocouples (B, E, J, K, N, R, S, T, L, TXK/TXKH/TXA), potentiometers 0-20 kOhm and voltage inputs from -100 to 100 mV.

Is the KFD2-UT2-Ex2 intrinsically safe?

Yes. The field circuits are intrinsically safe with ATEX marking II (1)G [Ex ia Ga] IIC, II (1)D [Ex ia Da] IIIC and I (M1) [Ex ia Ma] I (CESI 04 ATEX 143), for Zone 0/1/2 and Division 1/2.

Can the KFD2-UT2-Ex2 be used as a signal splitter?

Yes. It is usable as a signal splitter with one input driving two independent 0-20 mA or 4-20 mA outputs in sink or source mode.

What is the safety rating of the KFD2-UT2-Ex2?

Up to SIL 2 per IEC/EN 61508 and IEC/EN 61511, with line fault detection (LFD) and sensor breakage/short-circuit monitoring.

How is the KFD2-UT2-Ex2 configured?

Through a programming socket using PACTware; the module is powered from 20-30 V DC via terminals or the Power Rail with max 1.53 W consumption.
