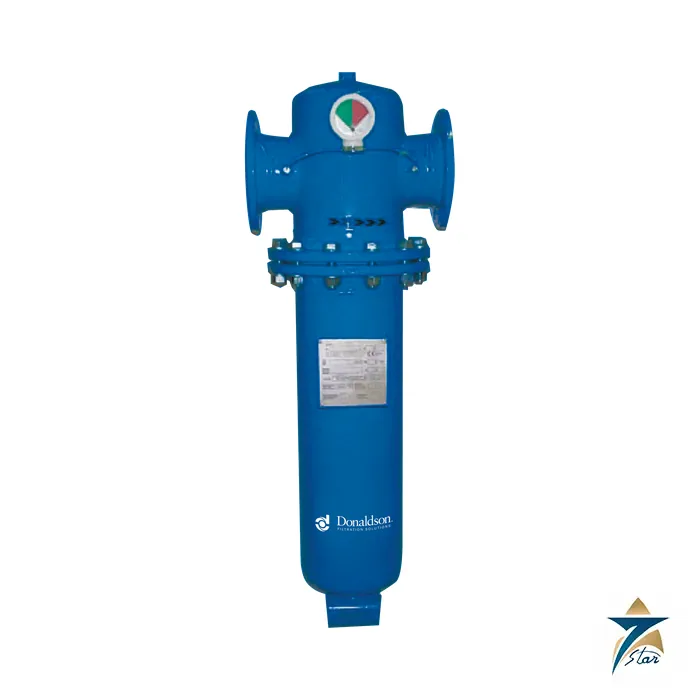

Donaldson SG 0108-3840 Flanged Compressed Air Filter Housing
Description
A flanged steel housing for large compressed air flows
The Donaldson SG 0108-3840 series is the flanged, welded-steel filter housing that Donaldson Filtration Deutschland offers for central compressed air stations. Thirteen sizes cover a nominal flow of 1,080 to 38,400 m3/h, which puts SG housings downstream of screw compressors, ahead of refrigeration dryers and after adsorption dryers where a threaded aluminium housing would be too small.
The housing is built as a pressure vessel to directive 2014/68/EU (or 2014/29/EU as printed in the data sheet) and is coated inside and out with polyester powder. Standard versions ship with an economizer differential pressure indicator and a float drain; the Superplus version adds an electronically level-controlled UFM-D condensate drain behind a ball valve.
Technical specifications
| Parameter | Specification |
|---|---|
| Series / sizes | SG 0108, 0144, 0192, 0288, 0432, 0576, 0768, 1152, 1536, 1920, 2304, 3072, 3840 |
| Nominal flow | 1,080 to 38,400 m3/h at 7 bar(g), referred to 1 bar abs. and 20 C |
| Connection | Flange DN 50 to DN 300 (EN 1092-1) |
| Max. operating pressure | 16 bar (test pressure 24 bar; 22.9 bar for sizes 1152-3840) |
| Permissible temperature | +1 C to +50 C at 16 bar, +1 C to +65 C at 15 bar (standard); A versions -20 C to +120 C with derating |
| Housing material | Steel, polyester resin powder-coated inside and outside |
| Seals | Aramid fibres |
| Housing volume / weight | 7.5 l / 28 kg (0108) up to 516 l / 590 kg (3840), weight without element |
| Element configuration | 15/30 up to 20 x 30/30 depending on size |
| Element grades | PE, SB, FF, MF, SMF, AK (separate element data sheets) |
| Versions | Standard, Superplus (economizer and UFM-D drain), bottom hinge for 1152-3840 |
| Directive | 2014/68/EU, 2014/29/EU pressure equipment (as printed) |
Sizes, flows and weights
- 0108: Flow m3/h 1,080; Flange DN 50; Volume l 7.5; Weight kg 28; Elements 15/30
- 0192: Flow m3/h 1,920; Flange DN 80; Volume l 16; Weight kg 40; Elements 30/30
- 0288: Flow m3/h 2,880; Flange DN 80; Volume l 23.5; Weight kg 54; Elements 30/50
- 0432: Flow m3/h 4,320; Flange DN 100; Volume l 31; Weight kg 80; Elements 3 x 20/30
- 0768: Flow m3/h 7,680; Flange DN 150; Volume l 70; Weight kg 130; Elements 4 x 30/30
- 1152: Flow m3/h 11,520; Flange DN 150; Volume l 107; Weight kg 166; Elements 6 x 30/30
- 1920: Flow m3/h 19,200; Flange DN 200; Volume l 192; Weight kg 262; Elements 10 x 30/30
- 3072: Flow m3/h 30,720; Flange DN 250; Volume l 335; Weight kg 400; Elements 16 x 30/30
- 3840: Flow m3/h 38,400; Flange DN 300; Volume l 516; Weight kg 590; Elements 20 x 30/30
The table picks nine of the thirteen sizes; the data sheet gives the remaining dimensions A to G and the lifting-eye and anchor-bolt positions for every size.
Choosing the element grade and the version
The housing only sets the flow range; filtration performance comes from the element. Data sheet values are initial differential pressure at 7 bar in dry condition: 0.03 bar for FF, 0.04 bar for MF and 0.05 bar for SMF coalescing grades, with residual oil content below 0.03, 0.02 and 0.01 mg/m3 respectively at 3 mg/m3 inlet. PE and SB particle grades are rated 100 percent at 25 micrometre, and the AK activated-carbon grade lists 0.003 mg/m3 residual oil when an MF or SMF filter sits upstream.
Sizes 1152 to 3840 are made with a bottom hinge, so the element can be changed without lifting the bowl, which saves headroom in a compressor room. Donaldson lists chemical, food and beverage, paint and lacquer, environmental and pharmaceutical industries for the family, and compressor pre-filtration for refrigeration or adsorption dryers as the standard duty.
Documents and quotation
To order SG 0108-3840, please settle the flow size, flange rating and element grade using Donaldson SG industrial filter housings data sheet (F119064, 06/2018), which is attached here, and then write to us. More in Filter Housings.
