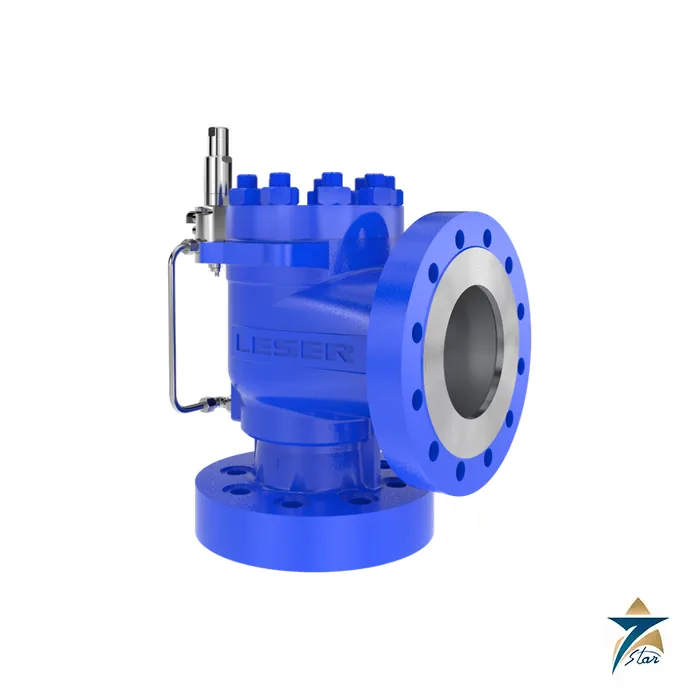

LESER High Efficiency POSV Series Safety Valves

Overview

The LESER High Efficiency series is LESER’s pilot-operated safety valve (POSV) platform, built for applications where a conventional spring-loaded direct-acting valve cannot deliver the tight operating margins, high capacity, or extreme temperature range that modern process plants demand. The family spans four types – Type 811 and Type 821 as single-outlet models, and Type 814 and Type 824 as dual-outlet variants – unified by a common pilot-operated architecture that allows the main valve to run at operating pressures up to 97% of set pressure and tolerate back pressures up to 95% of set pressure, margins a direct spring-loaded valve cannot match.

Backed by genuine manufacturer documentation, Seven Star LLC supplies the full High Efficiency POSV range with complete manufacturer documentation, materials certification, and technical sizing support. Process engineers across the region specifying LNG, cryogenic, or high-pressure gas systems can source LESER pilot-operated hardware through Seven Star LLC with a formal quotation and the manufacturer datasheet.

Operating Principle

Unlike a direct spring-loaded safety valve, every valve in the LESER High Efficiency series uses a small pilot valve to sense system pressure and control the main valve’s large piston-actuated disc. Because the main disc is held closed by system pressure acting on a piston rather than by a spring alone, the valve can operate much closer to its set point without simmering or leaking, and can be built in far larger orifice sizes for a given set pressure than equivalent spring-loaded design. The High Efficiency Type 811 and Type 814 use LESER’s Pop Action pilot, which snaps the main valve fully open once the set pressure is reached, giving maximum relieving capacity in the shortest possible time – the characteristic behavior that makes this series ‘high efficiency’ relative to conventional designs.

The High Efficiency Type 821 and Type 824 instead use a Modulate Action pilot, opening the main valve in proportion to the degree of overpressure rather than snapping fully open, which reduces medium loss and mechanical shock on the piping system during minor pressure excursions. Types 814 and 824 add a second discharge outlet to the same pilot-operated body, letting a single valve vent to two separate downstream systems (for example, a flare header and an atmospheric vent) without installing two full valve assemblies. Across all four types, the pilot-operated principle allows service down to -162°C, covering LNG and other cryogenic duties that would be impractical for a standard spring-loaded valve.

Engineering Design of the LESER High Efficiency Series

All four High Efficiency types share a common main-valve body architecture sized from DN 25 to DN 200 (NPS 1 to NPS 8), with the pilot assembly mounted externally where it can be inspected, tested, or replaced without removing the main valve from the line. Materials extend well beyond standard carbon and stainless steel to include Duplex, Monel, and Hastelloy alloys, reflecting the series’ use in sour gas, offshore, and other highly corrosive or cryogenic services where standard steels are unsuitable.

The distinction across the family is the pilot action and outlet configuration rather than the core body platform: Type 811 (Pop Action, single outlet) covers the widest pressure range at 2.5–255.5 bar; Type 821 (Modulate Action, single outlet) extends to a much higher 1.0–650 bar; and Types 814 and 824 apply the same Pop Action and Modulate Action pilots respectively to a dual-outlet body for DN 100–200 applications requiring simultaneous relief to two destinations. This lets a specifying engineer choose action type and outlet count independently while keeping a common pilot-operated maintenance philosophy across the installed base.

Key Features

The LESER High Efficiency POSV series delivers a consistent set of advantages across all four types:

• Pilot-operated design permits operating pressures up to 97% of set pressure, far tighter than direct spring-loaded valves.
• Back-pressure tolerance up to 95% of set pressure suits flare and closed-header discharge systems.
• Pop Action types (811, 814) deliver maximum relieving capacity with a fast, full-open response.
• Modulate Action types (821, 824) reduce medium loss and piping shock during minor overpressure events.
• Dual-outlet types (814, 824) route a single valve’s relief flow to two separate downstream systems.
• Temperature range of -162°C to 320°C (-260°F to 608°F) covers cryogenic LNG duty through high-temperature process gas.
• Material options including Duplex, Monel, and Hastelloy extend the series into sour and corrosive gas service.
• External pilot mounting allows inspection and testing without removing the main valve from the process line.

Industrial Applications

The LESER High Efficiency POSV series is specified wherever process conditions exceed what a direct spring-loaded valve can safely or economically handle: LNG liquefaction and regasification terminals, cryogenic air separation units, high-pressure gas transmission stations, offshore platforms, and sour gas processing trains. In the Sultanate of Oman and across the wider GCC, this includes LNG and gas processing infrastructure serving the Sohar and Salalah economic zones, where cryogenic storage, high-pressure compression skids, and flare header systems depend on pilot-operated relief valves for both capacity and tight operating margins.

Working closely with plant engineers in the region, Seven Star LLC supplies the High Efficiency POSV range to EPC contractors, oil and gas operators, and industrial gas plants throughout Oman and the GCC, backing every supply with genuine manufacturer documentation and pilot-operated system sizing support. Facility engineers specifying dual-outlet relief for flare and vent systems, or cryogenic-service protection for LNG trains, can rely on this trusted supply channel for Type 811, 821, 814, or 824 without compromising on traceability.

Technical Specifications

The table below compares the four current LESER High Efficiency POSV models so specifiers can select the correct pilot action and outlet configuration.

Request a Quote for LESER High Efficiency

Seven Star LLC invites process engineers, EPC contractors, and LNG or gas processing operators across Oman and the GCC to submit a formal RFQ for the LESER High Efficiency POSV series, Type 811, 821, 814, or 824. Standard sizes are supplied on request with lead time confirmed at quotation, and a technical datasheet download can be provided on request alongside pilot-operated system sizing support from our instrumentation and valve engineering division. With fast quotation turnaround and technical support, Seven Star LLC guarantees genuine manufacturer hardware, full certification, and dedicated aftersales support for every High Efficiency valve supplied.
