Brand: Kaeser

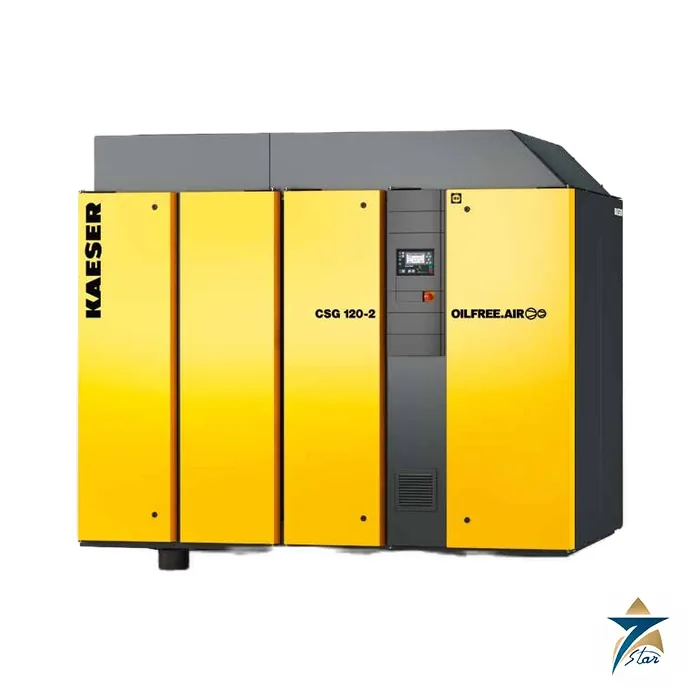

Kaeser CSG-2 DSG-2 FSG-2 Oil-Free Screw Compressors
Description
Two-stage dry-running screw compressors for oil-free air
The Kaeser CSG-2, DSG-2 and FSG-2 series are two-stage, oil-free compression rotary screw compressors for applications where oil must not reach the compressed air, such as food, pharmaceutical, semiconductor, automotive and sensitive process supply. The brochure states flow rates of up to 51 m³/min at 4 to 10 bar. The airend runs dry, with a hydraulically operated inlet valve and fibre-free pulse dampers that keep pressure pulsation down, and the packages use the SIGMA CONTROL 2 controller with its own web server. Base-load units run at fixed speed with IE4 motors; peak-load SFC units use a synchronous reluctance motor with a matched Siemens frequency converter for system class IES2.
Technical specifications
| Parameter | Specification |
|---|---|
| Series and motor ratings | CSG-2: 37, 45, 55, 75 and 90 kW (CSG 55-2, 70-2, 90-2, 120-2, 130-2); DSG-2: 90 to 200 kW (DSG 140-2, 180-2, 220-2, 260-2, 290-2); FSG-2: 160 to 355 kW (FSG 300-2, 350-2, 420-2, 450-2, 500-2, 520-2) |
| Flow rate at 8 bar, standard versions | DSG 140-2: 13.18 m3/min; DSG 180-2: 18.4; DSG 220-2: 21.6; DSG 260-2: 26.0; DSG 290-2: 28.5; FSG 350-2: 34.9; FSG 420-2: 42.0; FSG 500-2: 50.0 m3/min |
| SFC control ranges | CSG 70-2: 3.12 to 7.71 m3/min at 6 bar; DSG 180-2: 9.46 to 20.79 at 6 bar; FSG 420-2: 14.79 to 44.56 at 6 bar; FSG 500-2: 16.94 to 50.7 at 6 bar |
| Pressure range | 4 to 10 bar for the combined series (see brochure for the pressure of each variant) |
| Dimensions W x D x H (CSG-2) | 2490 x 1660 x 2145 mm; CSG-2 T 2840 x 1660 x 2145 mm |
| Sound pressure level | 71 dB(A) on CSG 55-2 T to 82 dB(A) on FSG 500-2 (tolerance given in the brochure) |
| Mass examples | CSG 70-2: 2310 kg; DSG 180-2: 3550 kg; FSG 420-2: 5950 kg; i.HOC and SFC variants are heavier |
| Versions | Air-cooled and water-cooled; with refrigeration dryer (T) or i.HOC integrated heat-of-compression rotation dryer; heat recovery with water cooling |
| Controller | SIGMA CONTROL 2 with RFID reader, SD card slot, integrated web server, Ethernet; communications modules for Profibus DP, Modbus TCP, Profinet and DeviceNet |
i.HOC drying and water cooling
The patented i.HOC rotation dryer uses the heat of compression for regeneration. According to the brochure it holds dependable sub-zero pressure dew points even at high ambient temperatures, keeps the dew point stable at low load and can be fitted with dew point control. The water-cooled versions cool both the low and high pressure stages and allow simultaneous drying and heat recovery. Request the datasheet values for the i.HOC and water-cooled variants, because their mass, sound level and dimensions differ from the air-cooled units.
Oil-free compared with oil-injected Kaeser series
These oil-free models sit alongside the oil-injected SIGMA PROFILE range. Where an oil-injected machine with downstream filtration is acceptable, the fluid-cooled series below cover similar delivery at lower purchase cost; where no oil may enter the process, the oil-free series applies.
| Kaeser series | Flow rate, m3/min | Pressure, bar |
|---|---|---|
| CSD(X) | 1.1 to 19.4 | 5.5 to 15 |
| DSD | 3.5 to 26.6 | 5.5 to 15 |
| ESD | up to 47.2 | up to 15 |
| FSD | up to 61.4 | up to 15 |
Selecting and ordering
Choose by delivery at the working pressure, the cooling medium available, the required pressure dew point and the load profile, then compare fixed speed against SFC. Confirm the supply voltage, ambient temperature, cooling water quality and quantity, and the controller interface. Seven Star LLC, an independent supplier in Muscat, quotes the exact model. The brochure is attached and the wider range is under Compressors.
Datasheets & Documents
- Brochure Kaeser CSG-2, DSG-2, FSG-2 oil-free compression brochure Download
Reviews (0)
About brand
Kaeser Kompressoren is a German manufacturer of compressors, blowers and compressed air systems. Carl Kaeser Sr. established the company as a machine workshop in Coburg, Germany, on 27 June 1919, and the first reciprocating compressor followed in 1948. Today the range covers rotary screw and reciprocating compressors, rotary screw, turbo and rotary lobe blowers, compressor controllers, air treatment and the MOBILAIR portable compressors.
Kaeser compressor and blower range
The rotary screw compressors use the SIGMA PROFILE airend and the SIGMA CONTROL 2 controller, from compact units up to the large series for 515 kW, with oil-free compression models for sensitive applications. Rotary screw vacuum packages and several blower types for process air and aeration complete the machinery side of the Kaeser catalogue.
Compressed air treatment and ancillaries
Kaeser air treatment covers refrigeration and desiccant dryers, filters and activated carbon adsorbers, condensate drains and condensate treatment, plus air receivers and the SIGMA AIR MANAGER master controller. Send the free air delivery, working pressure, ambient temperature and required air quality to have the right Kaeser model confirmed before an offer is issued.
Related products
Frequently Asked Questions
What delivery range does the CSG-2, DSG-2 and FSG-2 cover?
Up to 51 m3/min at pressures from 4 to 10 bar according to the brochure.
Are these compressors oil-free?
Yes. They are two-stage oil-free compression rotary screw compressors running dry.
What does i.HOC mean?
Integrated Heat of Compression dryer, a rotation dryer that uses compression heat to regenerate the desiccant.
Are variable speed versions offered?
Yes, SFC versions with a synchronous reluctance motor and Siemens frequency converter, rated IES2.
Can they be water-cooled?
Yes. Both the low and high pressure stages can be water-cooled, with heat recovery available.
