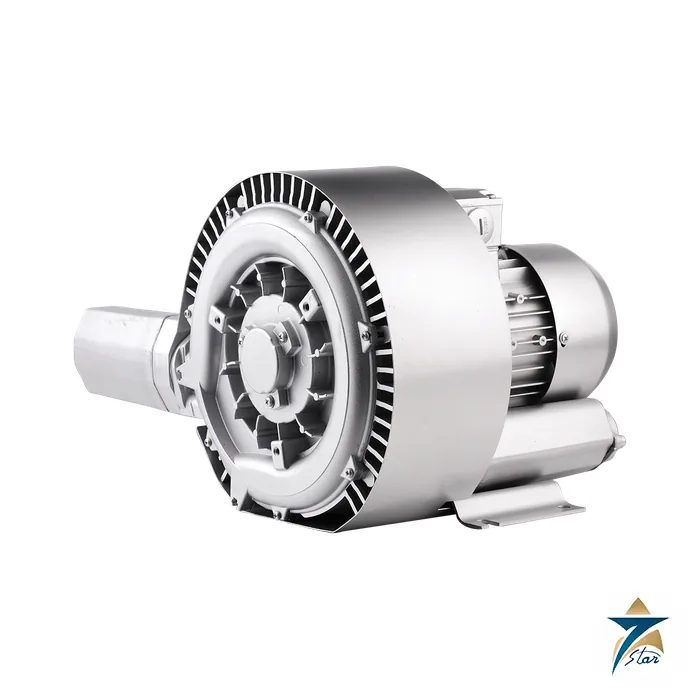

SEKO BL320002 Double Impeller Side Channel Blower 0.70 kW

The SEKO BL 320 002 is the small end of SEKO’s double-impeller side channel blower range: a 0.70 kW unit with 88 m3/h of airflow at 50 Hz, -210 mbar vacuum and 240 mbar pressure, weighing 15 to 16 kg. It comes in a three-phase version (BL32000200700) and a single-phase version (BL320002M0700).

Quiet at 55 dB(A) and light enough to be lifted by hand, it suits skid-mounted air supply, small aeration tanks, vacuum holding and laboratory or pilot plant work.

Compact ring blower for small air and vacuum jobs

Like its larger relatives, the BL 320 002 works on the lateral duct principle and can serve as exhaust or compression fan in continuous service, with the impeller mounted directly on the motor shaft, dynamically balanced rotating parts and a die-cast aluminium body. Its G 1 1/4 connection suits small-bore piping. It is a sensible choice for oil-free air to package aeration units, ozone and gas-transfer skids, suction lifting of small tanks, and as a vacuum source on packaging and printing equipment.

Datasheet features

• Lateral channel principle; exhaust or compression use, designed for continuous service
• Mounted directly on the motor shaft with dynamically balanced rotating parts
• Three-phase and single-phase versions
• Connection G 1 1/4
• Full die-cast aluminium construction
• Data referred to gas at 15 C, 1.23 kg/m3 and 1023 mbar absolute, tolerance plus or minus 10 percent

Technical specification

Choosing the right order code

Pick BL32000200700 when a three-phase 200-240 V delta or 345-415 V star supply is available, and BL320002M0700 for a 220-240 V single-phase supply such as site sockets, mobile skids and light commercial buildings. The single-phase version draws 4.5 A at 50 Hz against 3.8 A or 2.2 A for the three-phase one, so check cable sizing. Pressure and vacuum figures are identical at 50 Hz; 60 Hz operation raises both airflow and pressure.

Fitting and installation

The datasheet lists the following accessories for this frame: safety valve BLSV032L02 with kit BLKS032032C, in-line filters in paper (BLIL032PA007), polyester (BLIL032PO025) and stainless steel 30 and 60 micron (BLIL032SS030, BLIL032SS060), cartridge filter BLCF032PA007, nipple and socket kits (BLKC032PN, BLKC032PS), final silencer BLFS032ZP or BLFS032ZPR, indoor filter BLIF032ZP100, pressure gauge BLMN06306, vacuum gauge BLVG06306, sleeve and hose clip kit BLSH032, check valve BLCV032AL and anti-vibration pins BLAV06.

Always fit the safety valve on the pressure side and a filter on the inlet. Allow free air around the motor so heat can escape, and avoid blocking the outlet.

Where the BL320002 is used in the Gulf

Typical GCC uses include package sewage treatment plants, small aeration and ozone skids on water-treatment sites, vacuum pick-up on filling lines, and air-bearing or drying duties in light industry. A stainless steel inlet filter helps in sandy, dusty air; wash or replace it on a schedule.

Selection and installation notes

A side channel blower is selected from the airflow, the vacuum or pressure, the duty cycle and the ambient temperature. Provide a clean intake with a filter, protect the motor against overload, keep the discharge line free of restrictions, fit a safety valve when the system could be blocked and leave clearance around the unit for cooling and for the noise level at the site.

Before ordering, compare the ratings on the data sheet with the project specification, check the connection sizes and the supply conditions, and confirm which accessories, spares and documents travel with the unit. On delivery, inspect the packing, compare the nameplate with the order and keep the manual with the site records so that later commissioning and maintenance work can follow the maker instructions. Ask us if any detail is unclear and we will check it with the supplier before the order is placed.

Information needed for a quotation

Send the full model code, the quantity, the delivery location in Oman or the GCC, the intended use and any accessories needed, so that the complete package can be quoted together.

Documents and supply information

The manufacturer data sheet is attached to this page and should be read together with the project specification and the site risk assessment before a purchase is confirmed. Ratings, standards and dimensions are quoted as printed on that sheet. Lead time, stock position and certificates available with the shipment are confirmed in the quotation, and we supply to Oman and the wider GCC region for industrial, utility and building services projects.

Related products

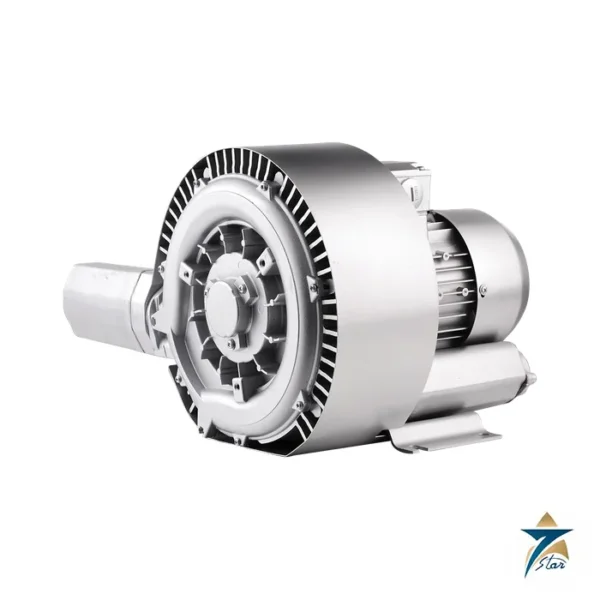

Larger frames in the same SEKO family include the BL 095 020 at 15 to 25 kW. See other blowers and compressed-air equipment in Compressors.

Frequently asked questions

What are the two order codes?
BL32000200700 is the three-phase version and BL320002M0700 is the single-phase version.

How much air does it move?
88 m3/h at 50 Hz and 102 to 103 m3/h at 60 Hz, at the datasheet test condition.

What vacuum and pressure can it reach?
-210 mbar vacuum and 240 mbar pressure at 50 Hz; -250 and 250 mbar at 60 Hz.

How heavy and how noisy is it?
15 kg (three-phase) or 16 kg (single-phase); 55 dB(A) at 50 Hz and 61 dB(A) at 60 Hz.

What connection does it have?
G 1 1/4, with a flange fixing drawing of 140 mm and M6x15 holes.

Documents and quotation

Seven Star LLC does not list a price for the BL320002; each quotation is prepared after you give us the order code, supply voltage and frequency, vacuum or pressure duty and accessories. As an independent supplier in Muscat we confirm availability before replying. Please confirm the three-phase or single-phase order code against your supply before ordering. A copy of the SEKO BL 320 002 technical data sheet rev 3.0 sits on this page.
