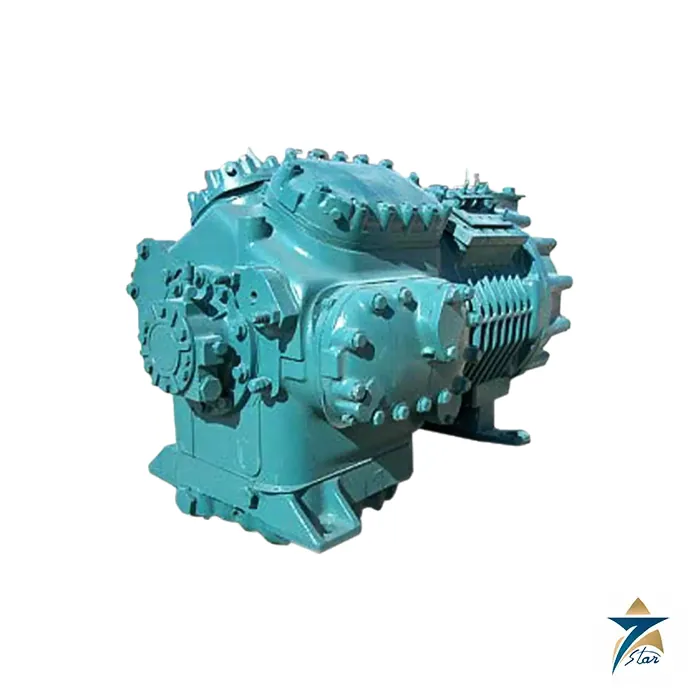

DWM Copeland D8SJ1-600X Semi-Hermetic Reciprocating Compressor
Overview
The DWM Copeland D8SJ1-600X is an eight-cylinder, suction gas-cooled semi-hermetic reciprocating compressor from Copeland’s long-established DWM (Discus/D-frame) S-Series platform, built for medium and low-temperature commercial and industrial refrigeration duty. Widely applied on cold storage rooms, blast freezers, and process chillers, the DWM Copeland D8SJ1-600X is valued by refrigeration contractors for its rugged cast construction, field-proven reliability, and compatibility with common HCFC and HFC refrigerants including R22, R407C, and R404A.
Working closely with plant engineers in the region, Seven Star LLC proudly supplies the DWM Copeland D8SJ1-600X to cold-chain operators, food processing facilities, and HVACR contractors across Oman and the wider GCC. Every compressor supplied through Seven Star LLC comes with manufacturer documentation and local technical support – essential when a compressor failure threatens product loss in a live cold room.
Operating Principle
The DWM Copeland D8SJ1-600X uses a reciprocating piston mechanism across eight cylinders arranged in a V-configuration around a single crankshaft, drawing low-pressure refrigerant vapor into the cylinder bank on the suction stroke and compressing it to condenser pressure on the discharge stroke. The semi-hermetic motor is cooled directly by the returning suction gas, which passes over the motor windings before entering the cylinders – a design that keeps motor temperatures stable under sustained load while contributing to overall system efficiency.
Capacity control is achieved through cylinder step-unloading, with the D8SJ1-600X capable of operating at 100%, 75%, or 50% of full refrigeration capacity by progressively unloading pairs of cylinders via solenoid-actuated unloader valves. The practical consequence for a refrigeration engineer is closer matching of compressor output to actual cooling load, reducing short-cycling, lowering energy consumption at part load, and extending compressor service life compared with fixed-capacity operation.
Engineering Design of the DWM Copeland D8SJ1-600X
The DWM Copeland D8SJ1-600X is built on a heavy cast-iron crankcase and cylinder block designed for continuous duty in industrial refrigeration plants, with a suction connection of 2-1/8 inch and a discharge connection of 1-3/8 inch sized for the compressor’s displacement range. The semi-hermetic construction allows the top cover and cylinder heads to be removed for valve plate service and internal inspection without breaking the crankcase seal, simplifying scheduled maintenance compared with fully hermetic designs.
Capacity-control solenoid coils are available in multiple voltage options, including 24V DC and 24V, 120V, and 208–240V AC configurations at 50/60Hz, with an IP55-rated enclosure suited to the humid, dust-laden conditions common in GCC food processing and cold-storage facilities. A crankcase heater connection and oil sight glass support safe start-up after extended shutdown periods, a common requirement for seasonal cold-storage operations in the region.
Key Features
The DWM Copeland D8SJ1-600X delivers dependable performance across demanding commercial and industrial refrigeration applications:
- Eight-cylinder, suction gas-cooled semi-hermetic design suited to continuous medium- and low-temperature refrigeration duty.
- Compatible with R22, R407C, and R404A refrigerants for flexibility across existing and retrofit refrigeration systems.
- 2/4 cylinder step-unloading capacity control provides 100%, 75%, and 50% capacity stages to match variable cooling loads.
- Solenoid-actuated unloader valves available in 24V DC, 24V AC, 120V AC, and 208–240V AC configurations, IP55 rated.
- Heavy cast-iron crankcase and cylinder block engineered for long service life under continuous industrial load.
- Removable cylinder heads and valve plates simplify in-field maintenance without full compressor removal.
- 2-1/8 inch suction and 1-3/8 inch discharge connections sized for the D8SJ1-600X displacement range.
- Crankcase heater provision and oil sight glass support safe restart after extended shutdown.
Industrial Applications
The DWM Copeland D8SJ1-600X is deployed across cold storage warehouses, blast freezing tunnels, and industrial process chillers wherever a reliable, serviceable reciprocating compressor is required for medium- or low-temperature duty, including fish and meat processing plants, dairy cold rooms, and beverage production facilities across Oman. In supermarket distribution centers and hospitality chain central kitchens it maintains the cold chain for perishable goods, while in pharmaceutical cold-storage facilities it supports temperature-controlled warehousing where compressor reliability is directly tied to product integrity.
With fast quotation turnaround and technical support, Seven Star LLC distributes the D8SJ1-600X to refrigeration contractors and industrial end users throughout Oman and the GCC, including cold-chain and food processing projects in the Sohar and Salalah economic zones, where dependable compressor uptime protects both product quality and operating margins.
Technical Specifications
The table below summarizes the principal specifications of the DWM Copeland D8SJ1-600X compressor as supplied by Seven Star LLC:
| Parameter | Specification |
|---|---|
| Model | DWM Copeland D8SJ1-600X |
| Compressor Type | Eight-cylinder, suction gas-cooled, semi-hermetic reciprocating |
| Refrigerants | R22, R407C, R404A |
| Capacity Control | 2/4 cylinder step-unloading – 100% / 75% / 50% stages |
| Unloader Solenoid Voltage | 24 VDC; 24V, 120V, 208–240V AC, 50/60Hz |
| Enclosure Protection | IP55 (solenoid coils) |
| Suction Connection | 2-1/8 inch |
| Discharge Connection | 1-3/8 inch |
| Construction | Cast-iron crankcase and cylinder block, removable cylinder heads |
| Series | Copeland DWM D8S / S-Series semi-hermetic platform |
Seven Star LLC also stocks the matched crankcase heaters, unloader coils, and gasket kits commonly required alongside a DWM Copeland D8SJ1-600X replacement, so a full compressor changeover can be completed in a single site visit rather than a multi-supplier procurement cycle.
Request a Quote for DWM Copeland D8SJ1-600X
Refrigeration contractors, cold-chain operators, and procurement teams across Oman and the GCC can request a formal quotation for the DWM Copeland D8SJ1-600X compressor directly from Seven Star LLC’s refrigeration division, with technical datasheets available and lead time confirmed at quotation for urgent compressor replacement orders. With engineering support in Muscat, Seven Star LLC supports every D8SJ1-600X supplied with manufacturer documentation and responsive local technical support.
Browse the full Copeland range or see more Compressor products supplied by Seven Star LLC in Oman and the GCC.
Copeland compressor models listed here
The page lists the Copeland ZR125KCE scroll compressor for commercial air conditioning and chillers, and two semi-hermetic reciprocating compressors: the D3DS5-1500 and the DWM Copeland D8SJ1-600X. An Alco 240RA series two-way, normally closed solenoid valve for refrigerant lines is listed with them.Ordering a Copeland compressor: what we need
Copy the complete model number and the serial number from the nameplate. The letters after the capacity digits and the motor code after the dash define the oil type and the electrical supply, so ZR125KCE-TFD is not the same item as another ZR125 variant. Add the refrigerant, the supply voltage, phase and frequency, and say whether the application is air conditioning or medium or low temperature refrigeration. For semi-hermetic models, mention the motor protection module and any unloaders or oil pump fitted. We quote to buyers across the GCC from this data.Browse Copeland products by category: Compressor, Cooling, Solenoid Valve.
