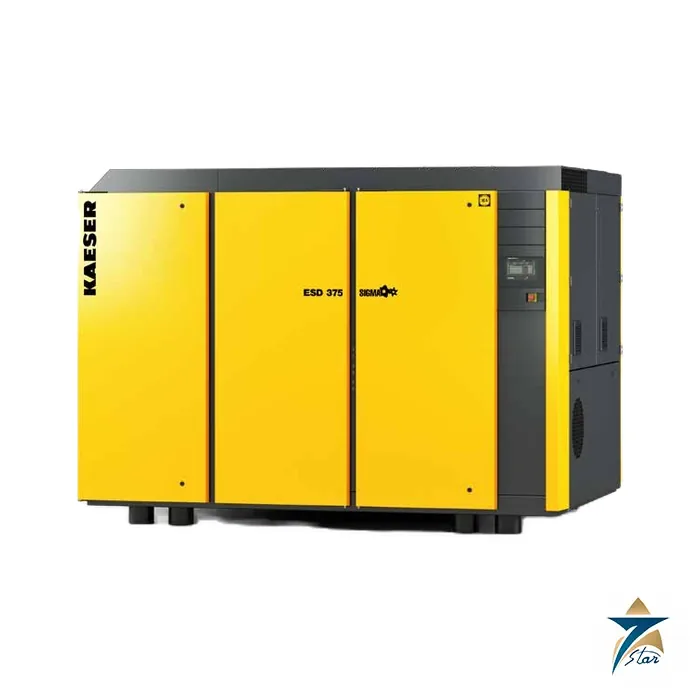

Kaeser ESD Rotary Screw Compressor Series

Name: Kaeser ESD Rotary Screw Compressor Series – Brochure & Quote
Brand: Kaeser
SKU: ESD

Large screw compressors for 200 and 250 kW central stations

The Kaeser ESD series is the high-capacity end of the fluid-cooled SIGMA PROFILE range, delivering up to 47.2 m³/min at pressures up to 15 bar. Two sizes, ESD 375 and ESD 445, are offered in fixed-speed and SFC versions. A single-stage airend with 1:1 direct drive is combined with an IE4 motor carrying three Pt100 winding sensors, two fan motors (one with variable speed) and the SIGMA CONTROL 2 L controller with a capacitive touchscreen. The separation system leaves a residual fluid content below 2 mg/m³.

Technical specifications

Parameter	Specification
Models	ESD 375 (200 kW) and ESD 445 (250 kW); SFC versions of both
ESD 375 flow rate (ISO 1217:2009 Annex C/E)	37.85 m3/min at 7.5 bar; 30.13 at 10 bar; 24.34 at 13 bar
ESD 445 flow rate	42.20 m3/min at 7.5 bar; 37.23 at 10 bar; 29.67 at 13 bar
Maximum gauge pressure	8.5, 12 or 15 bar by variant
ESD 375 SFC range	8.60 to 37.60 m3/min at 7.5 bar; 8.22 to 32.51 at 10; 6.40 to 27.48 at 13 bar
ESD 445 SFC range	10.60 to 43.2 m3/min at 7.5 bar; 8.33 to 37.89 at 10; 7.77 to 31.94 at 13 bar
Dimensions W x D x H	Fixed speed 2960 x 2030 x 2140 mm; SFC 3200 x 2030 x 2140 mm (air-cooled)
Compressed air connection	DN 100
Sound pressure level	75 to 77 dB(A), tolerance 3 dB(A)
Weight	ESD 375: 5000 kg; ESD 445: 5060 kg; SFC 5480 and 5660 kg
Cooling	Air-cooled as standard; water-cooled version with plate-type or optional shell-and-tube heat exchanger, seawater-resistant version optional
Ambient temperature	Up to +45 °C
Control modes	Dual, Quadro, Dynamic and Vario; timer, base load sequencing for two compressors; Ethernet, optional Profibus DP, Modbus TCP, Profinet, DeviceNet

Cooling, efficiency and heat recovery

The Dynamic control mode calculates run-on times from the motor winding temperature, which cuts idling. Electronic Thermal Management holds the fluid temperature as low as possible while avoiding condensation. Internal heat recovery is optional, and the water-cooled version changes the stated dimensions, sound level and weight, so request the datasheet values for that variant. A seawater-resistant cooler option is relevant for coastal plants.

ESD compared with the larger Kaeser series

Larger stations may call for the FSD or HSD series, while the DSDX series sits just below the ESD. Brochure headline ranges are listed for orientation only.

Kaeser series	Flow rate, m3/min	Pressure, bar
DSDX	up to 34.25	up to 15
ESD	up to 47.2	up to 15
FSD	up to 61.4	up to 15
HSD	8 to 89	5.5 to 15

Selecting an ESD

Compare delivery at your working pressure: at 10 bar the ESD 375 gives 30.13 m³/min and the ESD 445 gives 37.23 m³/min. The SFC versions cover a wide range, from 8.22 up to 32.51 m³/min on the ESD 375 at 10 bar. Confirm the cooling medium, the pressure variant, supply voltage, available floor area and the foundation and ventilation requirements. Seven Star LLC, an independent supplier in Muscat, quotes the exact variant. The brochure is attached and smaller machines are listed under Compressors.

Kaeser compressor and blower range

The rotary screw compressors use the SIGMA PROFILE airend and the SIGMA CONTROL 2 controller, from compact units up to the large series for 515 kW, with oil-free compression models for sensitive applications. Rotary screw vacuum packages and several blower types for process air and aeration complete the machinery side of the Kaeser catalogue.

Compressed air treatment and ancillaries

Kaeser air treatment covers refrigeration and desiccant dryers, filters and activated carbon adsorbers, condensate drains and condensate treatment, plus air receivers and the SIGMA AIR MANAGER master controller. Send the free air delivery, working pressure, ambient temperature and required air quality to have the right Kaeser model confirmed before an offer is issued.
