Kaeser CSD(X) Rotary Screw Compressor Series

Name: Kaeser CSD(X) Rotary Screw Compressor Series – Brochure & Quote
Brand: Kaeser
SKU: CSD(X)

Rotary screw compressors from 45 to 110 kW for larger air demand

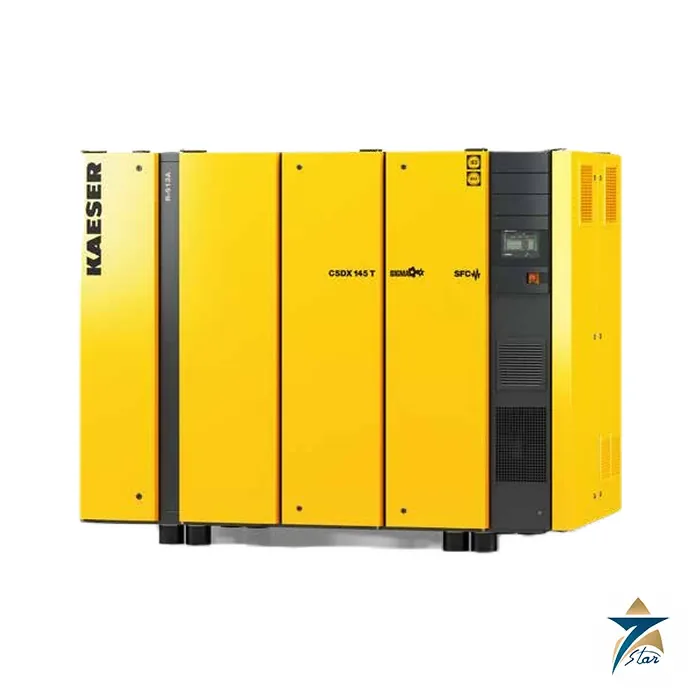

The Kaeser CSD(X) brochure covers the CSD models 90, 110 and 130 and the larger CSDX models 145, 175 and 200, for flow rates of 1.1 to 19.4 m³/min at 5.5 to 15 bar. They are fluid-cooled, single-stage screw compressors with SIGMA PROFILE rotors and direct drive, available as standard fixed-speed units, as T versions with a built-in refrigeration dryer, and as SFC versions with frequency control. Six pressure variants were introduced for the series, and the integrated Electronic Thermo Management and SIGMA CONTROL 2 follow the same concept as the smaller Kaeser series.

Technical specifications

Parameter	Specification
CSD models	CSD 90 (45 kW), CSD 110 (55 kW), CSD 130 (75 kW)
CSDX models	CSDX 145 (75 kW), CSDX 175 (90 kW), CSDX 200 (110 kW, SFC)
CSD 90 flow rate	9.61 m3/min at 6 bar; 8.85 at 7.5; 8.45 at 8.5; 7.6 at 10; 6.63 at 12 bar
CSD 110 flow rate	11.4 m3/min at 6 bar; 10.65 at 7.5; 10.17 at 8.5; 9.3 at 10; 8.2 at 12; 7.05 at 15 bar
CSD 130 flow rate	14.7 m3/min at 6 bar; 12.9 at 7.5; 12 at 8.5; 11.1 at 10; 9.95 at 12; 8.26 at 15 bar
CSDX 145 flow rate	15.85 m3/min at 6 bar; 15.4 at 7.5; 14.2 at 8.5; 12.8 at 10; 11.63 at 12 bar
CSDX 175 flow rate	19.5 m3/min at 6 bar; 18.1 at 7.5; 16.7 at 8.5; 15.5 at 10; 13.85 at 12; 12.1 at 15 bar
SFC control ranges	CSD 90 SFC 1.94 to 8.66 m3/min at 7.5 bar; CSD 110 SFC 2.29 to 10.48; CSD 130 SFC 2.90 to 12.82; CSDX 145 SFC 3.55 to 14.53; CSDX 175 SFC 3.83 to 17.11; CSDX 200 SFC 3.01 to 20.60 at 7.5 bar
Dimensions W x D x H	CSD 1790 x 1100 x 1900 mm (T 2210); CSDX 2100 x 1280 x 1950 mm (T 2520); SFC variants add 50 mm to CSD and 50 to 100 mm to CSDX
Compressed air connection	CSD G 2; CSDX G 2 1/2
Sound pressure level	Approximately 67 to 76 dB(A) by model and pressure, tolerance 3 dB(A)
Weight	CSD 1340 to 1600 kg; CSDX 1890 to 2100 kg; T versions about 200 to 280 kg more
Add-on dryers	ABT 132: 1.3 kW; ABT 200: 1.6 kW; +3 °C pressure dew point, R-513A, GWP 629

Choosing between CSD, CSDX and the SFC versions

Read delivery at your intended pressure: CSD 130 gives 11.1 m³/min at 10 bar while CSDX 175 gives 15.5 m³/min. For a plant with a base load and variable top-up, the SFC range gives a wide control band, for example 3.01 to 20.60 m³/min on the CSDX 200 SFC. Where condensate protection is needed in the same footprint, the T versions integrate the dryer behind a centrifugal separator with an ECO-DRAIN drain.

Position in the Kaeser fluid-cooled range

Above the CSD(X) the DSD and DSDX series continue to larger sizes, while the BSD covers the smaller end. Headline ranges from each brochure are shown below.

Kaeser series	Flow rate, m3/min	Pressure, bar
BSD	1.12 to 8.19	5.5 to 15
CSD(X)	1.1 to 19.4	5.5 to 15
DSD	3.5 to 26.6	5.5 to 15
DSDX	up to 34.25	up to 15

Items to confirm before ordering

State the working pressure variant, voltage, frequency, ambient temperature, whether a dryer is wanted and the controller interface. Seven Star LLC, an independent supplier in Muscat, quotes the exact variant. The CSD(X) brochure is attached; related machines are under Compressors.

Kaeser compressor and blower range

The rotary screw compressors use the SIGMA PROFILE airend and the SIGMA CONTROL 2 controller, from compact units up to the large series for 515 kW, with oil-free compression models for sensitive applications. Rotary screw vacuum packages and several blower types for process air and aeration complete the machinery side of the Kaeser catalogue.

Compressed air treatment and ancillaries

Kaeser air treatment covers refrigeration and desiccant dryers, filters and activated carbon adsorbers, condensate drains and condensate treatment, plus air receivers and the SIGMA AIR MANAGER master controller. Send the free air delivery, working pressure, ambient temperature and required air quality to have the right Kaeser model confirmed before an offer is issued.
