Kaeser ASD Rotary Screw Compressor Series, 18.5-30 kW
Description
Fluid-cooled screw compressors for 18.5 to 30 kW duty

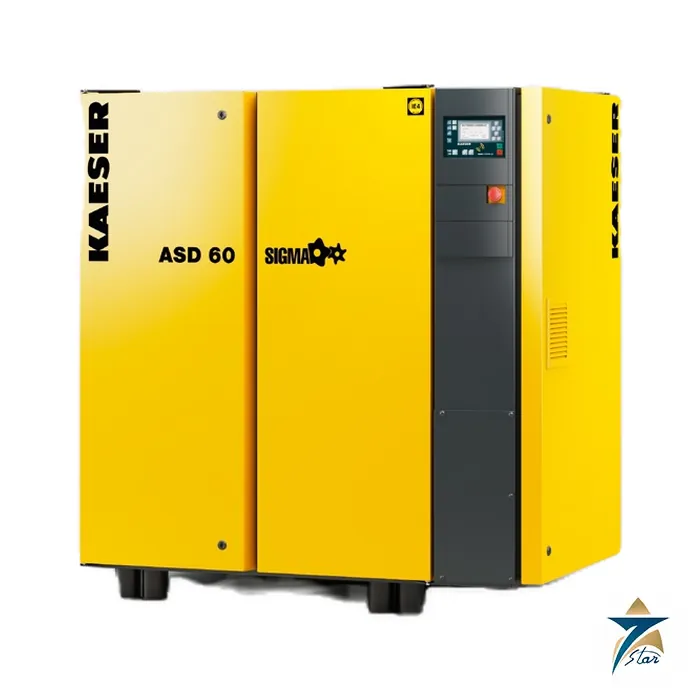

The Kaeser ASD series is the entry point of the mid-sized SIGMA PROFILE range: single-stage, fluid-injected rotary screw compressors with a direct 1:1 drive, delivering 0.89 to 6.39 m³/min at 5.5 to 15 bar. The ASD.4 generation pairs the airend with a Super Premium IE4 motor as standard, the industrial-PC-based SIGMA CONTROL 2 controller and Electronic Thermo Management (ETM), a motorised temperature valve that keeps the cooling fluid warm enough to avoid condensate in the package yet as cool as possible for efficiency. Each unit is supplied as a complete, ready-to-run package with sound insulation, vibration-damped mounts and powder-coated panels, suitable for ambient temperatures up to +45 °C.
Technical specifications
| Parameter | Specification |
|---|---|
| Models | ASD 35, ASD 40, ASD 50, ASD 60; each as standard, T (integrated refrigeration dryer), SFC (variable speed) and T SFC |
| Drive motor rated power | ASD 35: 18.5 kW; ASD 40: 22 kW; ASD 50: 25 kW; ASD 60: 30 kW |
| Flow rate, complete system (ISO 1217:2009 Annex C/E) | ASD 35: 3.16 m3/min at 7.5 bar, 2.63 at 10 bar; ASD 40: 3.92 at 7.5, 3.13 at 10, 2.58 at 13 bar; ASD 50: 4.58 at 7.5, 3.85 at 10, 3.05 at 13 bar; ASD 60: 5.53 at 7.5, 4.49 at 10, 3.71 at 13 bar |
| Maximum gauge pressure | 8.5, 12 or 15 bar depending on the working-pressure variant |
| SFC control range | ASD 35 SFC: 0.88 to 4.00 m3/min at 7.5 bar; ASD 40 SFC: 1.05 to 4.64; ASD 50 SFC: 1.07 to 5.27 at 7.5 bar; ASD 60 SFC: 1.26 to 6.17 at 7.5 bar |
| Dimensions W x D x H | Standard 1460 x 900 x 1530 mm; T 1770 x 900 x 1530 mm; SFC 1540 x 900 x 1530 mm; T SFC 1850 x 900 x 1530 mm |
| Compressed air connection | G 1 1/4 |
| Sound pressure level (ISO 2151, tolerance 3 dB(A)) | 65 to 70 dB(A) depending on model and version |
| Mass | Standard 610 to 750 kg; T 705 to 845 kg; SFC 700 to 795 kg; T SFC 795 to 890 kg |
| Add-on dryer (T versions) | Refrigeration dryer ABT 60: 0.80 kW, pressure dew point +3 °C, refrigerant R-513A, 0.80 kg charge, GWP 629, hermetically sealed circuit |
| Controller | SIGMA CONTROL 2: Ethernet; optional Profibus DP, Modbus, Profinet, DeviceNet; SD card slot, RFID reader, web server, 30 languages |
| Control modes | Dual, Quadro, Vario, Dynamic and Continuous as standard |
What the T and SFC versions change
The T versions add a refrigeration dryer inside the same package, with a centrifugal separator and an ECO-DRAIN level-controlled condensate drain upstream, so the unit delivers treated air without a separate dryer room. The brochure states that the dryer switches on only when drying is needed and that the new dryers use about 36 percent less refrigerant than their predecessors. The SFC versions use a synchronous reluctance motor with a Siemens frequency converter in a separate control cabinet; Kaeser reports working pressure kept within +/-0.1 bar and system efficiency class IES2 under EN 50598. Heat recovery with a plate-type heat exchanger is available as an option.
Where the ASD sits in the Kaeser screw range
Kaeser publishes one brochure per fluid-cooled series, each with its own flow band. Going down from the ASD are the SK, SM and SX units; going up are the BSD and CSD(X). Ranges are taken from the brochure headings.
| Kaeser series | Flow rate, m3/min | Pressure, bar |
|---|---|---|
| SK | 0.53 to 2.70 | 5.5 to 15 |
| ASD | 0.89 to 6.39 | 5.5 to 15 |
| BSD | 1.12 to 8.19 | 5.5 to 15 |
| CSD(X) | 1.1 to 19.4 | 5.5 to 15 |
Selecting an ASD and what to confirm
Choose the model from the free air delivery needed at the working pressure, not from motor size alone: the table shows how delivery falls as pressure rises. Fixed-speed units suit a steady base load, while the SFC version suits a varying demand because delivery follows the control range. Before ordering, confirm the working pressure variant, voltage and frequency, the ambient temperature and air quality at the site, whether the integrated dryer is needed, and the controller interface for your master control. Seven Star LLC, an independent supplier in Muscat, quotes the exact ASD variant. The brochure used here is attached, and the wider range sits in Compressors; for a comparison with another VSD screw series see the Atlas Copco GA VSD+ page.
Datasheets & Documents
- Brochure Kaeser ASD series brochure (P-651/2ED) Download
Reviews (0)
About brand
Kaeser Kompressoren is a German manufacturer of compressors, blowers and compressed air systems. Carl Kaeser Sr. established the company as a machine workshop in Coburg, Germany, on 27 June 1919, and the first reciprocating compressor followed in 1948. Today the range covers rotary screw and reciprocating compressors, rotary screw, turbo and rotary lobe blowers, compressor controllers, air treatment and the MOBILAIR portable compressors.
Kaeser compressor and blower range
The rotary screw compressors use the SIGMA PROFILE airend and the SIGMA CONTROL 2 controller, from compact units up to the large series for 515 kW, with oil-free compression models for sensitive applications. Rotary screw vacuum packages and several blower types for process air and aeration complete the machinery side of the Kaeser catalogue.
Compressed air treatment and ancillaries
Kaeser air treatment covers refrigeration and desiccant dryers, filters and activated carbon adsorbers, condensate drains and condensate treatment, plus air receivers and the SIGMA AIR MANAGER master controller. Send the free air delivery, working pressure, ambient temperature and required air quality to have the right Kaeser model confirmed before an offer is issued.
