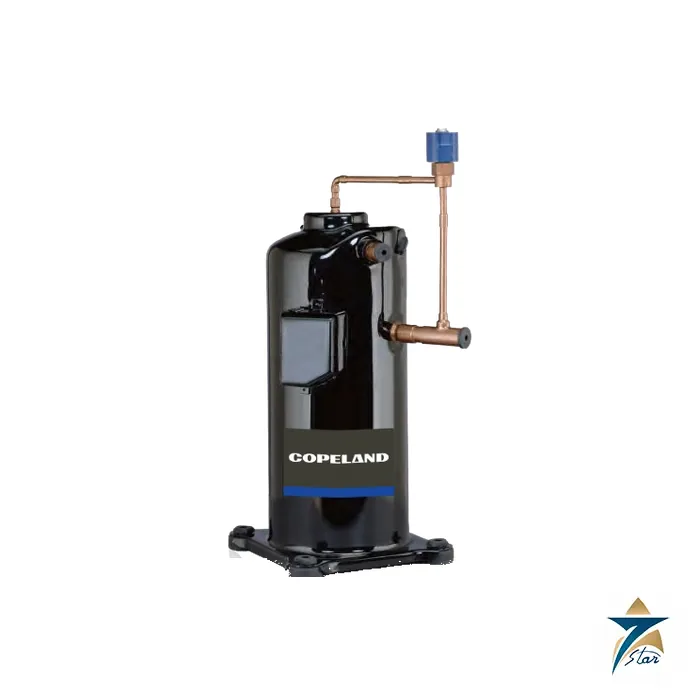

Copeland ZPD Digital Scroll Compressor (R410A)

Overview

The Copeland ZPD range is the R410A member of Copeland’s digital scroll family, a group of hermetic scroll compressors that provide stepless capacity modulation from 10% to 100% of nominal capacity without a variable speed drive. Nine models from the 5 hp ZPD61KCE to the 15 hp ZPD182KCE deliver 13.2 kW to 39.0 kW of cooling at EN12900 conditions, and tandem configurations extend the range further. Because the Copeland ZPD follows the load continuously instead of switching on and off, it holds supply air or chilled water temperature closely, improves comfort and saves energy in systems whose load and operating conditions vary over a wide range.

Seven Star LLC supplies Copeland ZPD digital scroll compressors to HVAC equipment manufacturers, refrigeration contractors and facility maintenance teams in Oman and across the GCC, with engineering support in Muscat. We help customers confirm the model, motor code, controller and solenoid coil needed for new equipment or for replacing a failed compressor in an existing unit.

Operating Principle

A scroll compressor compresses refrigerant between a fixed scroll and an orbiting scroll that trap pockets of gas and move them towards the centre, reducing their volume. The Copeland ZPD adds a mechanical unloading feature: a small external solenoid valve, visible on the shell, controls a chamber above the fixed scroll. When the valve is de-energised the scrolls are held together and the compressor pumps at full capacity; when it is energised the fixed scroll lifts slightly, the scrolls separate axially and the compressor runs unloaded while the motor keeps turning. By repeating loaded and unloaded periods within a fixed cycle time, the system controller sets an average capacity anywhere between 10% and 100%.

Copeland highlights that this approach involves no complex electronics, so there are no EMI or EMC problems, and it is described as a quasi-drop-in solution for fast time to market with easy installation and maintenance. Because the motor speed does not change, the modulation has no impact on the mechanical balance of the system: no new vibration or resonance frequencies appear, and frames and piping do not need to be redesigned.

Engineering Design of the Copeland ZPD

The Copeland ZPD uses the vertical hermetic shell, compliant scroll set and three-phase motor of the Copeland Scroll family, with brazed stub connections for suction and discharge. Suction stubs range from 7/8 inch on ZPD61KCE to ZPD91KCE, through 1 1/8 inch on ZPD104KCE and ZPD122KCE, to 1 3/8 inch on ZPD137KCE to ZPD182KCE. Oil charge is between 1.8 and 3.3 litres, and net weights run from about 40 kg to 67 kg depending on frame size. The standard motor version is TFD for 380–420 V, three phase, 50 Hz.

Copeland specifies maximum allowable pressures of 28 bar(g) low side and 43 bar(g) high side for the ZPD42 to ZPD91 models, and 29.5 bar(g) low side and 45 bar(g) high side for the ZPD103 to ZPD182 models. The brochure publishes separate R410A operating envelopes for the ZPD34–91 and ZPD104–182 frames at 10 K superheat, and the selected operating point should be checked against them. Sound pressure levels at 1 m are 63 to 69 dB(A) in free field conditions, comparable with fixed-speed scroll compressors of the same size.

Key Features

The Copeland ZPD digital scroll range offers the following advantages:

• Stepless capacity modulation from 10% to 100% gives immediate load adjustment and close temperature control.
• No inverter or complex electronics are required, avoiding EMI/EMC problems and simplifying installation.
• Constant motor speed means no new vibration or resonance, so frames and piping need no redesign.
• Nine R410A models from 5 to 15 hp deliver 13.2 to 39.0 kW, with tandem options for larger systems.
• EER values of 2.9 to 3.1 at EN12900 conditions match the efficiency of fixed-speed scroll compressors.
• The compliant scroll design tolerates liquid and debris better than reciprocating compressors.
• Maximum allowable pressures up to 45 bar(g) high side suit R410A air-cooled systems in hot climates.
• Companion ZRD models cover R407C, R134a and R513A for customers with other refrigerant choices.

Industrial Applications

Copeland identifies digital scroll compressors as a preferred choice for process cooling, refrigeration racks, refrigeration units, VRF systems, rooftop units and air handling unit systems. In practice the Copeland ZPD is used in close-control air conditioners for telecom shelters and data rooms, in precision cooling for control rooms and laboratories, and in chillers serving process loads where water temperature must stay within a narrow band. In oil and gas facilities, power stations and water treatment plants, these units cool control buildings, analyser shelters and electrical rooms where stable temperature protects sensitive electronics.

In the hot climate of Oman, where the Copeland ZPD is often specified, cooling loads swing widely between day and night and between summer and winter, so continuous modulation reduces compressor cycling and helps avoid temperature overshoot. Seven Star LLC supplies the Copeland ZPD range with engineering support in Muscat for HVAC contractors, OEMs and maintenance teams working on commercial buildings, hospitals, hotels and industrial sites in the Sohar and Salalah zones and across the GCC.

Technical Specifications

The Copeland ZPD data below is taken from the manufacturer brochure at EN12900 conditions: evaporating 5°C, condensing 50°C, superheat 10 K, subcooling 0 K, 380–420 V/3/50 Hz.

How to Order

To order a Copeland ZPD compressor, send Seven Star LLC an RFQ with the full model and motor code from the nameplate or your equipment documentation. Our refrigeration team confirms regional warehouse availability, provides the brochure attached to this page as the Copeland ZPD datasheet reference and can quote related items such as the fixed-speed Copeland ZR250KCE scroll compressor, the Alco 240RA9T9-T solenoid valve or the Alco UPT3-30U pressure transmitter. Seven Star LLC is a trusted supplier with engineering support in Muscat for customers throughout Oman and the GCC.
