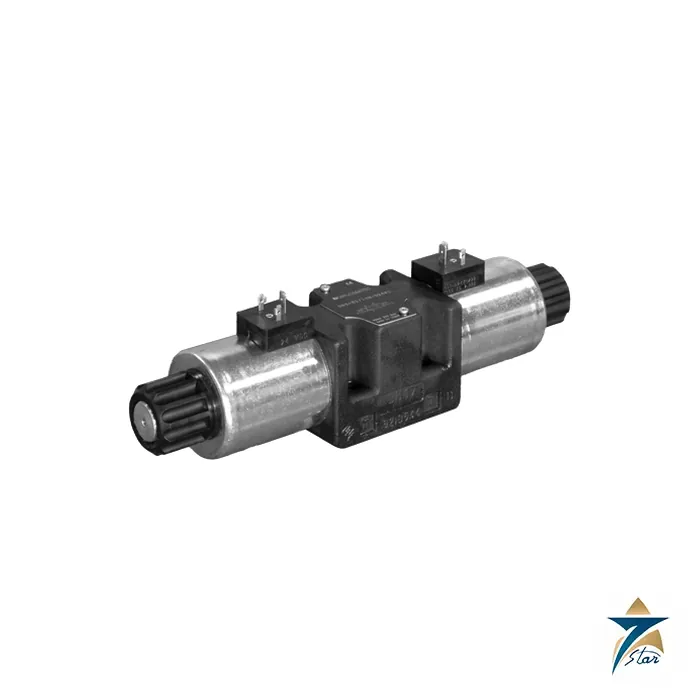

Duplomatic DS5 Solenoid Directional Control Valve ISO 4401-05

Overview

The Duplomatic DS5 is a direct-acting solenoid operated directional control valve built on the ISO 4401-05 mounting surface, the size 05 (CETOP 05) pattern that sits one step above the common size 03 valves. Duplomatic rates it for a maximum operating pressure of 320 bar on P, A and B and a maximum flow of 150 l/min on DC versions (120 l/min on AC). This extra capacity lets the Duplomatic DS5 switch larger cylinders and hydraulic motors directly from a solenoid, without the cost and complexity of a two-stage pilot-operated valve.

Seven Star LLC supplies the Duplomatic DS5 to power unit builders, equipment manufacturers and maintenance teams across Oman and the GCC, with engineering support in Muscat. Users in Muscat, Sohar, Duqm and Salalah can send us the valve identification code or the hydraulic circuit symbol, and we confirm spool, coil voltage, connector and options against the Duplomatic catalogue before supply.

Operating Principle

The Duplomatic DS5 directs flow between pressure, tank and two work ports by moving a precision spool inside the valve body. Each end of the spool is pushed by a wet armature solenoid; the armature moves immersed in oil within a tube screwed into the body, so it runs without wear and is cooled by oil from the return line. When a solenoid is released, springs centre the spool or return it to its rest position, depending on the spool type, and mechanical retention holds the RK version in its last switched position.

Available spool families for the Duplomatic DS5 are S* (two solenoids, three positions, spring centred), SA* and SB* (one solenoid, two positions, spring centred), TA and TB (one solenoid, two external positions, return spring) and RK (two solenoids, two positions, mechanical detent). Because the DS5 shifts a heavier spool than size 03 valves, its catalogue switching times are longer on DC: 100 to 150 ms when energized and 20 to 50 ms when de-energized, compared with 15 to 30 ms and 20 to 50 ms on AC, measured to ISO 6403 at 36 cSt and 50 °C. For applications where pressure shocks must be limited, Duplomatic offers fixed and adjustable soft-shifting versions on DC.

Engineering Design of the Duplomatic DS5

The Duplomatic DS5 body is cast from high-strength iron with wide internal passages for low pressure drop. The standard tank port limit is 210 bar on DC and 140 bar on AC; a DC version with a Y external subplate drain port raises the T port rating to 320 bar, which is useful when several valves share a return line carrying back pressure. The valve is mounted on a lapped surface with screws in M6x10 threaded holes at a tightening torque of 8 Nm (class 8.8). Configurations with centring or return springs can be mounted in any position, while RK detent valves must be installed with the longitudinal axis horizontal.

Solenoid power is significantly higher than on size 03. DC coils, available from 12 to 220 V, each consume about 48 W, and AC coils draw roughly 572 to 644 VA at inrush and 95 to 110 VA holding, for example 644 VA and 105 VA for the A230 coil at 230 V 50 Hz. The coils have class H insulation with class F impregnation, a 100% duty cycle and up to 15,000 operations per hour. Electrical connection is via K1 EN 175301-803 connectors (IP65) or, on 12 and 24 V DC, K7 Deutsch DT04-2P plugs rated IP65/IP67/IP69 and IP69K at the connector. A zinc-nickel finish, option /W7 for DC valves, provides salt spray resistance up to 240 hours.

Key Features

The Duplomatic DS5 offers the following features according to the Duplomatic catalogue:

• ISO 4401-05-04-0-05 (CETOP 4.2-4-05-320) mounting surface, compatible with standard size 05 subplates and manifolds.
• 320 bar maximum on P, A and B, with up to 320 bar on T when the external drain (Y) version is used.
• Flow up to 150 l/min on DC and 120 l/min on AC in a direct-acting design.
• Spring centred, spring return and detented spool types for 3-way and 4-way circuits.
• Soft-shifting and adjustable soft-shifting DC versions for smooth acceleration of loads.
• DC coils usable on AC supply through rectifier connectors, with operating limits reduced by about 15 to 20%.
• Manual override options CM (boot protected), CK (knob) and CK2 (push and twist) on DC versions.
• NBR seals for HL/HM mineral oils and FPM seals for HFDR phosphate ester fluids.

Industrial Applications

With its higher flow rating, the Duplomatic DS5 is used to drive larger double-acting cylinders on presses, shears and bending machines, hydraulic motors on conveyors and winches, and lifting and positioning systems on test rigs and material handling equipment. In Oman, typical users include steel and aluminium fabricators, cement and mining plants, port and marine equipment operators in Sohar and Duqm, and hydraulic power unit builders serving the oil and gas sector, where the Duplomatic DS5 often controls the main actuator while smaller size 03 valves handle auxiliary functions.

Seven Star LLC supplies the Duplomatic DS5 with matching subplates PMD4-AI4G (rear ports) and PMD4-AL4G (side ports), both with 1/2 inch BSP threads, as well as spare coils and seal kits. Customers building complete hydraulic or electro-hydraulic packages can also source the Rotork Skilmatic SI3 electro-hydraulic actuator, the Magnet-Schultz FHMG and FHTS on-off hydraulic solenoids and the Masoneilan 84/85/86 cylinder actuators through our team.

Technical Specifications

All Duplomatic DS5 values are taken from Duplomatic catalogue 41 310/125 ED (mineral oil at 36 cSt and 50 °C):

How to Order

Send Seven Star LLC a formal RFQ for the Duplomatic DS5 with the identification code or spool symbol, supply voltage, connector and any soft-shift or drain options, and our instrumentation division will confirm the configuration and quote supply on request. The DS5 catalogue is attached as a technical datasheet download. Seven Star LLC supplies Duplomatic directional valves and accessories to customers throughout Oman and the GCC, with engineering support from Muscat.
