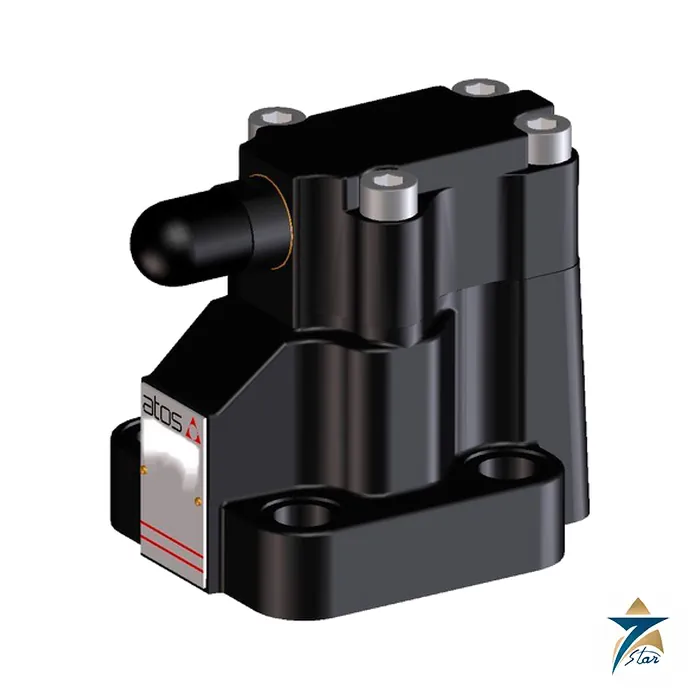

Atos AGAM Piloted Pressure Relief Valve, ISO 6264
Description
A two-stage relief valve for larger flows
The Atos AGAM is a two-stage pressure relief valve with a balanced poppet, built for subplate mounting to ISO 6264. The pilot stage sets the pressure of the main poppet through a grub screw under a plastic cap, or through an optional handwheel. Because the main stage is piloted, the AGAM holds a flat pressure-flow curve at flows where a direct relief valve would climb, which is why it is used on pump delivery lines, accumulator circuits and manifold blocks.
Mounting a small solenoid valve on top turns it into a venting or multi-pressure valve. Atos lists a DHE pilot (high-performance, cURus coils) and a DHL pilot (compact), and the configuration code selects one, two or three setting pressures, with venting at de-energized or energized solenoid.
Technical specifications
| Parameter | Specification |
|---|---|
| Valve type | Pressure relief, piloted, balanced poppet, subplate mounting |
| Sizes (ISO 6264) | AGAM-10, AGAM-20, AGAM-32 |
| Maximum flow | 200, 400 and 600 l/min respectively |
| Pressure setting ranges | 4 to 50, 6 to 100, 7 to 210 or 8 to 350 bar (maximum-setting code 50, 100, 210, 350) |
| Maximum pressure | Ports P and X 350 bar; ports T and Y 210 bar without pilot solenoid valve |
| Configurations | 10 and 11 venting (de-energized or energized solenoid); 20, 21 two settings with venting; 22 two settings; 32 three settings |
| Construction options | E external pilot; V handwheel; WP manual override; Y external drain (G1/4 pipe connection) |
| Pilot solenoid valve | E: DHE, AC or DC, cURus coils; L: DHL, AC or DC, compact |
| Solenoid data | Insulation H (DC) or F (AC); IP65 with correct connectors; duty 100 percent; tolerance +/-10 percent |
| Voltage codes | DC: 12, 14, 24, 28, 110, 220 (DHE adds 48 and 125); AC: 110/50/60, 230/50/60, 230/60 (DHE adds 24, 48, 115/60) |
| Mounting | Any position; subplate roughness Ra 0.8 or better, recommended Ra 0.4, flatness 0.01/100 |
| Ambient temperature | Standard -30 to +70 degC; /PE -20 to +70 degC; /BT -40 to +70 degC (BT not available with the DHL pilot) |
| Reliability | MTTFd 75 years to EN ISO 13849 |
| Finish and compliance | Zinc coating with black passivation, salt spray over 200 h; CE Low Voltage 2014/35/EU, RoHS 2, REACH |
Choosing size and pilot options
Select the size from the maximum flow you must pass at relief, not from the pump nominal flow alone: size 10 for up to 200 l/min, size 20 for up to 400 l/min and size 32 for up to 600 l/min. The order code, for example AGAM-20/32/210/100/100/E-EX24DC, reads as valve type, size, configuration, three pressure ranges, options, pilot valve, connector and voltage.
Venting is the usual reason for the solenoid. A configuration 10 valve vents the pump to tank when the solenoid is de-energized, which unloads the pump at start-up or standby; configuration 11 does it with the solenoid energized. Two and three pressure versions let one valve act as a low-pressure and a high-pressure limiter for different machine phases.
What to confirm before ordering
Check the pilot supply, the drain connection (internal or external) and whether the system needs the lower 210 bar limit on T and Y. Confirm the coil voltage and the seal material for the fluid. A smaller, direct-acting alternative is the Atos ARE listed in the hydraulic valves and components category, and a similar pilot-operated type from another maker is the Bosch Rexroth DBW.
Documents and quotation
The attached Atos technical table C066 (revision 24.0, July 2026) holds the model code, hydraulic symbols, coil data and the dimension pages for all three sizes and pilot versions. Send the full code, the pressure settings and the coil voltage for a quotation.
