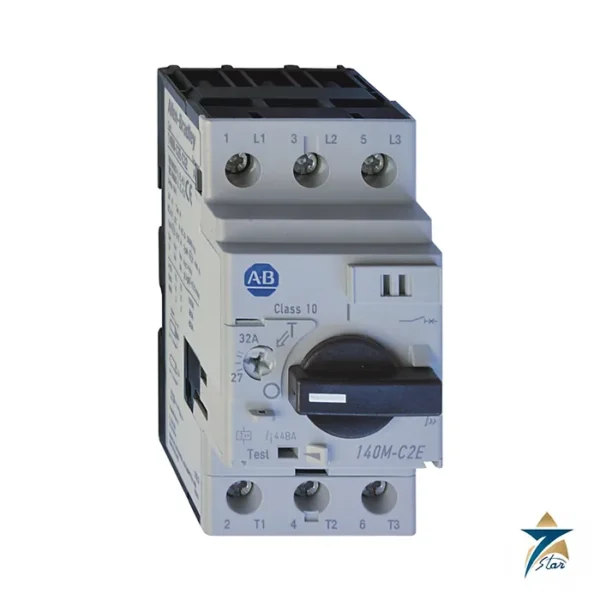

Allen-Bradley 140M-C2E-C16 16 A Motor Protection Breaker
Description
140M C-frame breaker for 10 to 16 A motors
With a setting range of 10 to 16 A, the 140M-C2E-C16 protects motors of roughly 4 to 7.5 kW on 400V. It is a 140M motor protection breaker in the C frame; the magnetic release is fixed at 208 A, which is 13 times the top of the range. Reading the catalog number: 140M is the motor protection circuit breaker bulletin, C is the frame, 2 the breaking class (normal break (2)), E the trip type (adjustable thermal, fixed magnetic at 13 times In) and C16 the current range code.
Power ratings in the 140M-TD002G table are 4 / 7.5 / 10 / 13 kW (AC-3, 230 / 400 / 500 / 690V) and 5 / 5 / 10 / 15 hp for the corresponding horsepower columns.
Technical specifications
| Parameter | Specification |
|---|---|
| Part number | 140M-C2E-C16 |
| Series | Allen-Bradley 140M motor protection circuit breaker, 3 poles |
| Thermal setting | 10 to 16 A |
| Short-circuit trip | 208 A (13 x In) |
| Motor kW (230 / 400 / 500 / 690V) | 4 / 7.5 / 10 / 13 kW |
| hp rating (columns per datasheet) | 5 / 5 / 10 / 15 hp |
| Frame / breaking class | C / normal break (2) |
| Icu / Ics (product page) | 65 kA at 400V / 6 kA at 500V |
| Phase-failure protection | Differential release (phase-loss sensitive) |
| Document | 140M-TD002G datasheet |
Protection data for a 7.5 kW class motor
A 16 A upper setting corresponds to a 7.5 kW motor at 400/415V. The product page lists a breaking capacity Icu of 65 kA at 400V and Ics of 6 kA at 500V. Magnetic trip of 208 A is 13 times 16 A (derived), and the device dissipates about 6 W at rated load according to the product page.
In a combination starter the breaker gives the disconnect and short-circuit protection, the contactor switches the motor. Because this combination is covered by Rockwell’s coordination tables, use them to confirm the allowed short-circuit current at 480V.
Selecting and applying this breaker
Set the dial to the motor nameplate full-load current. Direct-on-line starts of standard motors are usually within the 208 A magnetic trip, but high-inertia loads such as fans with heavy rotors deserve a check against the motor’s locked-rotor current.
Accessories such as auxiliary contacts, under-voltage releases and busbar systems are separate catalog numbers; the datasheet’s accessories chapter lists them.
Ordering and documents
Derived orientation figures (not Rockwell values): the top of the setting range is 16 A, the lowest setting is 10 A, so the dial covers a 1.60 to 1 span, and the fixed magnetic trip is 13.0 times the maximum setting. Always set the dial from the motor nameplate.
Quote 140M-C2E-C16 in full. Rockwell’s datasheet 140M-TD002G (January 2018) is the hosted document; the product-page values quoted above were checked on the Rockwell product page. Contactors, auxiliary contacts, busbars and enclosures are separate catalog numbers.
Seven Star LLC is an independent supplier in Muscat and quotes on request; please confirm every rating against the current Rockwell documents before ordering.
When requesting 140M-C2E-C16, tell us how the motor is started, how many starts per hour you expect, the control voltage and the short-circuit rating needed. With these facts we can compare your design with the datasheet values and mention any open points (140M motor protection circuit breaker, 10 to 16 A adjustable, 208 A magnetic trip, 3-pole).
