Allen-Bradley 140M-C2E-B25 2.5 A Motor Protection Breaker

Name: Allen-Bradley 140M-C2E-B25 Motor Breaker | Seven Star LLC
Brand: Allen-Bradley
SKU: 140M-C2E-B25

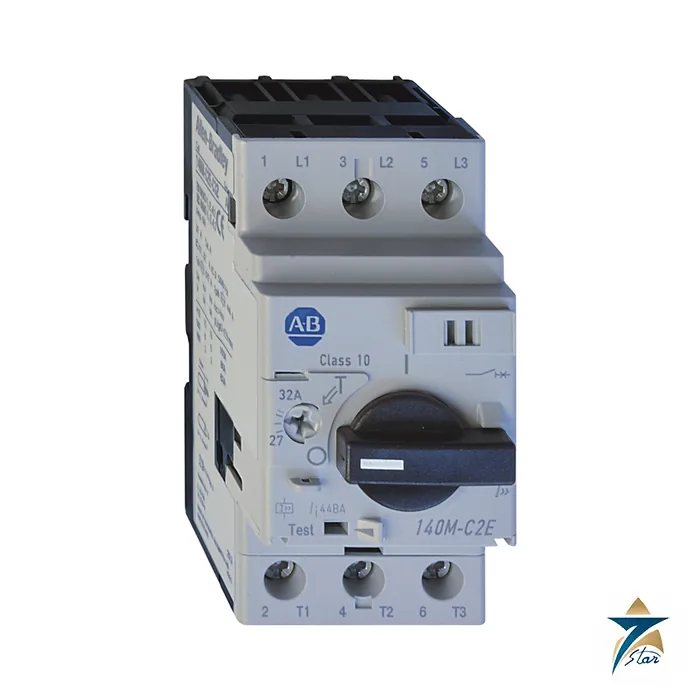

Description

1.6-2.5 A Allen-Bradley 140M breaker, C frame

The Allen-Bradley 140M-C2E-B25 is a three-pole 140M motor protection circuit breaker (MPCB) with an adjustable thermal setting of 1.6 to 2.5 A and a fixed magnetic trip of 33 A. It combines the branch disconnect, short-circuit protection and overload protection for one motor in a single DIN-rail device. Reading the catalog number: 140M is the motor protection circuit breaker bulletin, C is the frame, 2 the breaking class (normal break (2)), E the trip type (adjustable thermal, fixed magnetic at 13 times In) and B25 the current range code.

For AC-3 duty the datasheet gives 0.37 / 0.75 / 1.1 / 1.8 kW at 230 / 400 / 500 / 690V and 0.5 / 0.75 / 1.5 / 2 hp at the North American voltage columns.

Technical specifications

Parameter	Specification
Catalog number	140M-C2E-B25
Product	Allen-Bradley 140M motor protection circuit breaker, 3 poles
Current range (adjustable)	1.6 to 2.5 A
Magnetic trip	33 A (13 x In)
AC-3 power 230 / 400 / 500 / 690V	0.37 / 0.75 / 1.1 / 1.8 kW
hp rating (columns per datasheet)	0.5 / 0.75 / 1.5 / 2 hp
Frame / breaking class	C / normal break (2)
Icu / Ics (product page)	100 kA at 400V / 6 kA at 690V
Phase-failure protection	Differential release (phase-loss sensitive)
Document	140M-TD002G datasheet

Protection data for the small-motor range

At the low end of the C-frame ranges, this device covers 0.37 kW to 1.1 kW motors on 230 to 500V. The product page lists a rated operational current of 2.5 A, a breaking capacity Icu of 100 kA at 400V and a service breaking capacity Ics of 6 kA at 690V. The magnetic trip of 33 A is consistent with the 13 x In rule (2.5 A x 13 = 32.5 A, derived).

The thermal element tolerates a wide ambient range: the product page shows an operating range from -25 C, and the datasheet describes no current reduction at 60 C ambient. A phase-failure-sensitive differential release is fitted, so a lost phase trips the breaker sooner than a simple overload.

Selecting and applying the small range

Set the dial to the motor nameplate full-load current, not to the top of the range, and check that the starting current of the motor stays below the fixed magnetic trip of 33 A. For a 0.75 kW motor on 400V (about 1.8 A), setting this breaker leaves room for starting surges,.

Where the starting duty is hard or the motor is on a drive, check Rockwell’s application notes for using 140M breakers with variable-frequency drives. The hosted datasheet covers coordination with 100-C contactors and accessories.

Ordering and documents

Derived orientation figures (not Rockwell values): the top of the setting range is 2.5 A, the lowest setting is 1.6 A, so the dial covers a 1.56 to 1 span, and the fixed magnetic trip is 13.2 times the maximum setting. Always set the dial from the motor nameplate.

Quote 140M-C2E-B25 in full. Rockwell’s datasheet 140M-TD002G (January 2018) is the hosted document; the product-page values quoted above were checked on the Rockwell product page. Contactors, auxiliary contacts, busbars and enclosures are separate catalog numbers.

Seven Star LLC is an independent supplier in Muscat and quotes on request; please confirm every rating against the current Rockwell documents before ordering.

Browse more items in Circuit Breakers on our site, or send us the part number for a quotation.

Datasheets & Documents

Datasheet Motor Protection Circuit Breaker and Motor Circuit Protector Specifications, Bulletin 140M (140M-TD002G-EN-P, January 2018) Download
