Brand: ABB

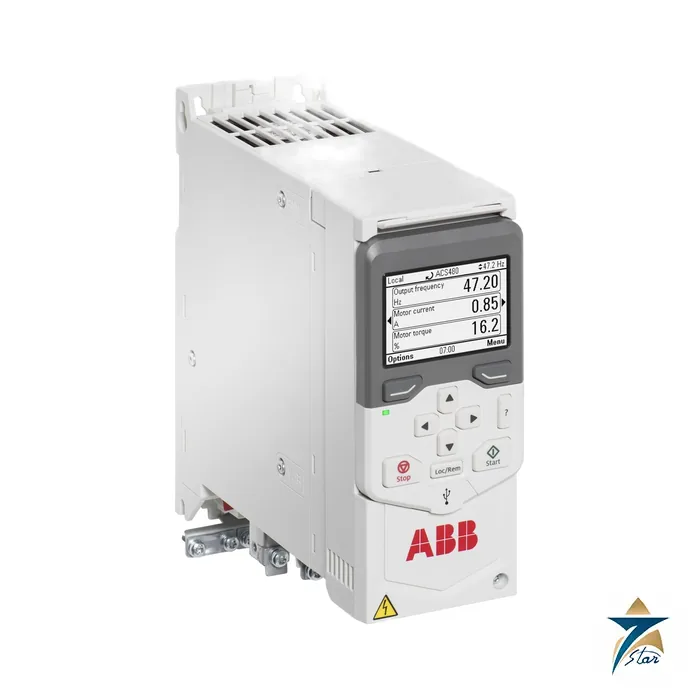

ABB ACS480-04-039A-4 General Purpose Drive 18.5 kW 38 A
Description
Where the ACS480-04-039A-4 is used
ACS480-04-039A-4 is an ABB ACS480 general purpose drive in module construction for three-phase 380 to 480 V supplies. The hardware manual lists 18.5 kW at 38 A nominal output on frame R4, a body 262 mm wide, 240 mm high and 213 mm deep that weighs 5.6 kg in IP20 form. At 18.5 kW it sits in the middle of frame R4 and is common on larger fans and pumps.
ABB delivers the module with an internal EMC filter for category C2, Safe Torque Off, coated circuit boards and support for induction, permanent magnet and ABB SynRM motors. See more sizes in AC drives, or compare with the larger family on the ABB ACS580 page.
Technical specifications
| Parameter | Specification |
|---|---|
| Type code | ACS480-04-039A-4 |
| Platform | ACS480-04 cabinet-optimised module |
| Input supply | Code 4: 380-480 V, three-phase |
| Housing frame | R4 |
| Nominal output | 18.5 kW, 38 A |
| Light-duty output | 18.5 kW, 36 A |
| Heavy-duty output | 15 kW, 32 A |
| Imax | 57.6 A |
| I1n without / with choke | 49 A / 38 A |
| gG fuse | 80 A, OFAF000H80 |
| gR fuse | 125 A, 170M2701 |
| Circuit breaker | S 803S-B 80 |
| Thermal data | 497 W / 150 m3/h / 69 dB(A) |
| Factor for 8 kHz and 12 kHz | 0.65 / 0.49 |
| Size in IP20 | 240 x 262 x 213 mm |
| IP20 net weight | 5.6 kg |
Sizing the ACS480-04-039A-4 for the motor
Three duty classes are listed. Nominal: 38 A, 18.5 kW. Light duty: 36 A, 18.5 kW. Heavy duty: 32 A, 15 kW. Peak current is 57.6 A. On the supply side the drive draws 49 A without an input choke or 38 A with one, which matters for cable and fuse selection.
Fuse choices are 80 A gG type OFAF000H80 (minimum short-circuit current 640 A) and 125 A gR type 170M2701; ABB also lists S 803S-B 80 as a circuit breaker. Typical power loss is 497 W, air flow 150 m3/h and noise 69 dB(A).
Hot or high-altitude sites need derating: 0.65 at 8 kHz, 0.49 at 12 kHz, 2% per degree from +50 to +60 degrees C and 1% per 100 m above 1000 m. At the default 4 kHz no switching derating is required.
The manual’s dimension table lists 262 mm width, 240 mm height and 213 mm depth for frame R4, at 5.6 kg. A UL Type 1 kit raises height to 391 mm and weight to 6.9 kg. The motor cable may be up to 100 m for performance; EMC compliance limits are 30 m for category C3 and 10 m for C2 with the internal filter, or 30 m for C1, C2 and C3 with the optional external filter.
Type code and option codes
ACS480-04-039A-4 is composed of ACS480 (series), 04 (module), 039A (size) and 4 (input voltage). Typical additions are K451 for FDNA-01 DeviceNet, K454 for FPBA-01 PROFIBUS DP, K457 for FCAN-01 CANopen and K458 for FSCA-01 RS-485; ABB also offers printed manuals in several languages through R700-series codes.
Further specifications in ABB’s manual include a fundamental power factor of 0.98 at nominal load, induction, permanent magnet and SynRM motor control, a short-circuit proof motor output and natural convection on R0 and a cooling fan on R1 to R4.
Source document and RFQ
Request the ACS480-04-039A-4 from Seven Star LLC with your motor data, voltage and communication requirements. Technical values here are taken from ABB document 3AXD50000047392 (ACS480 hardware manual, revision F).
Confirm before ordering: type code and plus options, motor rated current, EMC and enclosure needs, and temperature and altitude at site.
Datasheets & Documents
- acs480hw Manual Download
Reviews (0)
About brand
ABB is the Swiss-Swedish engineering group for electrification and automation: low voltage drives, motors, circuit breakers and motor control, process instruments and analysers, control systems and robots. It was formed on 5 January 1988 by the merger of two older companies. ASEA was founded in Västerås, Sweden, in 1883 by Ludvig Fredholm to make electric lighting and generators. BBC Brown Boveri was founded in Baden near Zurich in 1891 by Charles E. L. Brown and Walter Boveri. ABB Ltd is incorporated in Switzerland, headquartered in Zurich and listed on the SIX Swiss Exchange and Nasdaq Stockholm.
ABB company profile
| Formed | 5 January 1988, by the merger of ASEA (Sweden) and BBC Brown Boveri (Switzerland), each holding 50% |
|---|---|
| ASEA | Founded 1883 in Västerås, Sweden, by Ludvig Fredholm; first products electric lighting and generators |
| Brown, Boveri & Cie | Founded 1891 in Baden, Switzerland, by Charles E. L. Brown and Walter Boveri |
| Headquarters | Zurich, Switzerland; ABB Ltd became the group holding company in 1999 |
| Ownership | Public company listed on SIX Swiss Exchange and Nasdaq Stockholm |
| Brands in the group | Baldor (US motors, acquired 2011), B&R (machine automation, acquired 2017), K-TEK level instruments, Endura and Navigator analysers, SACE breakers |
| Product families | Low and medium voltage drives (ACS series), motors, SACE Tmax and Emax breakers, contactors and soft starters, flow, pressure, temperature and level instruments, liquid and gas analysers, Contrac actuators, AC500 PLCs, Ability System 800xA and S800 I/O, protection relays, robots |
Milestones
- 1883: ASEA is founded in Västerås, Sweden.
- 1891: Brown, Boveri & Cie is founded in Baden, Switzerland.
- 1987–1988: The merger is announced on 10 August 1987; ABB Asea Brown Boveri starts operating on 5 January 1988.
- 1999: ABB Ltd, incorporated in Switzerland, becomes the single holding company of the group.
- 2011 and 2017: Baldor Electric and B&R join ABB.
- 2020: ABB sells its power grids business to Hitachi, focusing on electrification, motion, process and machine automation.
Choosing an ABB drive
ABB's ACS drive codes are easy to read once you know the pattern. In ACS580-01-046A-4, "ACS580" is the drive family, "01" means a wall-mounted single drive, "046A" is the rated output current (about 46 A) and "-4" means a 380–480 V supply. The family is chosen by application: ACS355 for compact machinery, ACS310 for simple pumps and fans, ACS580 as the general-purpose drive, ACQ580 for water and wastewater with pump functions such as pipe fill and dry-run protection, and ACS880 for heavy industrial duty with direct torque control. Size the drive on the motor's full-load current, not only its kW rating, and allow derating for the high ambient temperatures common in Gulf electrical rooms.
Where ABB products are used
In Oman and the GCC, ABB drives and motors run pumps, fans and compressors in water and wastewater plants, district cooling, oil and gas and industry. ABB flowmeters, level instruments and analysers are used in water utilities, power and desalination plants and refineries, and SACE breakers protect switchboards in buildings and plants.
ABB products we list
| Family | Examples |
|---|---|
| AC drives | ACS580, ACS580-01-046A-4, ACQ580, ACS355, ACS310, ACS880-01, FEN-31 encoder module |
| Breakers, motor control and protection | SACE Tmax XT, XT3N 250, SACE Emax 2, AF09 contactor, PSR soft starter, REM615 relay |
| Flow measurement | ProcessMaster FEP300, AquaMaster4, CoriolisMaster FCB430, VortexMaster FSV430, SwirlMaster FSS430, OriMaster FPD500 |
| Pressure, temperature and level | 266DRH, 267CS multivariable, TTH300, K-TEK AT100, LMT200, MT5000 GWR, KM26 gauge |
| Analysers | Endura AZ20, AK100 hydrogen purity, Navigator AW641 silica, AW402 chlorine, AWT210 |
| Control systems and actuators | AC500, AC500-S, S800 AI810, AC 800F SA 811F, Contrac RSD50, Contrac RHD4000 |
Ordering ABB products: what we need
Send the full type code from the nameplate (for example ACS580-01-046A-4 or 266DSH...) and, for spare parts, the ABB ID number (such as 3BSE008508R1 or 1SBL176001R3010). For drives, add the motor power and current and any option codes (+...). For instruments, send the complete order code, which sets range, materials and approvals. Baldor motors are listed on their own brand page.
Facts checked against ABB company filings and published histories of ASEA and Brown, Boveri & Cie, October 2026.
Related products
Frequently Asked Questions
What are the ratings of the ACS480-04-039A-4?
ABB lists 38 A nominal for 18.5 kW, 36 A light duty for 18.5 kW and 32 A heavy duty for 15 kW, with a maximum current of 57.6 A.
Which fuse does the manual give for the ACS480-04-039A-4?
The manual lists 80 A gG fuses of type OFAF000H80, 125 A gR fuses of type 170M2701, or the circuit breaker S 803S-B 80.
How large and heavy is the ACS480-04-039A-4?
Frame R4 measures 240 mm high, 262 mm wide and 213 mm deep in IP20 and weighs 5.6 kg; with the UL Type 1 kit it weighs 6.9 kg.
Does the ACS480-04-039A-4 need derating at higher switching frequency?
Yes. ABB gives a derating factor of 0.65 at 8 kHz and 0.49 at 12 kHz; no derating is needed at 4 kHz.
What is included in the standard ACS480-04-039A-4 unit?
The standard unit has the ACS-AP-S assistant panel, the RIIO-01 I/O and EIA-485 module, an EMC category C2 filter, Safe Torque Off and a brake chopper in IP20 module form.
