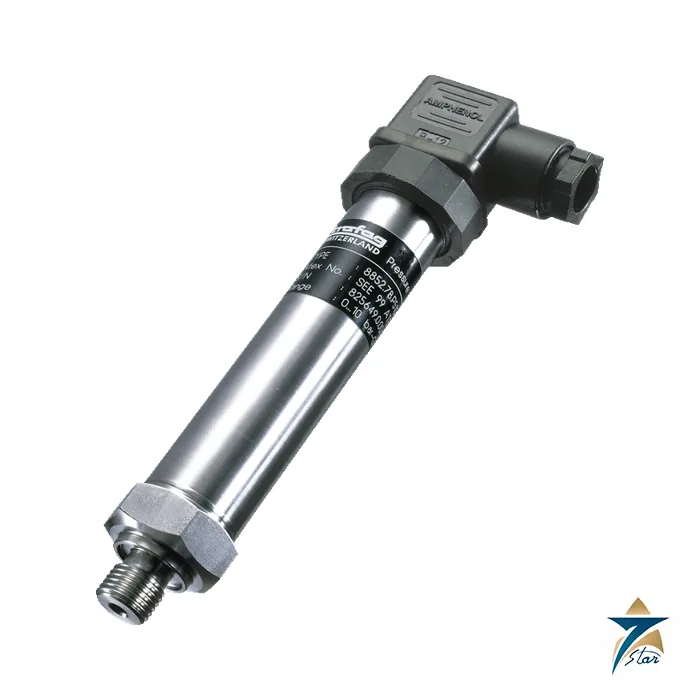

Trafag EXNA 8852/8853 Ex Pressure Transmitter
Description
Intrinsically safe pressure transmitter for Zone 0 gas and Zone 20 dust
The Trafag EXNA 8852/8853 is an intrinsically safe piezoresistive pressure transmitter with a 4 to 20 mA output. The 8852 measures relative pressure and the 8853 absolute pressure. Trafag certifies the family to ATEX under certificate SEV 11 ATEX 0145 X for gas Zones 0, 1 and 2, dust Zones 20, 21 and 22 and underground mining, and it also carries a DNV-GL marine approval.
The transmitter covers ranges from 100 mbar to 1000 bar and is built in 316L stainless steel, with frontal or flush diaphragm versions for viscous or contaminated media. It is a typical choice for pressure monitoring on hazardous process lines, pump skids and marine systems where an Ex ia loop is already specified.
Technical specifications of the EXNA 8852/8853
| Parameter | Specification |
|---|---|
| Manufacturer | Trafag AG, Switzerland |
| Product codes | 8852 (relative pressure), 8853 (absolute pressure) |
| Measuring principle | Piezoresistive |
| Measuring range | 0 … 0.1 bar to 0 … 1000 bar |
| Output signal | 4 … 20 mA, supply 10 … 30 VDC |
| Load | RL not more than (US – 9 V) / 20 mA |
| Type of protection | II 1G Ex ia IIC T3 … T6 Ga; II 1D Ex ia IIIC T125 °C Da; I M1 Ex ia I Ma |
| Certificate | Ex SEV 11 ATEX 0145 X; DNV-GL |
| Media temperature | T3: -25 to +150 °C; T4: -25 to +100 °C; T6: -25 to +55 °C |
| Ambient temperature | T3/T4: -25 to +85 °C; T6: -25 to +55 °C |
| Accuracy NLH | Type 05: 0.5 % FS; type 02: 0.25 % FS; type 01: 0.1 % FS (range dependent) |
| Rise time | Typically 1 ms (10 to 90 % of nominal pressure) |
| Protection | Minimum IP65 |
| Vibration / shock | 6 g (25 to 2000 Hz) / 50 g, 1 ms |
| Wetted parts and housing | 1.4435 (AISI 316L); titanium option |
| Seal | FKM 70 Sh |
| Weight | About 220 g |
| Mounting torque | 25 Nm |
Ordering and configuration options
Trafag builds the EXNA to order from a type code. The pressure range sets the overpressure and burst ratings, and the datasheet lists ranges from 0 to 0.1 bar up to 0 to 1000 bar. For example, the 0 to 10 bar range has an overpressure rating of 30 bar, and the 0 to 100 bar range 300 bar.
Process connections include G1/4 female, G1/4 male, G1/2 male, manometer-style G1/4 and G1/2 male threads, and G1/2 male with frontal or flush membrane. Electrical connections include DIN 43650-A, M12x1, Binder 723 and MIL-C 26482 plugs, and PUR or FEP cable. Options include lightning protection to IEC 61000-4-5 at 10 kA, special oil filling, temperature class T3, T4 or T6 selection and titanium construction.
Selecting and installing in hazardous areas
Choose the temperature class from the process and ambient temperatures together, because the allowed media temperature falls from 150 degrees C at T3 to 55 degrees C at T6. Confirm that the associated barrier or isolator is certified for the transmitter entity parameters, and keep the loop calculation on file.
Use the frontal or flush membrane version for viscous media or media with solids, and fit damping elements where pressure peaks are expected. Apply the mounting torque of 25 Nm and follow the Trafag mounting and safety instructions when installing.
Documents and quotation
The attached document is the Trafag EXNA 8852/8853 Ex pressure transmitter datasheet (H72227l, 10/2024). Certificates, the declaration of conformity and the mounting and safety instructions are available from Trafag.
For a quotation, send the complete type code or the pressure range, connection, plug, temperature class and accuracy class. Related instruments are listed in Pressure Instrumentation.
