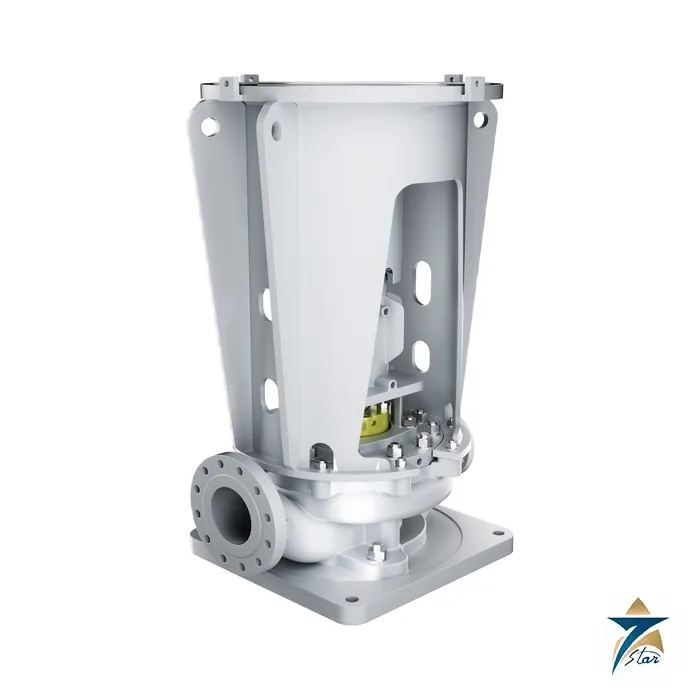

Sulzer OHV API 610 Vertical Inline Process Pump
Description
An API 610 vertical inline process pump for refinery and offshore services
The Sulzer OHV is a heavy-duty single-stage, radially split inline process pump built to API 610 / ISO 13709 for refineries, petrochemical plants, gas processing, bitumen processing and offshore platforms or FPSOs. Sulzer lists services such as produced-water and crude oil booster, propane transfer, reflux, gas oil, seawater booster, light hydrocarbon boosting, low-pressure unit charge and pump-around. The inline layout needs minimal footprint, can float with the piping to reduce thermal distortion, and can be bolted to a module frame to lower installation cost.
Technical specifications
| Parameter | Specification |
|---|---|
| Standard | API 610 / ISO 13709 vertical inline process pump (Sulzer product page designates OH3) |
| Pump sizes | 25 to 250 mm (1 to 10 in) |
| Capacity | Up to 1,450 m3/h (6,800 USgpm) |
| Head | Up to 350 m (1,150 ft) |
| Pressure | Up to 51 bar (740 psi) |
| Temperature | -160 to +340 C (-256 to +650 F) |
| Flanges | 300 lb raised face, standard; heavy-wall pressure casing |
| Nozzle loads | Inline nozzles designed for 2 times API 610 loads |
| Shaft | Large-diameter shaft limiting deflection to below 0.03 mm in the stuffing box area |
| Seals | API 682 / ISO 21049 cartridge-type mechanical seals; API 610 seal chamber |
| Wear parts | Minimum 12 percent chrome wear rings; non-metallic (carbon, PEEK) rings offered on clean fluids |
| Lubrication | Grease or oil mist as standard; constant-level oiler option on all sizes |
| Net suction specific speed | 11,000 standard; improved suction optional on some sizes |
| API 610 material codes | S-5, S-6, S-8, C-6, A-8, D-1, D-2 |
| Bearing housing | Finned housing with fan cooling for long bearing life |
Variants in the OHV family
| Model | Description | Use |
|---|---|---|
| OHV | Enclosed impeller, interchangeable with OHH | Standard inline OH3-type pump |
| OHVL | Semi-open impeller, interchangeable with OHHL; large impeller-to-diffuser clearance for thermal tolerance | Low-flow, high-head and capacity control duties |
| OHVc / OHVLc | Close-coupled, impeller on motor shaft, API 610 OH5 compliance | Compact and lighter for space-limited installs |
Selection notes
Bearings are interchangeable among all four models and seals are interchangeable among OHH, OHHL, OHV and OHVL, which simplifies spares for plants running several Sulzer API pumps. Larger sizes use a dual volute to reduce radial load. Seal pots and coolers are mounted on separate stands to improve access to the seals and back pull-out assembly. State the pumped liquid, operating and design conditions, NPSH available, material code and driver so the correct size and material class can be selected. More pumps are listed under pumps.
Documents and quotation
The attached Sulzer OHV and OHVL vertical inline pumps brochure (E00698, 3.2026) is a general presentation and not a warranty; confirm hydraulic coverage, materials and API data sheet requirements with the final selection.
Datasheets & Documents
- Brochure Sulzer OHV and OHVL vertical inline pumps brochure (E00698, 3.2026) Download
Reviews (0)
About brand
Pressure sewer systems that discharge through narrow pipe rely on grinder pumps, and the ABS Piranha is the Sulzer answer to that duty. Sulzer has worked in pumps and fluid engineering since 1834 from Winterthur, Switzerland. Seven Star LLC lists the Sulzer ABS Piranha PIR-S21/2 submersible grinder pump and supplies Sulzer pumps and parts to utilities and contractors in Oman.
Sulzer ABS Piranha grinder pump series
The Piranha range is split into the S series, which includes the S21, and the PE series with IE3 motors. In front of the impeller sit a spiral bottom plate, a stationary cutter ring and a shredding rotor that cut cloths and plastic before they reach the hydraulics. The bottom plate is adjustable to take up wear. Versions exist for 50 Hz and 60 Hz, three-phase 400 V and single-phase 230 V supplies.
Ordering Sulzer pumps and spare parts: what we need
Send the full type designation and the serial number from the nameplate, the supply voltage, phase and frequency, the discharge size, and whether an explosion-protected version is required. For cutter or seal parts, the nameplate photo is enough for us to trace the parts list. This applies equally to GCC municipal projects.
Browse Sulzer products by category: Pumps.
