Brand: Roxtec
Roxtec RM Multidiameter Cable and Pipe Seal Modules
Description

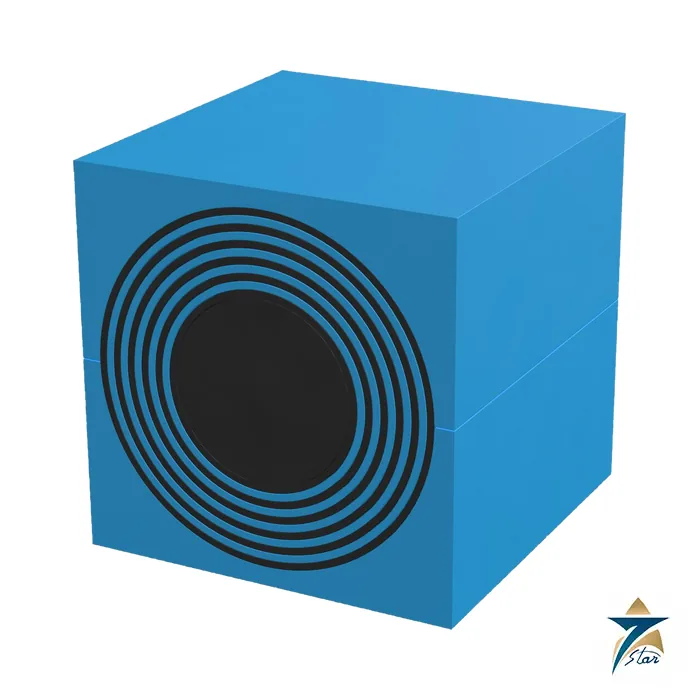

The Roxtec RM Multidiameter module is the sealing insert of the Roxtec transit system: a 60 mm deep, two-halved module with removable layers that adapts to the diameter of the cable or pipe it holds. Modules are stacked in a Roxtec frame together with a stayplate and wedge, and cover cable and pipe outer diameters from 3.0 to 99.0 mm. Fitted with a solid core instead of a cable, the same module is a spare slot for future capacity. This page lists the RM range shown on the Roxtec product page; RM 40 is a typical mid-size module.
Technical specifications
| Parameter | Specification |
|---|---|
| Product | Roxtec RM module with Multidiameter |
| Module depth | 60 mm (2.362 in) |
| Cable or pipe outer diameter | 3.0 to 99.0 mm (0.118 to 3.898 in), depending on module |
| Adaptation | Removable layers peeled to fit the cable or pipe; solid-core version as spare module |
| Number of variants | 16 articles on the Roxtec product page, including WOC (without core) and split-core kit items |
| RM 40 module | 1 cable or pipe, 21.5 to 34.5 mm outer diameter; 40 x 40 x 60 mm; 0.14 kg; Art. No RM00100401000 |
| Used with | Roxtec frame, stayplate, wedge, lubricant and sealing kit components |
| Certificates | Marine approvals listed on the product page include BV, LR, ClassNK and DNV, with A class fire, gas tightness and water tightness (catastrophic); the product page lists certificates by cable and pipe material |
Choosing the module size
Select the module by the outer diameter of the cable or pipe, not by the conductor size, and allow for the actual jacket diameter from the cable data sheet. Roxtec gives each module a range, for example RM 20 for 4 to 14.5 mm and RM 30 for 10 to 25 mm, so mixed-diameter bundles can be placed in the same frame by using different module sizes. The layers inside each module are removed until the module closes with a small gap around the cable; the installation instruction for the openable frame calls for a gap of 0.1 to 1.0 mm between the two halves when held against the cable, and the number of layers in the two halves may not differ by more than one.
Use the lubricant supplied by Roxtec on all sealing surfaces, insert the modules fully to the edge of the frame, and tighten the compression in small steps to the recommended torque. Plan spare capacity at design stage by including solid-core modules, because adding a cable later then needs only a module swap, not a new opening.
RM module sizes
| Module | Cables or pipes | Cable or pipe OD mm | WxHxD mm | Weight kg | Art. No |
|---|---|---|---|---|---|
| RM 15 | 1 | 3 – 11 | 15 x 15 x 60 | 0.02 | RM00100151000 |
| RM 20 | 1 | 4 – 14.5 | 20 x 20 x 60 | 0.04 | RM00100201000 |
| RM 20w40 | 2 | 3.5 – 16.5 | 40 x 20 x 60 | 0.07 | RM00120401000 |
| RM 30 | 1 | 10 – 25 | 30 x 30 x 60 | 0.08 | RM00100301000 |
| RM 40 | 1 | 21.5 – 34.5 | 40 x 40 x 60 | 0.14 | RM00100401000 |
| RM 60 | 1 | 28 – 54 | 60 x 60 x 60 | 0.32 | RM00100601000 |
| RM 80 | 1 | 48 – 71 | 80 x 80 x 60 | 0.56 | 5RM0000003350 |
| RM 120 WOC | 1 | 67.5 – 99 | 120 x 120 x 60 | 0.94 | RM00001201000 |
Documents and quotation
The Roxtec catalogue for the power and process industries is attached, showing frame and module combinations. Seven Star LLC supplies Roxtec seals in Oman against the Roxtec article number. Send the cable schedule with outer diameters, the frame type, the wall or enclosure type and any Ex, fire or bonding requirement. Cable glands for single entries are in the cable accessories category, for example the CMP A2F gland.
Datasheets & Documents
- Catalogue Roxtec cable and pipe seals for the power and process industries, catalogue (PDF) Download
Reviews (0)
About brand
Roxtec is a Swedish developer and manufacturer of cable and pipe sealing systems, founded in 1990 in Karlskrona, Sweden. Its Multidiameter modules with removable layers fit cables and pipes of many sizes, and are installed in frames in cabinets, walls, decks and floors to seal against fire, water, gas, dust, pests and electromagnetic threats.
Roxtec transit system
A transit combines a frame, sealing modules, a stayplate, a wedge and lubricant. Frames such as CF 16, HD and FlamePlus attach by bolting or welding, modules can hold spare capacity with solid cores, and versions exist for hazardous areas, bonding and grounding, and fire protection. Each product has a product page with variant tables, drawings, installation instructions and certificates.
Supply from Seven Star LLC
Seven Star LLC, an independent supplier in Muscat, sources Roxtec seals against the Roxtec article number and provides the available documents with each quotation. Send the cable schedule with outer diameters, the frame type, and the wall or enclosure construction.
Related products
Frequently Asked Questions
What is a Roxtec Multidiameter module?
A two-halved rubber module with removable layers that is adapted to the cable or pipe size by peeling layers, so one module size covers a diameter range.
What range of cable diameters do RM modules cover?
Roxtec lists 3.0 to 99.0 mm outer diameter across the RM range.
Can a module be used as a spare?
Yes. Fitted with a solid core, the module works as a spare module for future capacity.
How deep are RM modules?
60 mm (2.362 inches).
What else is needed besides the module?
A Roxtec frame, with stayplate, wedge and lubricant, which together form the complete sealing solution.
